Shelly Wall Display XL
Shelly Wall Display XL
Couldn't load pickup availability
Shelly Wall Display XL
Typically used for:
- Centralized smart home management
- Commercial and hospitality control hubs
- Advanced Home Assistant & Shelly Cloud Dashboards

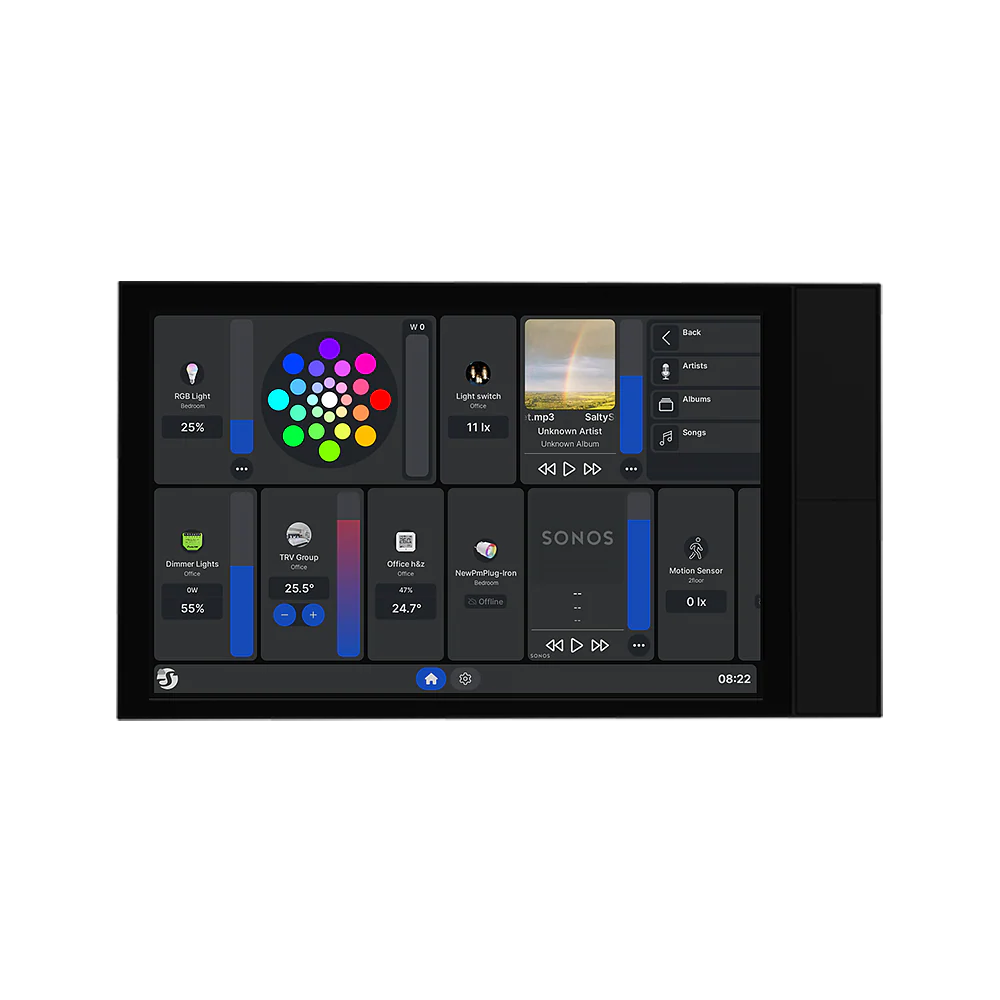

The Shelly Wall Display XL is a high-performance 10.1-inch smart home control panel designed to serve as the ultimate central hub for monitoring and automation. Featuring a crisp HD touchscreen with 1280x752p resolution, it provides an expansive interface for managing all your Shelly devices, scenes, and custom dashboards. Powered by a Rockchip RK3566 quad-core processor and Dual-Band Wi-Fi 6, the XL offers a lightning-fast, responsive user experience. It features four fully customizable physical buttons for instant access to common actions and an integrated 5 A relay for direct appliance control (up to 1500W). With built-in dual 2W stereo speakers and a four-microphone array, it also supports audio notifications and media control. Available in Black or Grey to suit any modern home or commercial environment.
- Large 10.1" responsive HD 5-point capacitive color touchscreen
- 4 customizable physical buttons for quick actions and scene triggering
- Integrated 5 A relay for direct appliance control (neutral required)
- Advanced Wi-Fi 6 (Dual Band 2.4/5 GHz) and Bluetooth 5.4 connectivity
- On-board sensors: Light (LUX) and Proximity (≤1m)
- Integrated dual 2W speakers and four-microphone line array
- Android 11 OS with Rockchip RK3566 Quad-core CPU, 2GB RAM, and 32GB Flash
- Dual power options: 100-240 VAC mains or 5 V USB-C (3 A)
Transform your space with the Shelly Wall Display XL, offering a unified control center that replaces multiple manual switches. The device allows for real-time room-level power consumption monitoring of connected Shelly PM devices and seamless integration with Home Assistant or MQTT ecosystems. Whether mounted in a residential apartment or a commercial lobby, its sleek glass and metal design makes smart living more intuitive than ever.
| PHYSICAL | |
|---|---|
| Physical Specs: | Length: 27.25 (cm) Width: 15.58 (cm) Height: 3.83 (cm) Weight: 0.92 (kg) |
| Mounting: | Wall box (EU standard) |
| Shell material: | Metal stamping, PC with coating, glass |
| Color: | Black / Grey |
| ENVIRONMENTAL | |
| Ambient temperature: | -20 °C to 40 °C |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m |
| ELECTRICAL | |
| Power supply: | 100-240 VAC, 50/60 Hz / 5 V USB-C (3 A) |
| Power consumption: | < 15 W |
| OUTPUT CIRCUITS RATINGS | |
| Max switching current AC: | 5 A |
| SENSORS & FEATURES | |
| Built-in Sensors: | Light (LUX), Proximity (≤1m) |
| Audio: | Dual 2W Speakers & 4-Microphone array |
| RADIO | |
| Wi-Fi protocol: | Wi-Fi 6 Dual Band (2.4 / 5 GHz) |
| Bluetooth Protocol: | 5.4 |
| Range: | Up to 30 m indoors and 50 m outdoors |
Max Load is the Maximum rated Load and it is not recommended that this device is used for anything more than short duration at or near the Maximum.
Higher loads require sufficient allowance for excess heat.
Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
