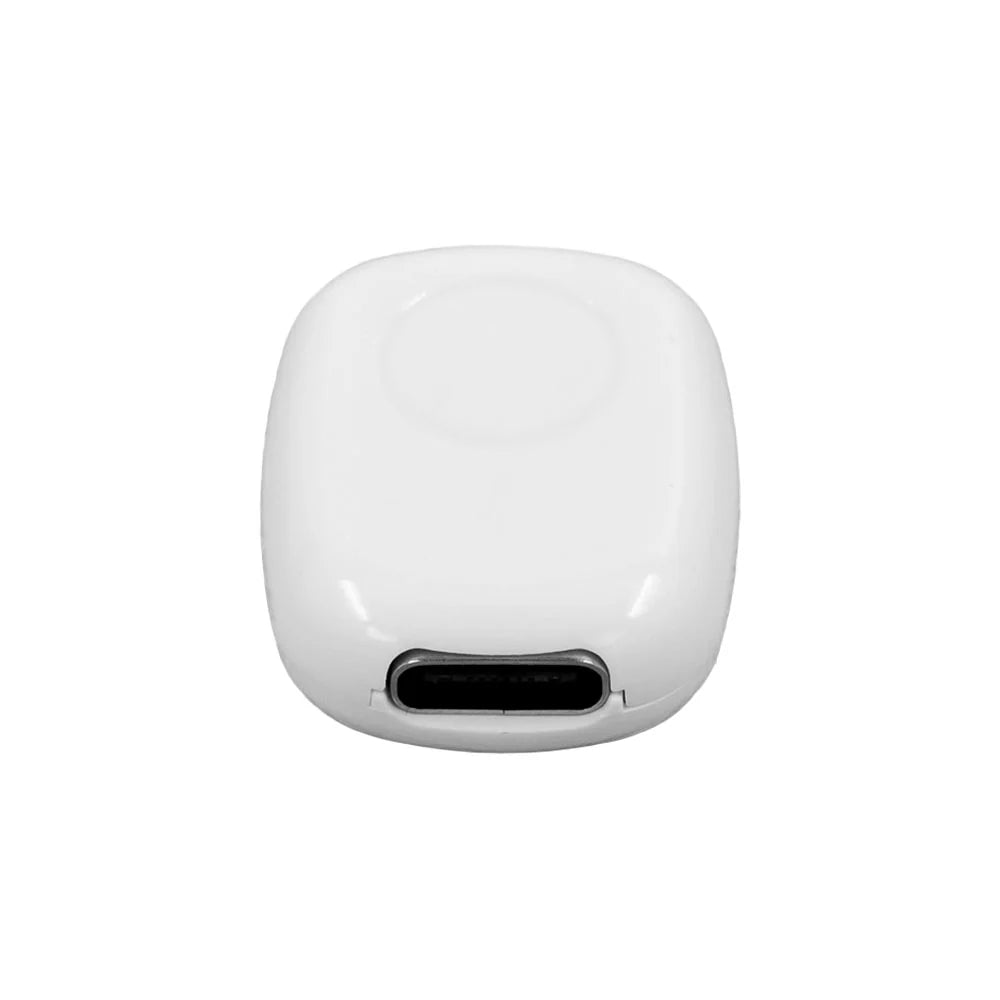

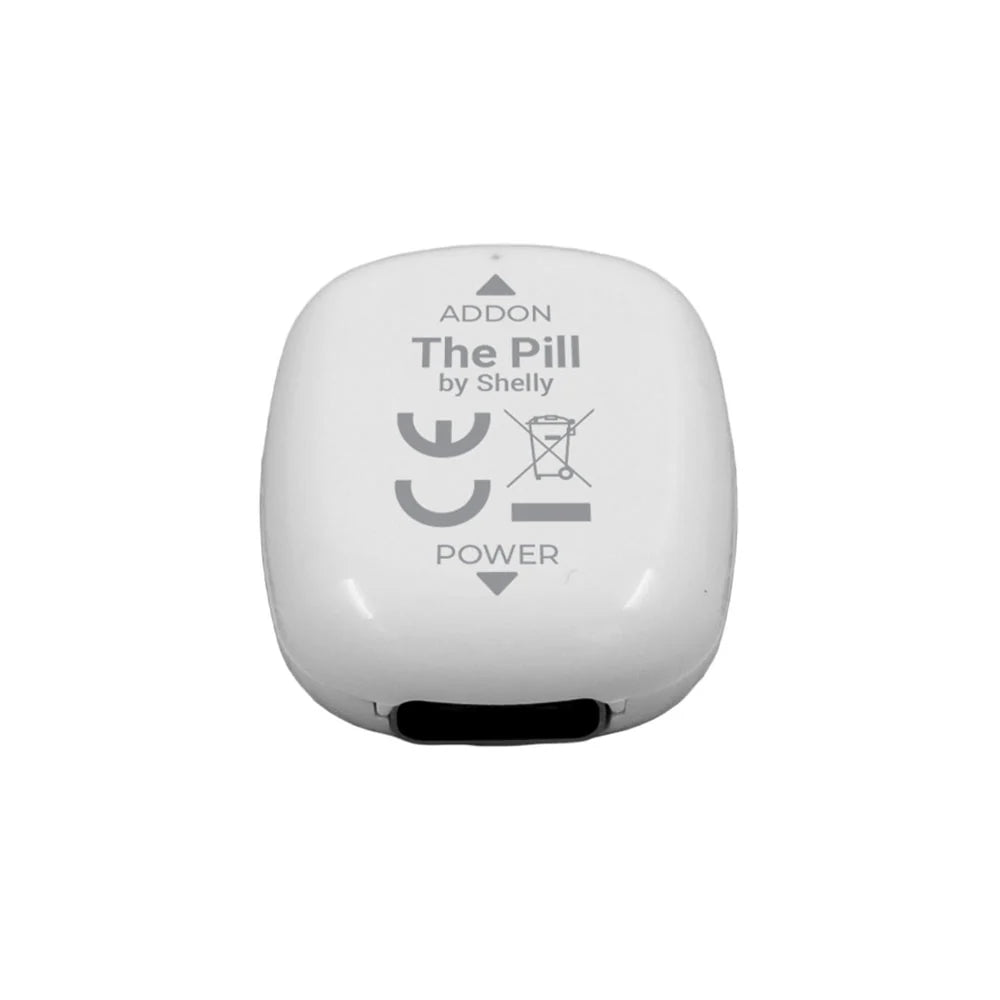

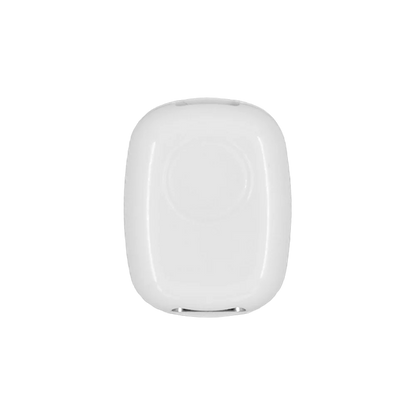

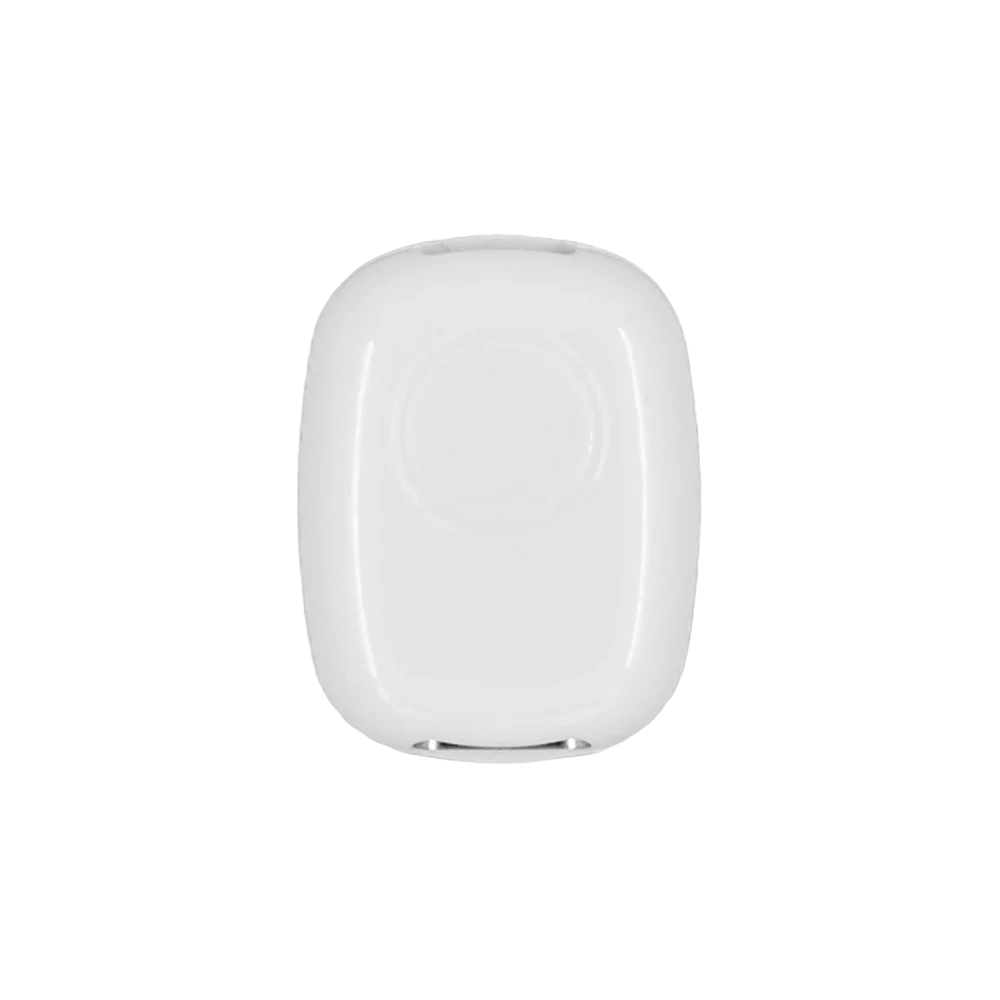

Shelly The Pill
Shelly The Pill
Couldn't load pickup availability
Typically used for:
- Water & Pool Temperature Tracking
- Server Cabinet & Greenhouse Climate Monitoring
- Battery & DC Voltage Monitoring
- Low-Voltage Actuators & Digital Sensor Readings
Bring smart automation and precision tracking exactly where nothing else can fit with The Pill by Shelly. An ultra-compact, low-voltage Wi-Fi and Bluetooth device powered via a convenient 5 V USB-C interface, it functions as a versatile data bridge and multi-purpose sensor reader. Perfect for monitoring tight or space-constrained environments, it seamlessly connects specialized low-voltage peripherals and external analog or digital sensors straight to your automation eco-system.
With plug-and-play setup, you can immediately monitor environment parameters or utilize it as a local Bluetooth Gateway to strengthen connection signals for nearby Shelly BLU devices across your smart property.
Key Features:
- Ultra-Compact Profile: Measuring at an astonishingly small size, it mounts effortlessly inside equipment housings, behind panels, or inside custom enclosures.

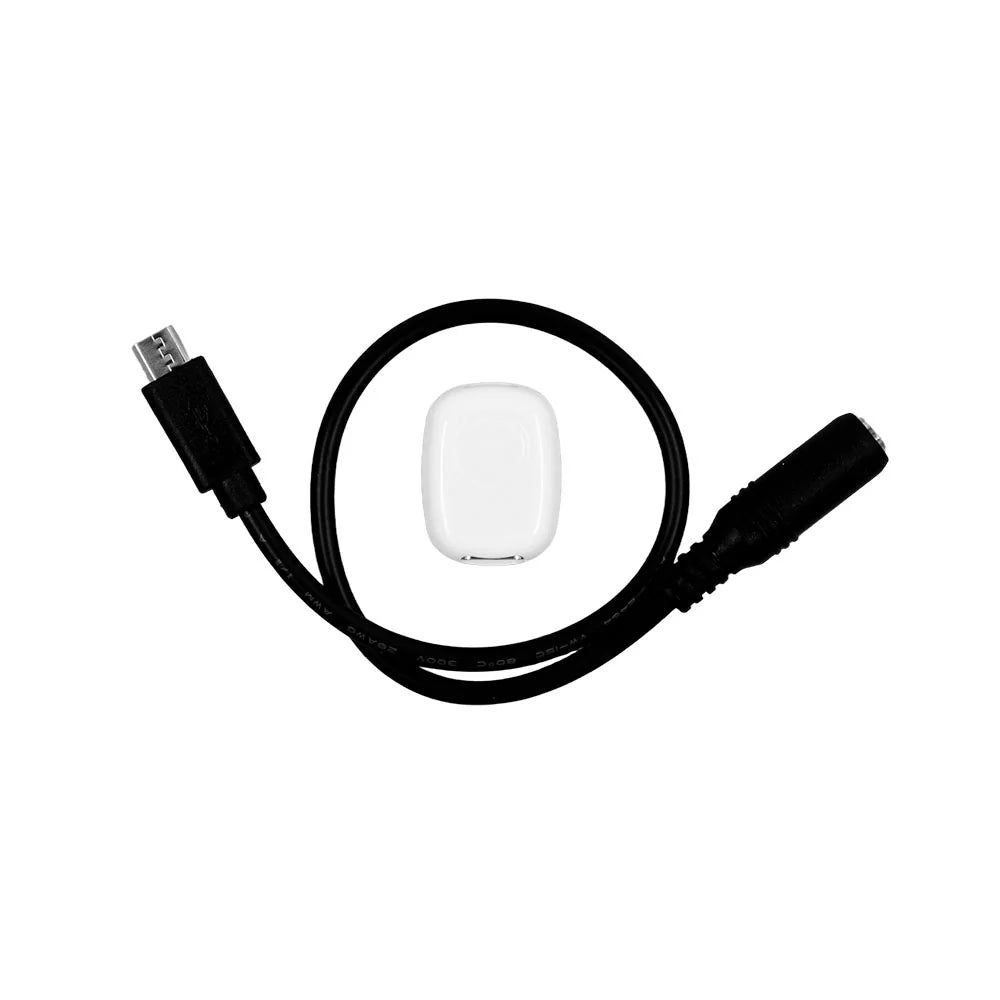

- Plug-and-Play Temperature Tracking: Supports a single DHT22 temperature and humidity sensor or up to five DS18B20 temperature probes simultaneously via a standard 3.5 mm jack connection.
- Configurable Peripheral Modes: Offers up to three independent 3.3 V logic-level digital inputs or outputs for system interfacing and low-voltage control.
- Built-In DC Voltmeter: Features an integrated analog input for high-precision 0 to 2.5 V DC measurement, expandable to 30 V with an external add-on.
- Shelly Gen3 Functionality: Equipped with an advanced ESP-Shelly-C38F processor supporting local actions, custom scripting, scheduling, and virtual components.
- Modular Add-on Compatibility: Easily pair with specialized external extensions like the 5-Terminal Add-on, Analog 0-30 V Add-on, or Solid State Relay (SSR) Add-on for expanded low-voltage actuator management.
Specifications
|
Physical |
|
|
Size (HxWxD): |
26x19.95x8.5 mm |
|
Weight: |
3 g |
|
Shell material: |
Plastic |
|
Shell color: |
White |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 m |
|
Electrical |
|
|
Power supply: |
5 V⎓ (via USB Type-C port) |
|
Power consumption: |
< 1 W (peaks up to 5 W) |
|
Input/Output ratings |
|
|
I/O logic level: |
3.3 V⎓ |
|
Digital inputs: |
Active LOW (Low: < 0.83 V, High: > 2.48 V); max. voltage 3.3 V |
|
Digital outputs: |
3.3 V⎓ (max. current: 20 mA) |
|
Sensors, meters |
|
|
Voltmeter (DC): |
0 to 2.5 V⎓ built-in (accuracy: ±(2% + 5d)); up to 30 V⎓ with external Add-on |
|
External sensors supported: |
1 x DHT22 or up to 5 x DS18B20 temperature probes |
|
Radio |
|
|
Wi-Fi |
|
|
Protocol: |
802.11 b/g/n |
|
RF band: |
2401 - 2483 MHz |
|
Max. RF power: |
< 20 dBm |
|
Range: |
Up to 50 m outdoors and 30 m indoors (depending on local conditions) |
|
Bluetooth |
|
|
Protocol: |
BLE 4.2 |
|
RF band: |
2402 - 2480 MHz |
|
Max. RF power: |
< 10 dBm |
|
Range: |
Up to 30 m outdoors and 10 m indoors (depending on local conditions) |
|
Microcontroller unit |
|
|
CPU: |
ESP-Shelly-C38F |
|
Flash: |
8 MB |
|
Firmware capabilities |
|
|
Schedules: |
20 |
|
Webhooks (URL actions): |
20 with 5 URLs per hook |
|
Scripting: |
Yes |
|
MQTT: |
Yes |
Designed strictly for low-voltage sensor monitoring and actuator environments. Do not connect directly to high-voltage mains circuits.
Australia and New Zealand Safety Standard (AS/NZS) compliant. SDoCs are available upon request for declared articles sold by Lykalyte. Some components and non-declared products may not require SDoCs under NZ regulations.
