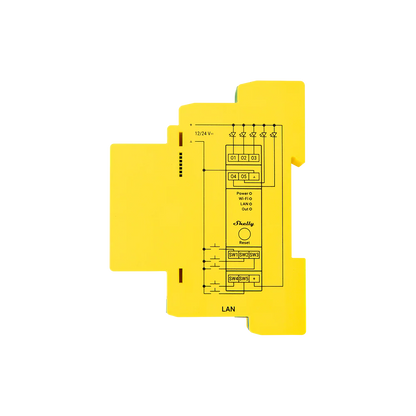

Shelly Pro RGBWW PM
Shelly Pro RGBWW PM
Couldn't load pickup availability
Typically used for:
- DIN-Rail Commercial & Residential Low-Voltage LED Lighting Control
- 5-Channel RGBWW LED Strip Color & Temperature Tuning
- In-Board LED Circuit Energy Consumption Tracking
- Automated Scene, Architectural & Ambient Lighting Systems

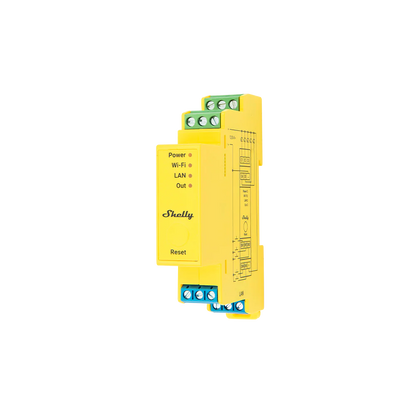

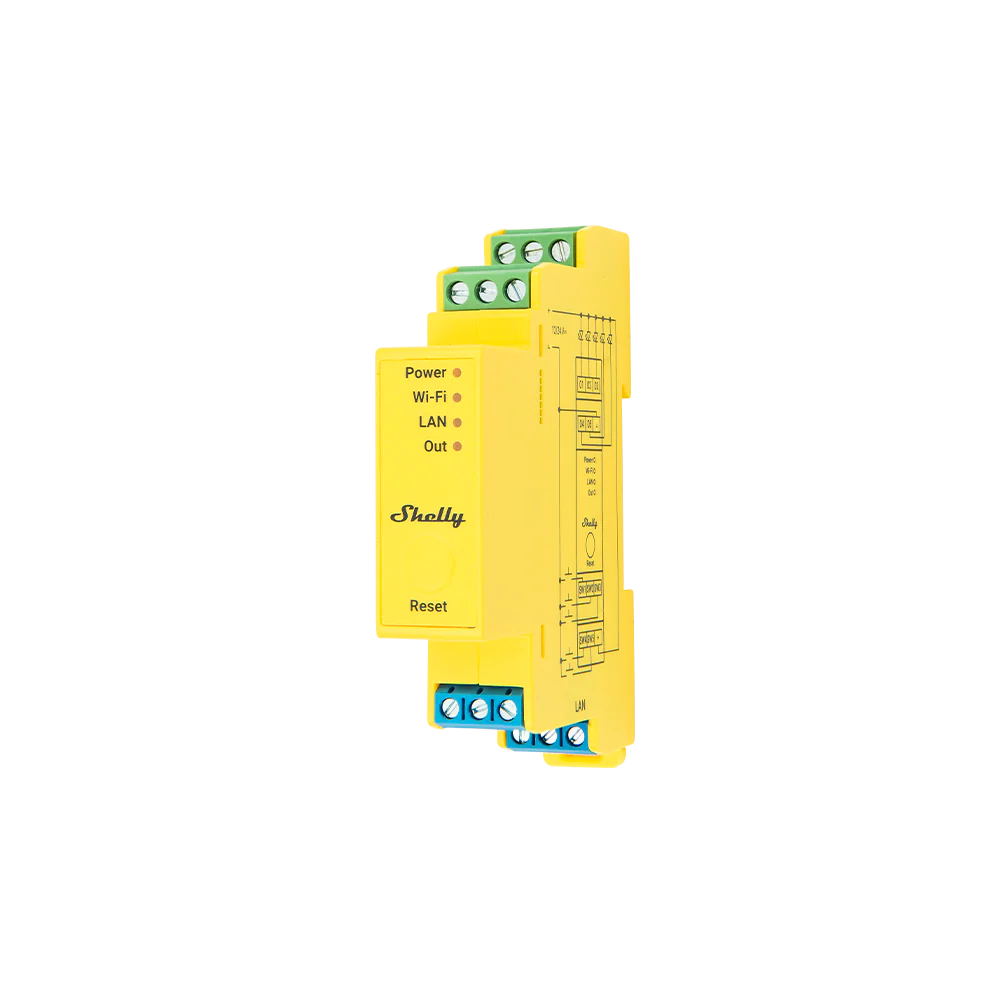

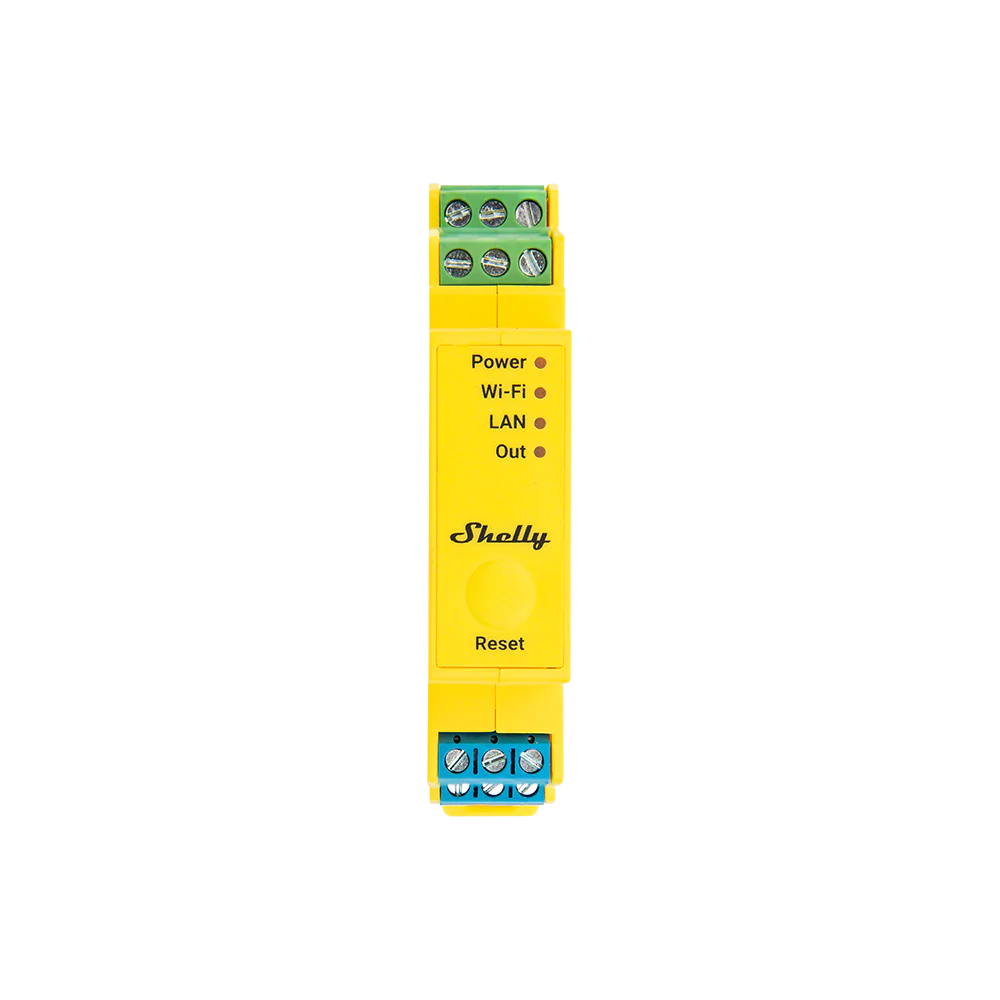

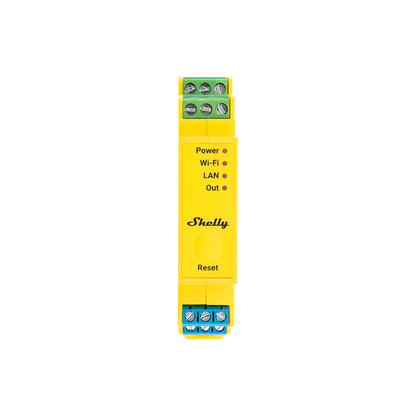

Bring professional-grade, multi-channel LED control directly to your switchboard with the Shelly Pro RGBWW PM. Designed for standard DIN-rail mounting inside distribution boards, this professional 5-channel low-voltage smart controller enables precise dimming, color mixing, and white spectrum tuning for RGB, RGBW, RGBWW, and monochromatic LED lighting installations.
Operating over 12V to 24V DC systems, it integrates real-time power measurement across all active channels, allowing you to track precise energy usage for low-voltage lighting circuits. Equipped with LAN (Ethernet), Wi-Fi, and Bluetooth connectivity, it provides robust, latency-free automation capability for high-end residential, hospitality, and commercial building management systems.
Key Features:

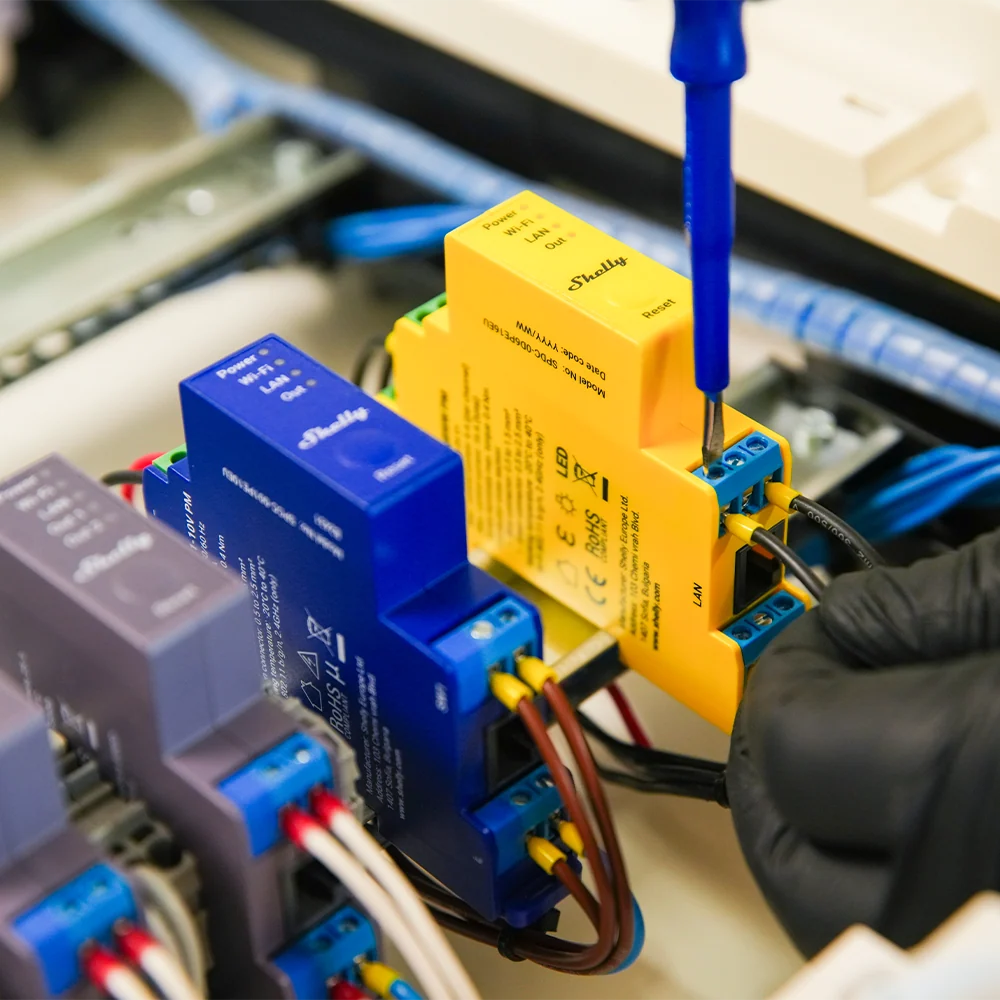

- Professional DIN-Rail Form Factor: Fits neatly into distribution enclosures, reducing clutter behind wall boxes and organizing low-voltage LED drivers at the board.

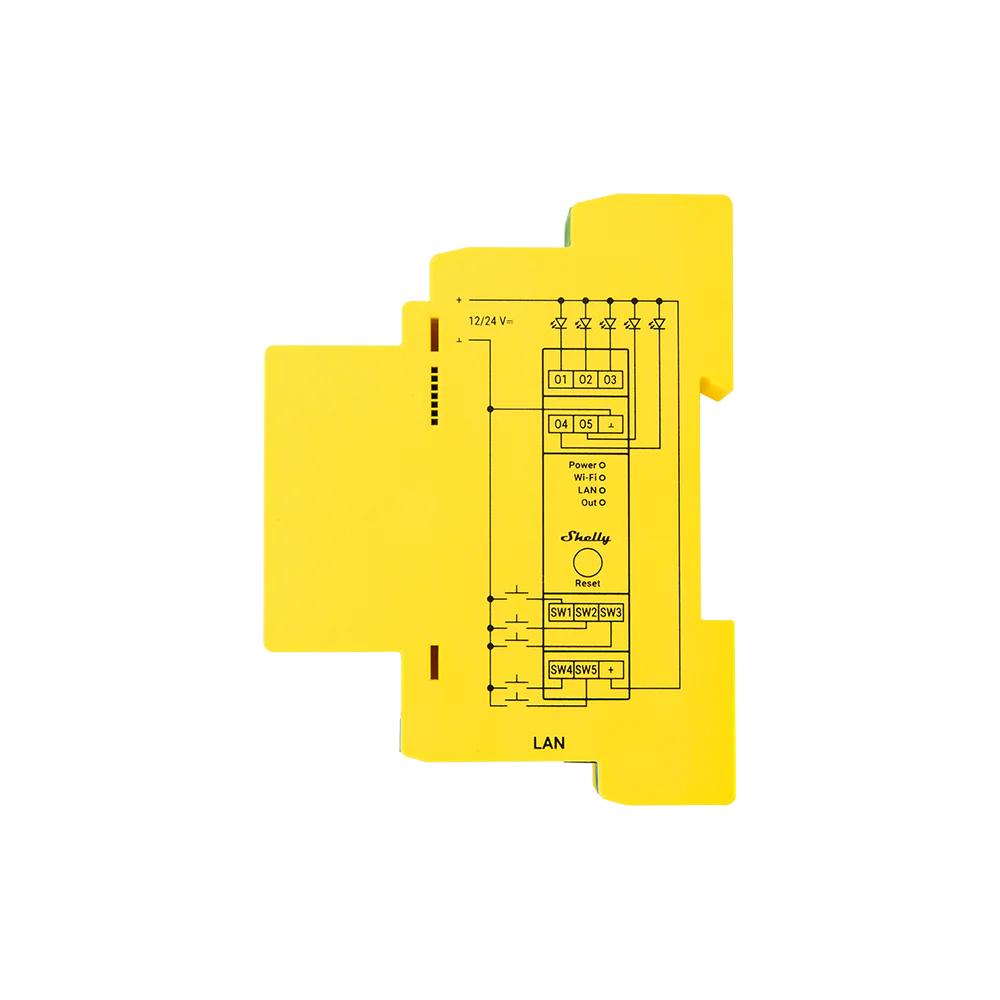

- 5 PWM Output Channels: Supports multiple operational modes including 5x Single White, 1x RGB + 2x White, 1x RGBW + 1x White, or 1x RGBWW mode.
- Integrated Power Measurement: Features individual power monitoring (PM) to track real-time power consumption across connected LED loads.
- Triple Network Connectivity: Built-in RJ45 LAN port, Wi-Fi 802.11 b/g/n, and Bluetooth 4.2 allow rock-solid local control and network redundancy.
- Advanced Scripting & Safety: Powered by an ESP32 CPU supporting custom mJS scripting, local schedules, webhooks, over-temperature, over-current, and over-voltage protection.

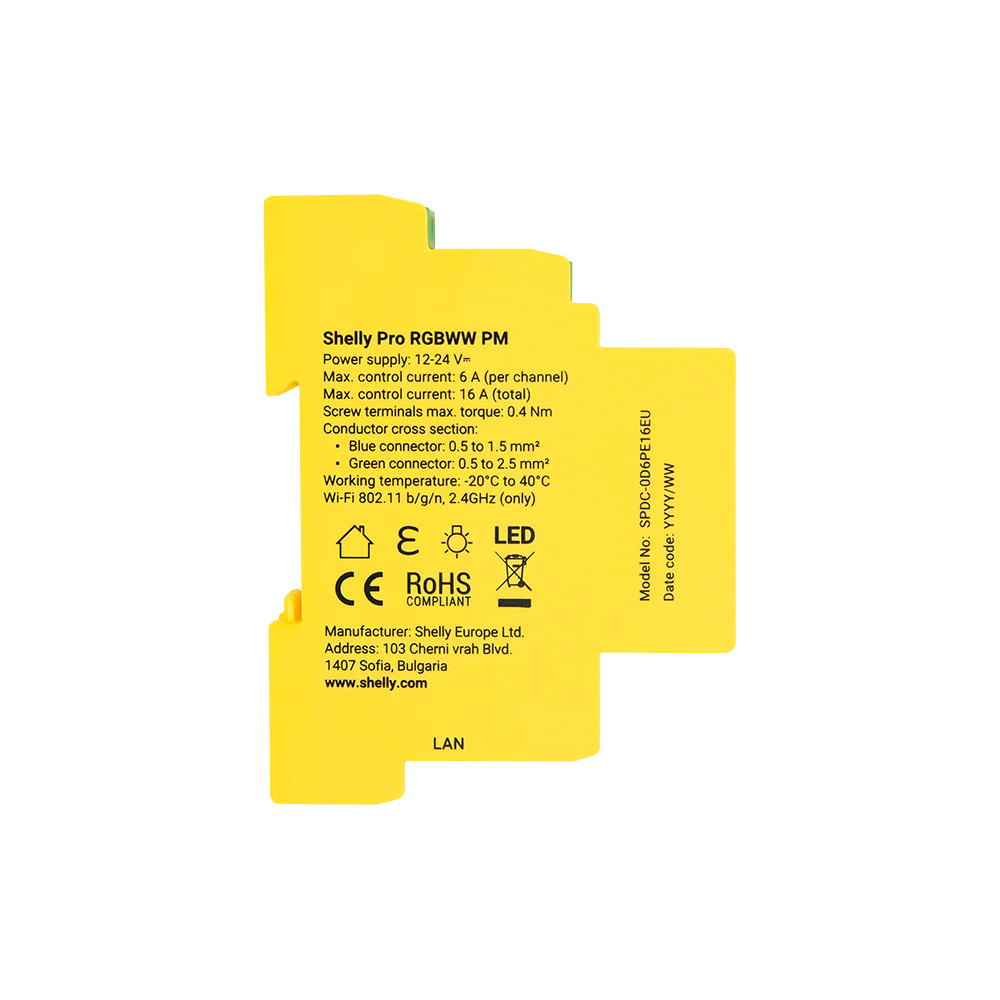

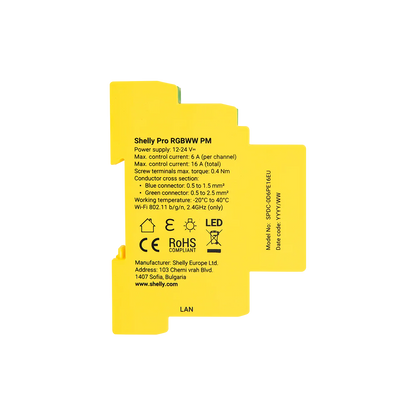

Specifications
|
Physical |
|
|
Size (HxWxD): |
94x19x69 mm (±0.5 mm) [1 DIN unit] |
|
Weight: |
65 g |
|
Mounting: |
DIN rail |
|
Screw terminals max torque: |
0.4 Nm |
|
Conductor cross section: |
0.5 to 2.5 mm² (20 to 14 AWG) |
|
Conductor stripped length: |
6 to 7 mm |
|
Shell material: |
Plastic |
|
Shell color: |
Black |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 m |
|
Electrical & Load Ratings |
|
|
Power supply: |
12 - 24 V DC |
|
Power consumption: |
< 1.2 W |
|
Max. output voltage: |
24 V DC |
|
Max. current per channel: |
4 A (at 12V / 24V DC) |
|
Max. total output current: |
16 A (across all 5 channels combined) |
|
PWM frequency: |
1 kHz |
|
Sensors, Meters & Protection |
|
|
Power measurement (PM): |
Yes |
|
Internal temperature sensor: |
Yes |
|
Over-current protection: |
Yes |
|
Over-voltage protection: |
Yes |
|
Radio & Connectivity |
|
|
LAN (Ethernet): |
Yes (RJ45 port) |
|
Wi-Fi protocol: |
802.11 b/g/n (2.4 GHz) |
|
Wi-Fi range: |
Up to 50 m outdoors and 30 m indoors (depending on local conditions) |
|
Bluetooth protocol: |
4.2 |
|
Bluetooth range: |
Up to 30 m outdoors and 10 m indoors (depending on local conditions) |
|
Microcontroller Unit & Firmware |
|
|
CPU / Flash memory: |
ESP32 | 8 MB Flash |
|
Schedules: |
20 |
|
Webhooks (URL actions): |
20 with 5 URLs per hook |
|
Scripting support: |
Yes (mJS scripting engine) |
|
MQTT support: |
Yes |
*NOTICE! This unit requires a suitable 12V or 24V DC external LED power supply (driver). Do not connect this device directly to AC mains (110-240V AC) power. Ensure total combined current across all 5 channels does not exceed 16A.
Australia and New Zealand Safety Standard (AS/NZS) compliant. SDoCs are available upon request for declared articles sold by Lykalyte. Some components and non-declared products may not require SDoCs under NZ regulations.
