Shelly Pro Dual Cover PM
Shelly Pro Dual Cover PM
Regular price
$297.99
Regular price
Sale price
$297.99
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Discover the ultimate power of Shelly Pro Dual Cover PM, a professional DIN rail smart controller with dual cover and shutter function. Monitor and control your energy usage with ease and efficiency.

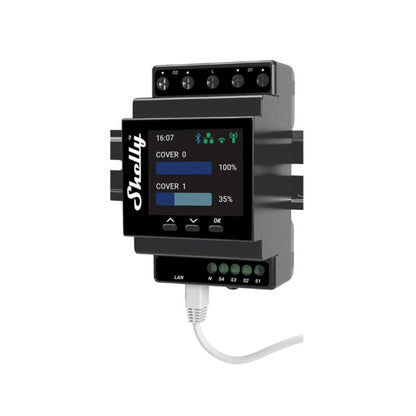

Professional DIN rail smart dual cover/shutter controller with power metering capabilities
- LAN, Wi-Fi, and Bluetooth connection
- 2 covers/shutters, 16 A each
- Power metering on each cover and free storage data
- Cover (roller) control - roller shutters, awnings, gates, barriers, sliding doors, curtains, garage doors, bi-directional AC motors
- Single-phase control
- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
Specifications
| Physical | |
|---|---|
| Size (HxWxD): | 96x53x59 ±0.02 mm |
| Weight: | 0.150kg |
| Mounting: | DIN rail |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin (green connectors) |
| Conductor cross section: | 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) |
| Conductor stripped length: | 6 to 7 mm (green connectors) |
| Shell material: | Plastic |
| Color: | Black |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m |
| Electrical | |
| Power supply voltage AC: | 110 - 240 V |
| Power supply voltage DC: | N/A |
| Power consumption: | < 3 W |
| Neutral not needed: | No |
| Output circuits ratings | |
| Controlled motor max. power: | • 1.0 HP @ 240 VAC, • 0.5 HP @ 120 VAC |
| Sensors, meters | |
| Voltmeter (AC): | Yes |
| Ammeter (AC): | Yes |
| Temperature sensor: | Yes |
| Radio | |
| RF band: | 2400 - 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m and 50 m (Depends on local conditions) |
| Bluetooth Protocol: | 4.2 |
| Bluetooth Range: | Up to 10 m indoors and 30 m outdoors (Depends on local conditions) |
| MCU | |
| CPU: | ESP32-D0WDQ6 |
| Flash: | 8 MB |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | mJS |
| MQTT: | Yes |
| CoAP: | No |
Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
