Shelly Pro Dimmer 1PM
Shelly Pro Dimmer 1PM
Regular price
$169.99
Regular price
Sale price
$169.99
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

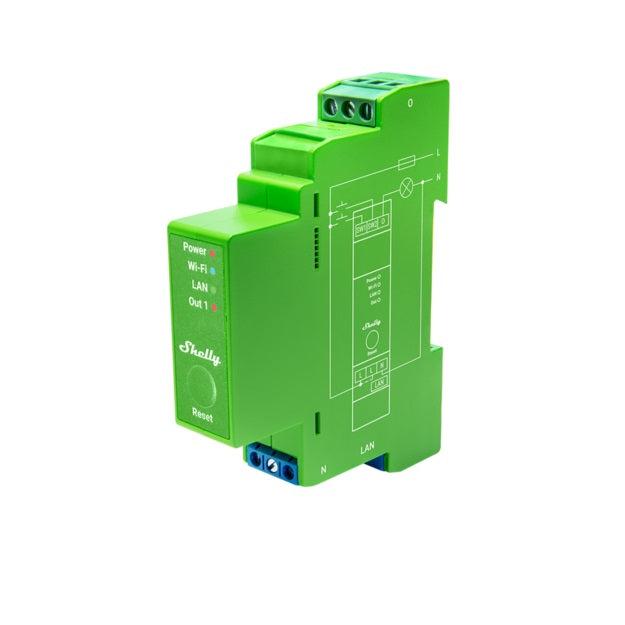

Professional 1-channel DIN rail smart dimmer with power monitoring
Upgrade your home or business lighting with the Shelly Pro Dimmer 1PM. This smart dimmer offers power monitoring and can control and dim a variety of lights and transformers. Set up actions, scenarios, and schedules to optimize your lighting for daily routines or business operations.
- LAN, Wi-Fi, and Bluetooth connection
- Power metering
- Free storage data (using Shelly App)
- Night mode for lower brightness during night hours
- Automatic dimming calibration
- Switch/button input mode
- Use with your existing switches (one/dual button control)
- Adjustable min/max brightness
- Adjustable button fade rate and transition time
- No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform
- Wi-Fi Range Extender & BLE Gateway
- Extremely fast processor for immediate reaction - ESP32
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
- Supports KNXnet / IP communication
Specifications
| PHYSICAL | |
|---|---|
| Dimensions (LxWxH) | 94x19x69 mm |
| Weight | 75 g |
| Ambient temperature | -20 °C to 40 °C |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m |
| Screw terminals max torque | 0.4 Nm |
| Conductor cross section | 0.5 to 2.5 mm2 / 20 to 14 AWG (green connectors) - 0.5 to 1.5 mm2 / 20 to 16 AWG (blue connector) (solid, strand-ed, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm (green connectors) - 5 to 6 mm (blue connector) |
| Power supply | 110-240 V~ 50/60 Hz |
| Power consumption | < 2 W |
| External protection | max. 10 A, tripping characteristic B or C,6 kA interrupting rating, energy limiting class 3 |
| Supported load types | |
| HV LED lamps (Dimmable) | 200 W |
| Dimmable electronic transformers | 200 W |
| Incandescent Light bulbs | 200 W |
| HV halogen lamp | 200 W |
| Iron-core transformer | 200 VA |
| Dimming type | Trailing edge |
| RF band | 2400 - 2495 MHz |
| Max. RF power | < 20 dBm |
| Wi-Fi protocol | 802.11 b/g/n |
| Wi-Fi operational range (depending on local conditions) | up to 50 m outdoors up to 30 m indoors |
| Bluetooth protocol | 4.2 |
| Bluetooth operational range (depending on local conditions) | up to 30 m outdoors up to 10 m indoors |
| CPU | ESP32-D0WDQ6 |
| Flash | 8 MB |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | Yes |
| MQTT | Yes |
Max Load is the Maximum rated Load and it is not recommended that this device is used for anything more than short duration at or near the Maximum.
Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
