Shelly PM Mini Gen3
Shelly PM Mini Gen3
Couldn't load pickup availability
Shelly PM Mini Gen3
Typically used for:
- Power consumption monitoring
- Energy efficiency optimization
- Appliance health checks

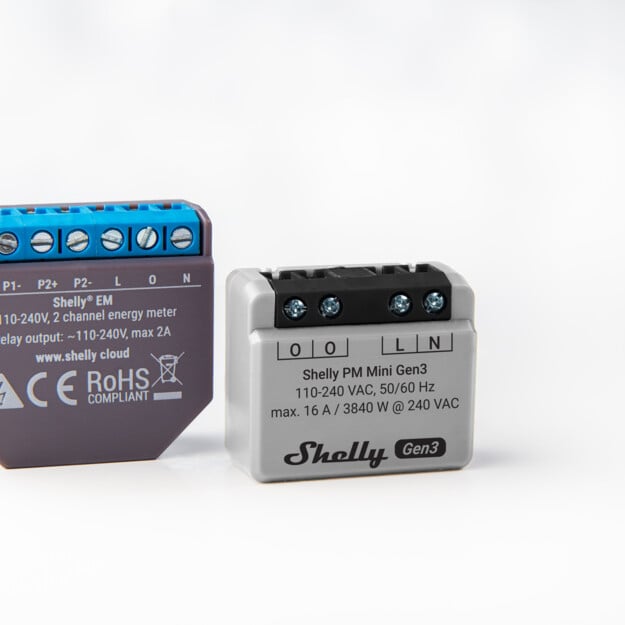

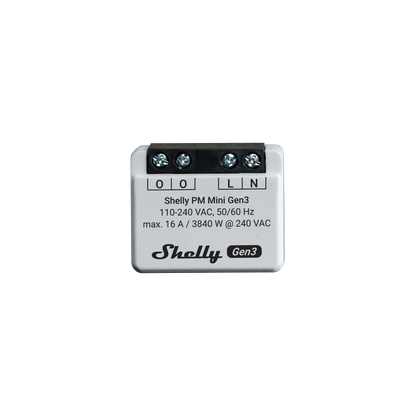

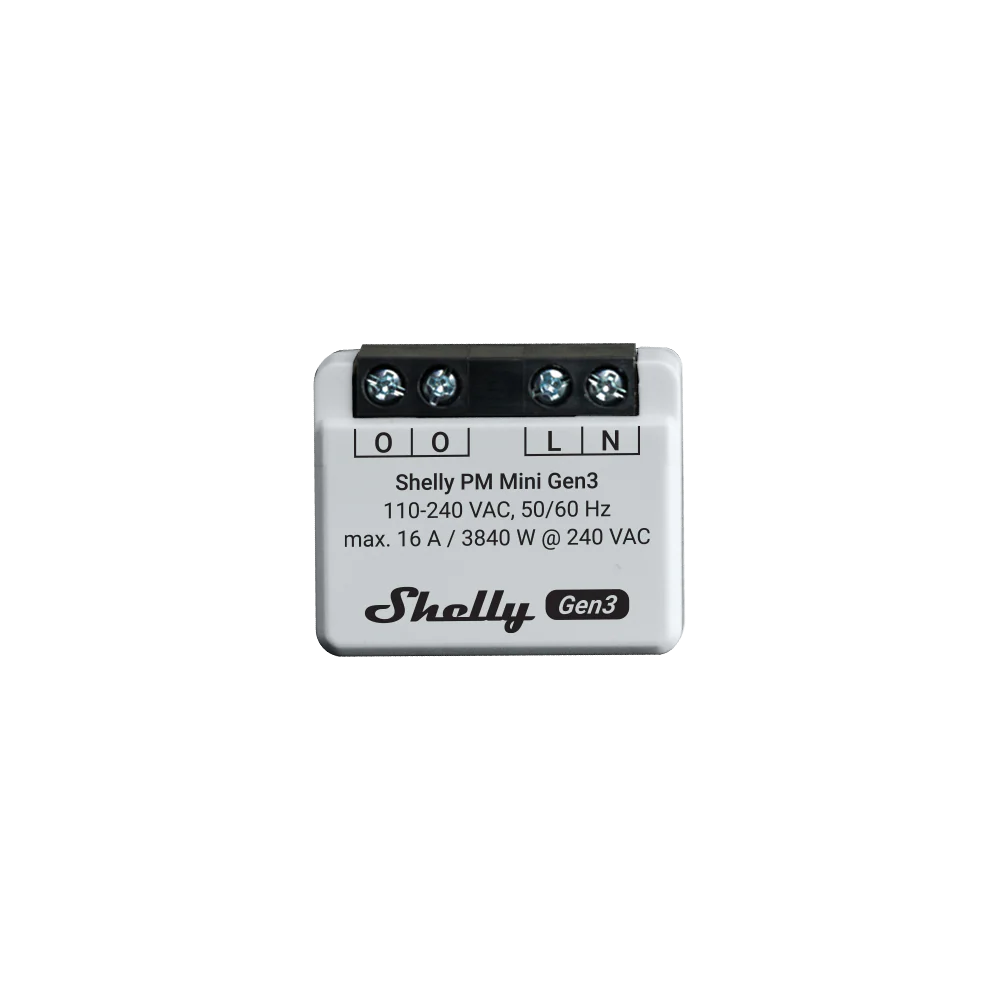

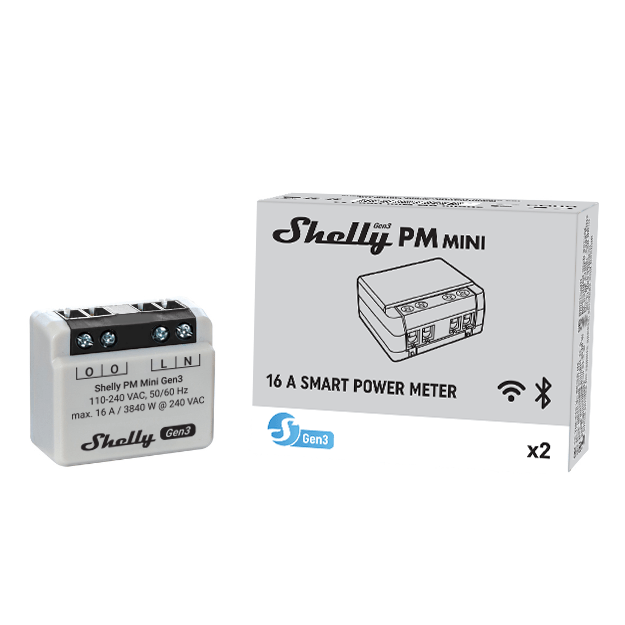

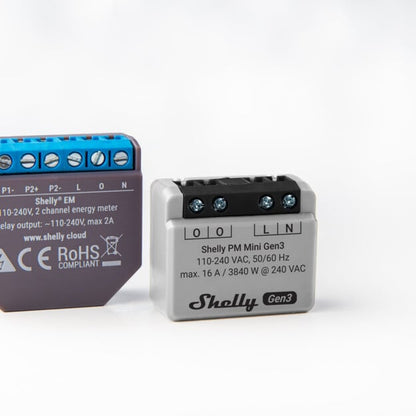

The Shelly PM Mini Gen3 is a small form factor power meter designed to monitor the power consumption of connected devices. As the world's smallest Wi-Fi smart power meter, it can be easily retrofitted into standard electrical wall boxes, behind power sockets, or in other confined spaces, allowing for precise power monitoring up to 16A.
Equipped with a new Shelly chip and all the Gen3 features, this device provides a seamless and reliable solution for energy management. It can work as a standalone unit on a local Wi-Fi network or be integrated with cloud-based home automation services.
Key Features:
-
Precise Power Metering: Monitors the power consumption of connected devices in real-time.
-
Compact & Retrofittable: Small size makes it ideal for installation in tight spaces like behind wall switches and sockets.
-
Wi-Fi & Bluetooth Connectivity: Operates on Wi-Fi with no hub required and includes Bluetooth for quick device inclusion.
-
Enhanced Performance: Features a new processor and 8MB of flash memory for improved responsiveness.
-
Flexible Control: Can be controlled via the Shelly Smart Control app, an embedded web interface, or integrated with platforms like Google Home and Home Assistant.
-
Advanced Automation: Supports scripting, webhooks, and schedules to create customized energy-saving scenarios.
- No Relays or Switching: This device is for power monitoring only; it does not have relay or switching capabilities.
Specifications
|
Physical |
|
|
Size (H x W x D): |
Length: 34 (mm) Width: 29 (mm) Height: 16 (mm) |
|
Weight: |
Weight: 13 (g) |
|
Mounting: |
Wall box |
|
Electrical |
|
|
Power supply: |
110-240 V~ 50/60 Hz AC |
|
Power consumption: |
< 1.2 W |
|
Max. measurement current: |
16 A |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C |
|
Radio |
|
|
Wi-Fi |
|
|
Protocol: |
802.11 b/g/n |
|
Range: |
Up to 30 m indoors and 50 m outdoors |
|
Bluetooth |
|
|
Protocol: |
4.2 with BLE |
|
Range: |
Up to 10 m indoors and 30 m outdoors |
Max Load is the Maximum rated Load and it is not recommended that this device is used for anything more than short duration at or near the Maximum.
Higher loads require sufficient allowance for excess heat.
Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
