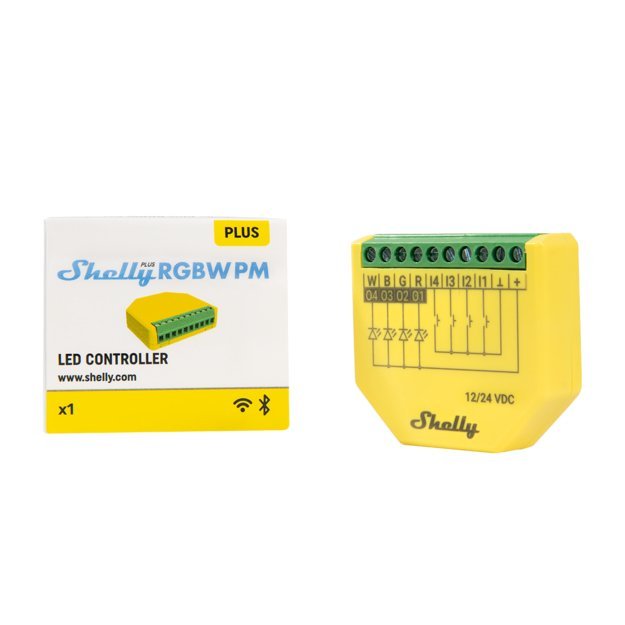

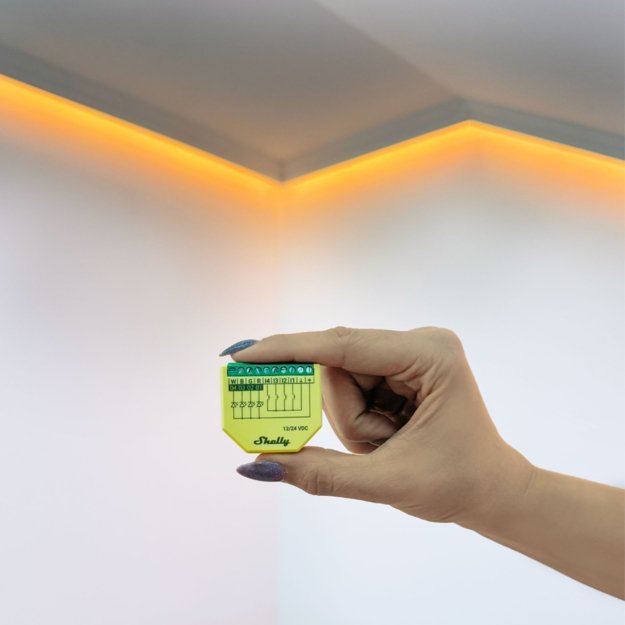

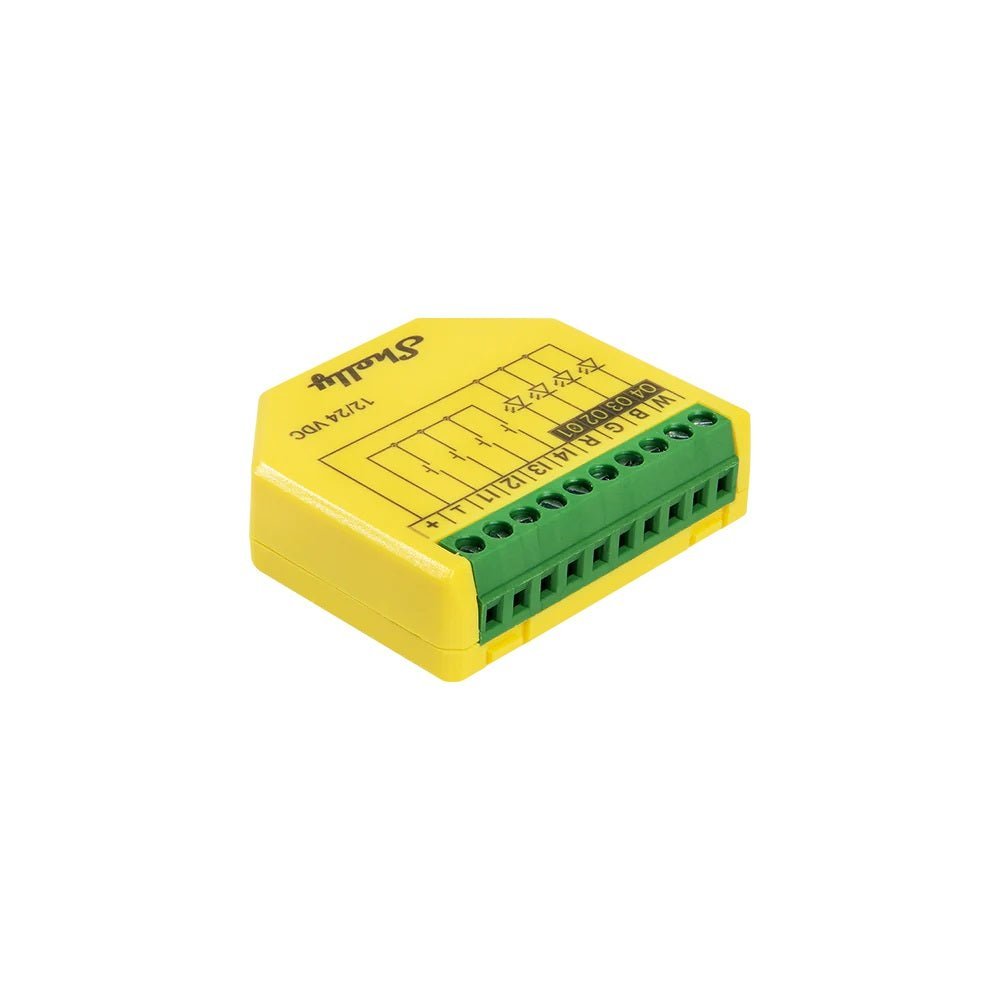

Shelly Plus RGBW PM

Shelly Plus RGBW PM

Regular price $69.99
Regular price Sale price $69.99
Sale Sold out
Tax included. Shipping calculated at checkout.

Wi-Fi operated RGBW controller for LED strips

This compact and versatile controller allows for easy management of LED strips. Offering support for RGBW, RGB, and Light profiles, it provides unparalleled flexibility in creating the ideal atmosphere for any event. Its power measurement capability provides valuable real-time data on energy usage, promoting efficiency.

  •  Supports any 12V or 24VDC White (or color), RGB, RGBW LED strips
  •  Power measurement
  • 3 lighting profiles for easy customization
  • Adjustable transition duration & fade rate, as well as min/max brightness
  • Independent control for RGB and White: Color brightness and white brightness now can be controlled independently with dimming up/down.
  • Night mode
  • Over-current protection
  •  Wi-Fi Range Extender & BLE Gateway
  • Extremely fast processor for immediate reaction - ESP32
  • Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
  • No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform.

Specifications

Size (HxWxD)
42x37x12 mm
Weight
16 g
Screw terminals max torque
0.2 Nm / 1.8 lbin
Conductor cross section
0.1 to 1 mm² / 30 to 16 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length
6 mm
Mounting
In-wall
Shell material
Plastic
Shell color
Yellow
Connectors color
Green
Ambient working temperature
-20°C to 40°C
Humidity
30% to 70% RH
Power supply
12/24 VDC
Power consumption
< 1.2 W
Max. control voltage
24 VDC
Max. control current
4 A per channel (10 A total)
Range (indoors)
Up to 30 m
Range (outdoors)
Up to 50 m
Bluetooth protocol
4.2
RF band
2400 - 2483.5 MHz
Max. RF power
< 4 dBm
Bluetooth range (indoors)
Up to 10 m
Bluetooth range (outdoors)
Up to 30 m
CPU
ESP32
Clock frequency
160 MHz
RAM
400 KB
Flash
4 MB
Schedules
20
Webhooks (URL actions)
20 with 5 URLs per hook
Scripting
Yes
MQTT
Yes

Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
