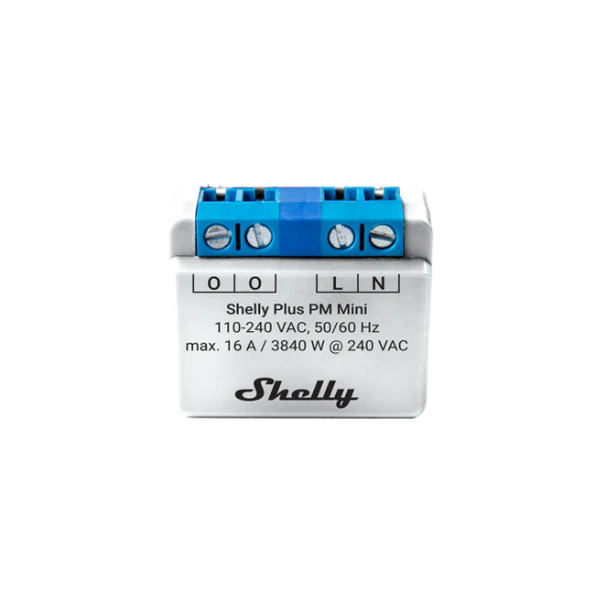

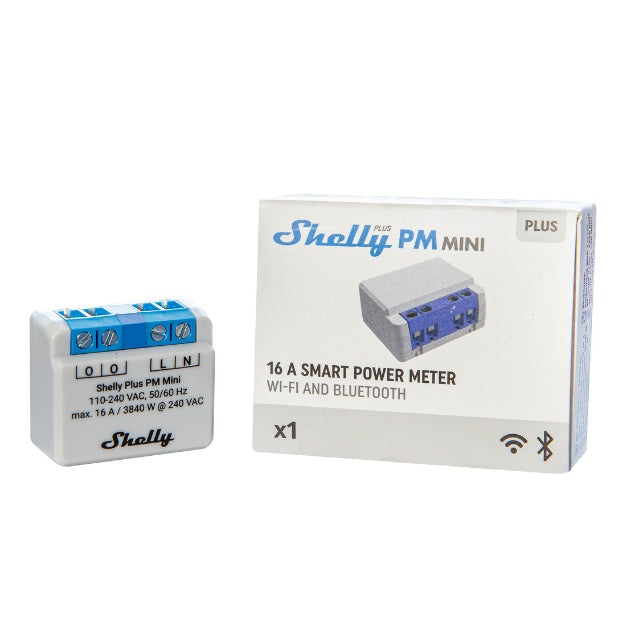

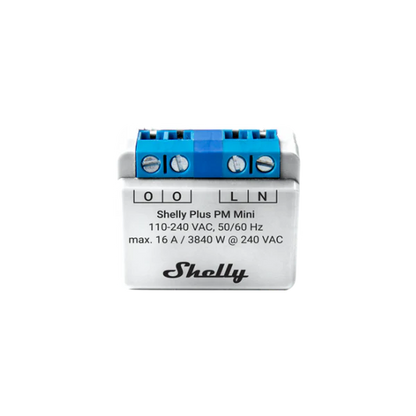

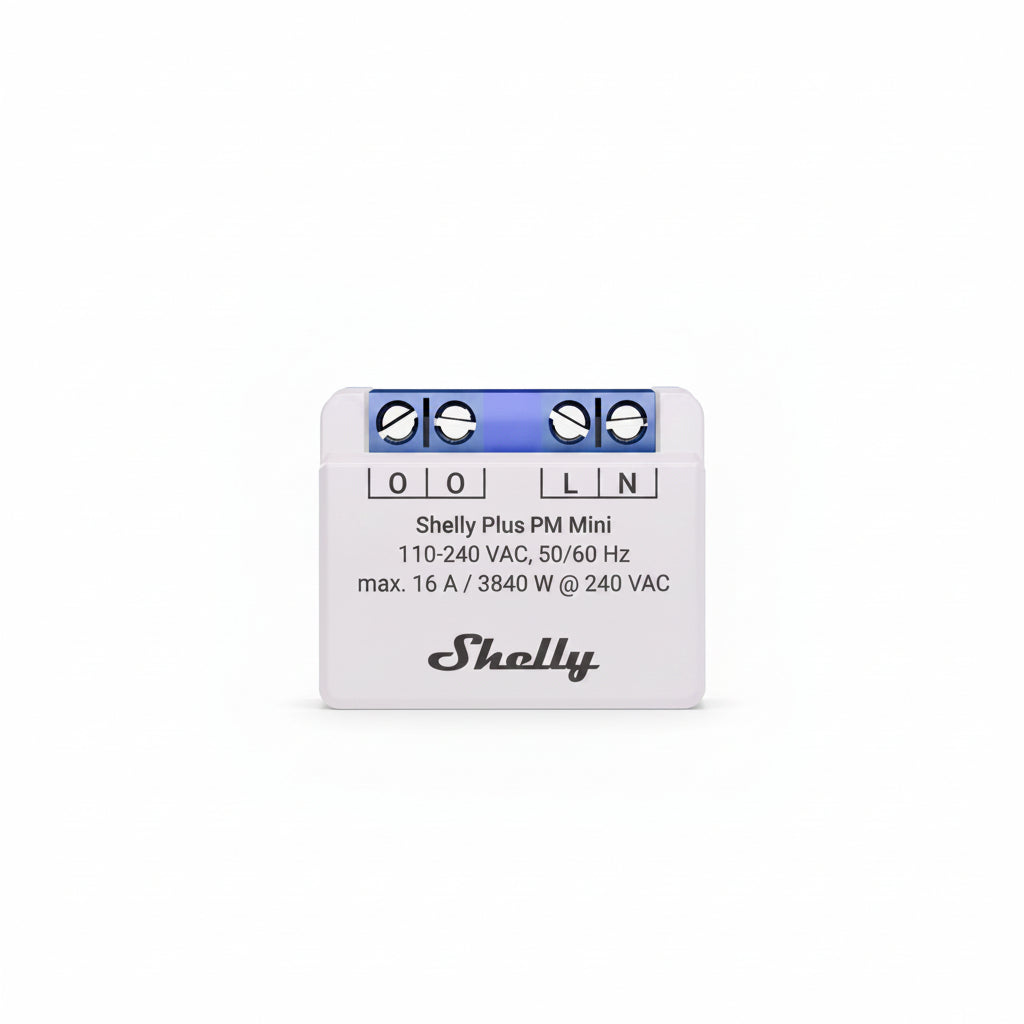

Shelly Plus PM Mini
Shelly Plus PM Mini
Couldn't load pickup availability
Typically used for:
- Individual Appliance Monitoring
- In-Wall Power Consumption Auditing
- Space-Constrained Switchboard Sub-Circuits
- Smart Automation Load Tracking

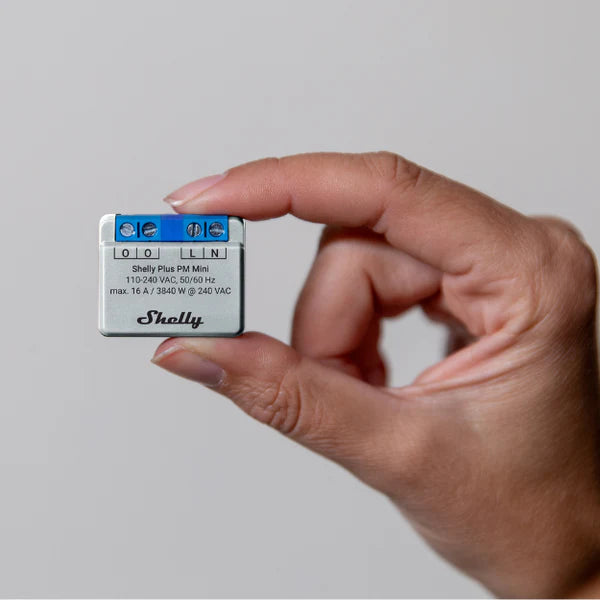

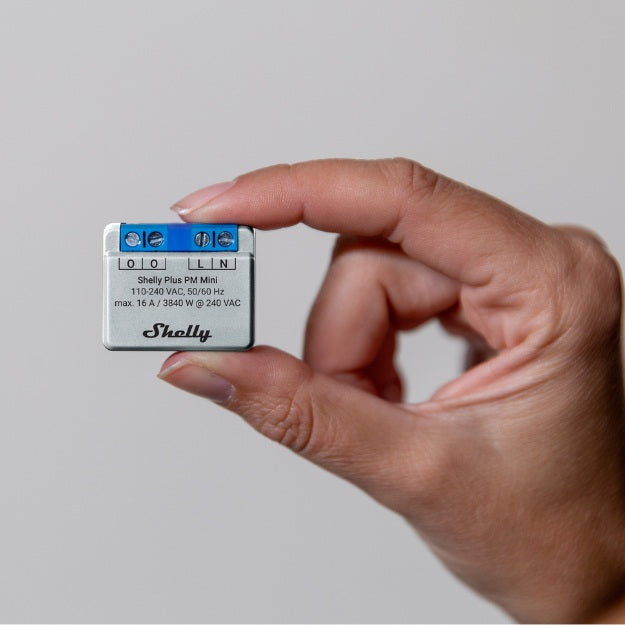

Incorporate discrete, real-time power intelligence into any space with the Shelly Plus PM Mini. Engineered with an ultra-small form factor, this Gen2 power meter is designed to retrofit into tight electrical enclosures, shallow wall boxes, or directly behind congested light switches and power sockets where standard smart relays simply cannot fit.
Operating as a standalone power monitor, it captures high-precision telemetry regarding your energy usage over Wi-Fi and Bluetooth. Because it runs on the robust Shelly Plus architecture, it easily functions as a local range extender and Bluetooth gateway, strengthening connection paths to nearby battery-operated sensors while feeding real-time energy statistics directly to your smart home dashboard.
Key Features:
- Ultra-Compact Mini Series Profile: Reduced physical volume makes it ideal for dense cable management inside standard flush boxes.
- Precise Power Monitoring: Tracks active power, current, and voltage parameters on a single circuit with free historical data storage.
- Advanced Local Processing: Equipped with an ESP32 processor to handle local schedules, custom scripting, and virtual components seamlessly.
- Enhanced Connectivity Hub: Built-in Wi-Fi and Bluetooth 4.2 capabilities allow it to operate as a local network range extender and BLU gateway.
- Comprehensive Ecosystem Integration: Native compatibility with the Shelly Smart Control app, popular voice assistants, local webhooks, and secure MQTT networks.
Specifications
|
Physical |
|
|
Size (HxWxD): |
29x35x16 mm (±0.5 mm) |
|
Weight: |
13 g |
|
Mounting: |
Wall box / In-wall enclosure |
|
Screw terminals max torque: |
0.4 Nm |
|
Conductor cross section: |
0.2 to 2.5 mm² (24 to 14 AWG) |
|
Conductor stripped length: |
6 to 7 mm |
|
Shell material: |
Plastic |
|
Shell color: |
White |
|
Terminals color: |
Grey |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 m |
|
Electrical & Load Ratings |
|
|
Power supply: |
110 - 240 V~, 50/60 Hz |
|
Power consumption: |
< 1.2 W |
|
Max. measurement current AC: |
16 A |
|
Max. measurement power AC: |
3840 W |
|
Sensors, meters |
|
|
Voltmeter (AC): |
Yes |
|
Ammeter (AC): |
Yes |
|
Internal-temperature sensor: |
Yes |
|
Radio & Connectivity |
|
|
Wi-Fi protocol: |
802.11 b/g/n (2.4 GHz) |
|
Wi-Fi range: |
Up to 50 m outdoors and 30 m indoors (depending on local conditions) |
|
Bluetooth protocol: |
4.2 |
|
Bluetooth range: |
Up to 30 m outdoors and 10 m indoors (depending on local conditions) |
|
Microcontroller unit |
|
|
CPU: |
ESP32 |
|
Flash: |
4 MB |
|
Firmware capabilities |
|
|
Schedules: |
20 |
|
Webhooks (URL actions): |
20 with 5 URLs per hook |
|
Scripting: |
Yes |
|
MQTT: |
Yes |
*NOTICE! This is a power tracking unit only and does not contain an internal relay. It cannot be used to physically switch an electrical load on or off.
Australia and New Zealand Safety Standard (AS/NZS) compliant. SDoCs are available upon request for declared articles sold by Lykalyte. Some components and non-declared products may not require SDoCs under NZ regulations.
