Shelly Plus 2PM
Shelly Plus 2PM

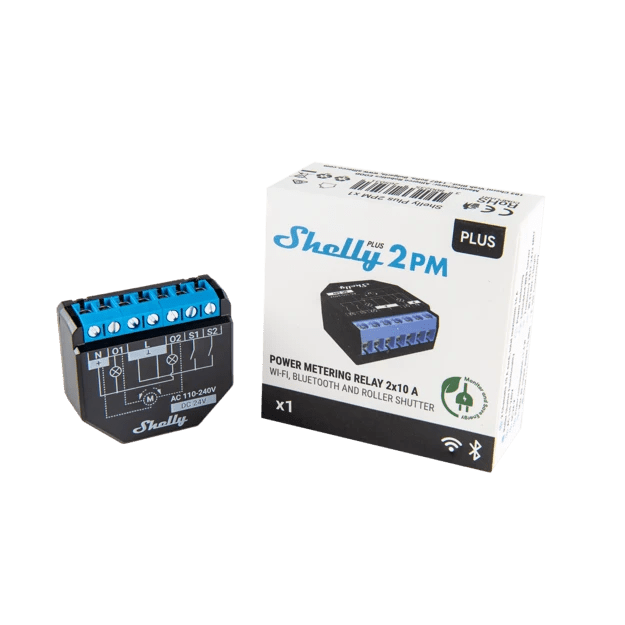

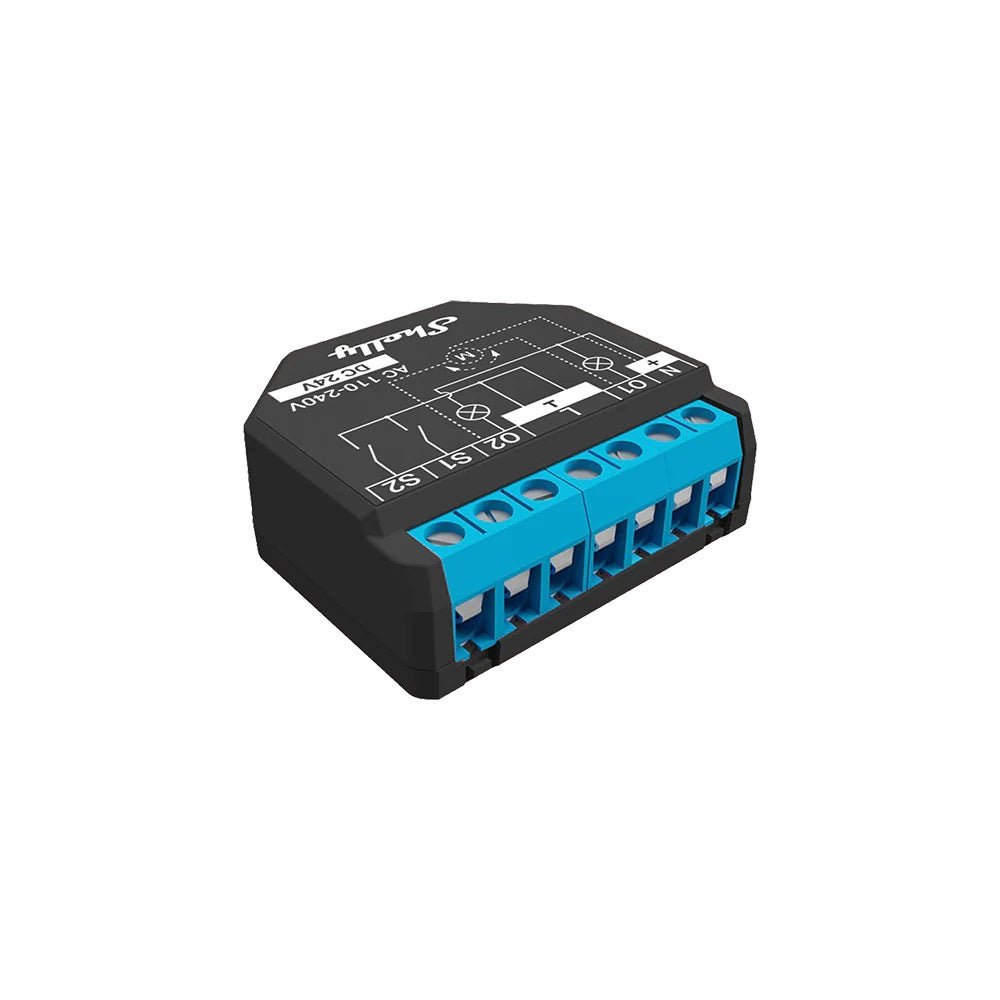

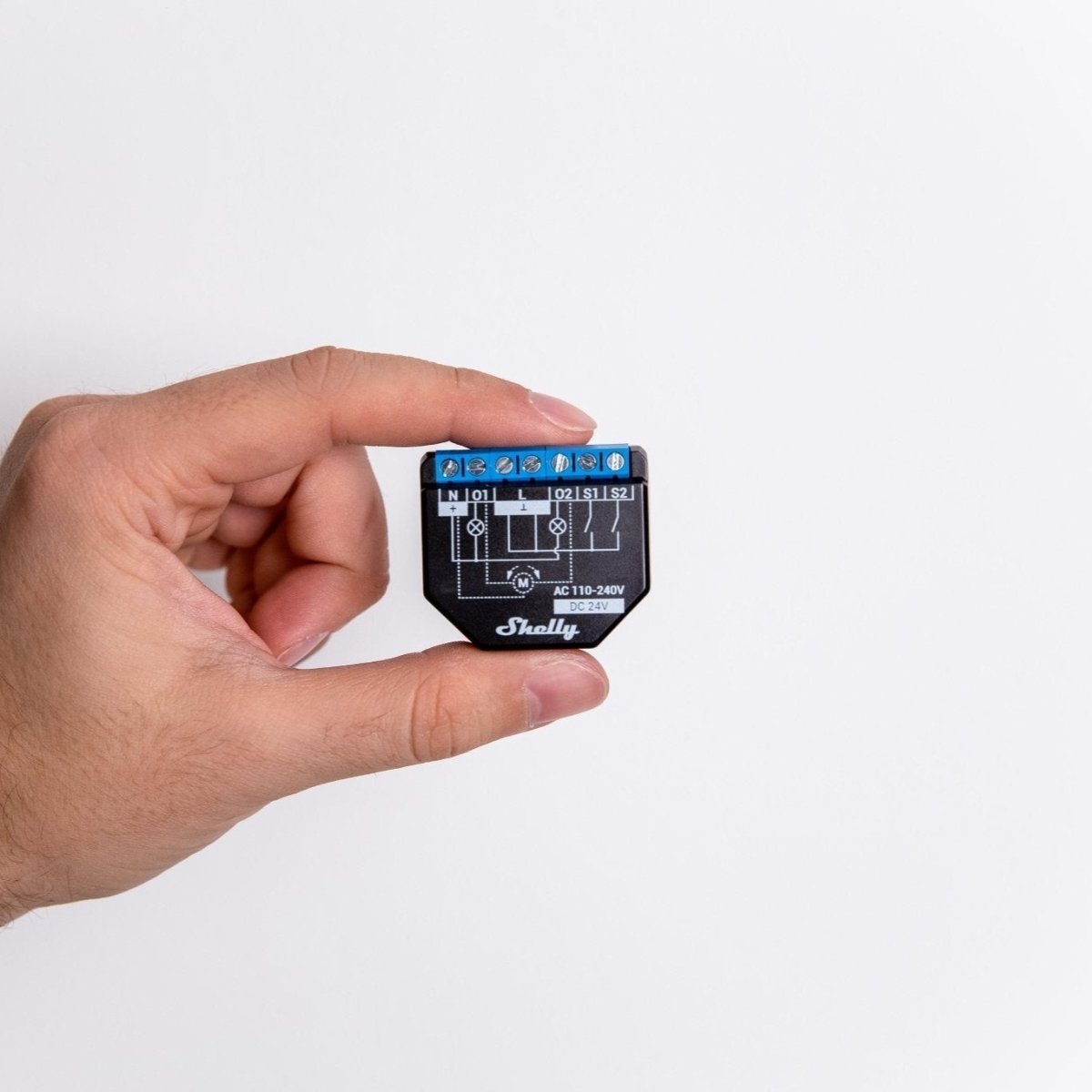

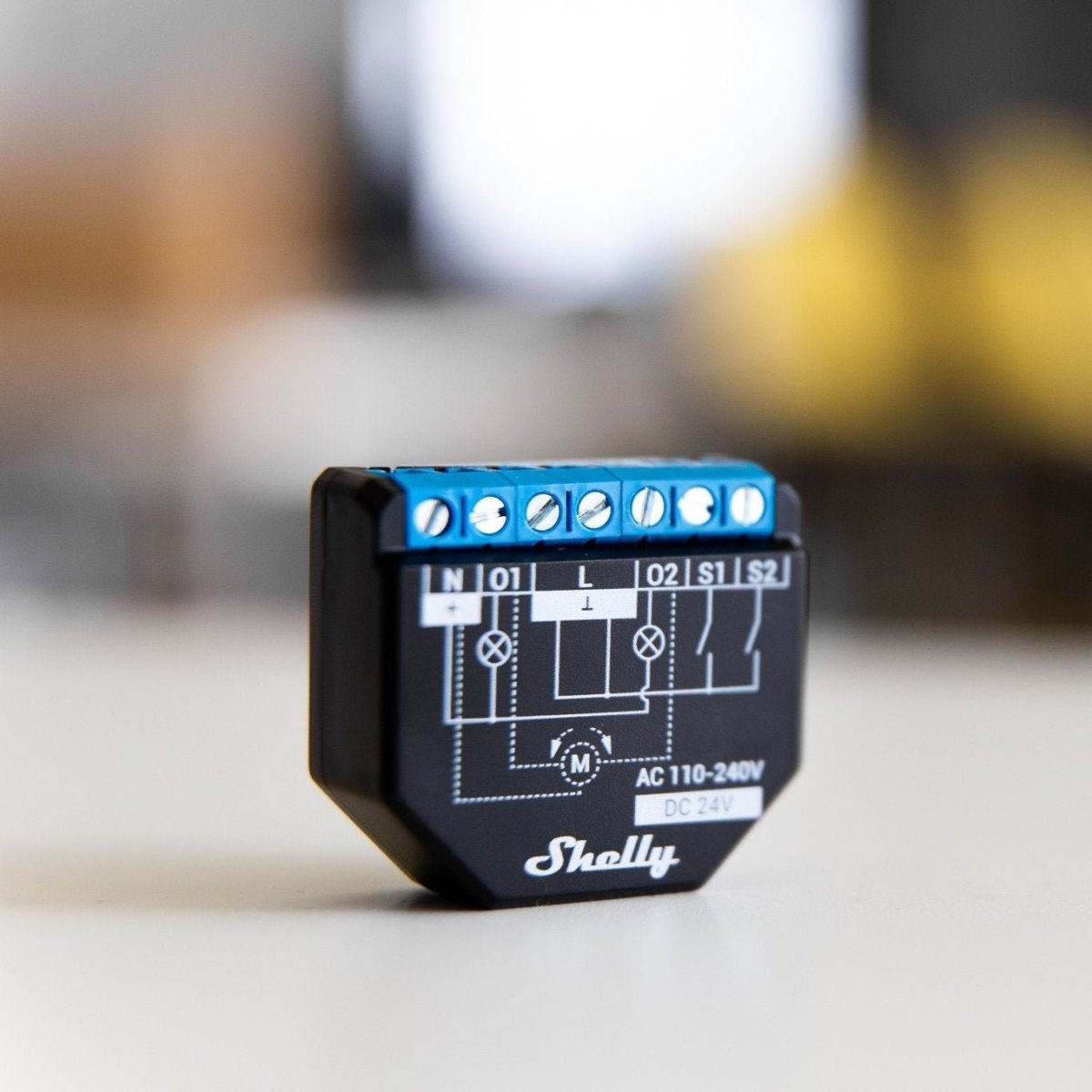

Shelly Plus 2PM 2 Channel Smart Relay
Automate lights and monitor their real-time power consumption.
Cover (Roller) Control - Automate and control the current position of roller shutters, curtains, garage doors, awnings, gates, electric sliding doors, pool covers, bi-directional AC motors
Includes Bluetooth for easy setup
Power Metering
With the new Shelly Plus 2PM, you have the capability to observe and analyze the energy usage of your automated appliances while efficiently controlling your consumption. Equipped with two integrated precise power meters, this device enables you to monitor the consumption of each channel independently. Additionally, the availability of stored consumption data at no extra cost assists you in predicting your expenses and empowers homeowners to effectively reduce their electricity bills.
Mobile App Control
Turn devices on/off directly from your smartphone or tablet.
Wi-Fi Connected
Just connect Shelly to your Wi-Fi network and begin the ultimate experience of controlling your home with your phone.
Voice assistant compatible
Control your appliance with your voice. Shelly OS is Google Home and Amazon Echo Compatible.
Weekly Scheduling
Create custom daily schedules for your devices.
Following the Sunlight
Shelly Relays can automatically turn on/off based on the sunrise and sunset hours.
Free Cloud
All you need to manage your Shelly Plus 2PM is a smartphone and the Shelly Cloud free mobile application.
Countdown timer
No more forgotten appliances left on. The integrated countdown timer can automatically switch off your oven after an hour.
PHYSICAL | |
---|---|
Size (HxWxD): | 37x42x16 ±0.5 mm |
Weight: | |
Mounting: | Wall console |
Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
Conductor cross section: | 0.5 to 1.5 mm² / 20 to 16 AWG |
Conductor stripped length: | 5 to 6 mm |
Shell material: | Plastic |
Color: | Black |
ENVIRONMENTAL | |
Ambient temperature: | -20 °C to 40 °C |
Humidity | 30 % to 70 % RH |
Max. altitude | 2000 m |
ELECTRICAL | |
Power supply: | 110 - 240 VAC / 24 VDC ±10% |
Power consumption: | < 1.4 W |
OUTPUT CIRCUITS RATINGS | |
Max switching voltage AC: | 240 V |
Max switching voltage DC: | 30 V |
Max switching current AC: | 10 A (per channel), 16 A (total), 18 A (total peak) |
Max switching current DC: | 10 A |
SENSORS, METERS | |
Temperature sensor: | Yes |
Voltmeter (AC) | Yes |
Ammeter (AC) | Yes |
RADIO | |
RF band: | 2400 - 2495 MHz |
Max. RF power: | <20 dBm |
Wi-Fi protocol: | 802.11 b/g/n |
Wi-Fi Range: | Up to 30 m indoors and 50 m outdoors (Depends on local conditions) |
Bluetooth Protocol: | 4.2 |
Bluetooth Range: | Up to 10 m indoors and 30 m outdoors (Depends on local conditions) |
MCU | |
CPU: | ESP32 |
Flash: | 4 MB |
FIRMWARE CAPABILITIES | |
Schedules: | 20 |
Webhooks (URL actions): | 20 with 5 URLs per hook |
Scripting: | mJS |
MQTT: | Yes |
CoAP: | No |
Max Load is the Maximum rated Load and it is not recommended that this device is used for anything more than short duration at or near the Maximum.
Higher loads require sufficient allowance for excess heat.
Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
