Shelly Plus 1
Shelly Plus 1
Couldn't load pickup availability

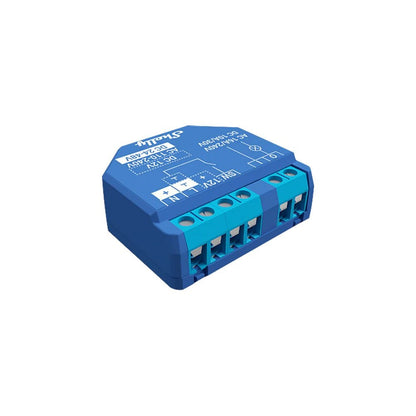

This is the Shelly Plus 1 Relay, the updated version of the most powerful Wi-Fi relay for your automation solution. With its compact design, it seamlessly integrates behind your existing wall switches or power outlets, retaining the aesthetics of your classic switches while adding smart functionality.
Control your devices directly from your smartphone or tablet using the intuitive mobile app. Simply connect the Shelly Plus 1 Relay to your Wi-Fi network, and you'll have the ultimate experience of managing your home with ease, all from the convenience of your phone.
Now with the added functionality of Bluetooth to assist with adding devices quickly and easily.
Harness the power of voice control by integrating the Shelly Plus 1 Relay with popular voice assistants such as Google Home and Amazon Alexa. Just use your voice to command your appliances easily.
Create custom schedules for your devices with weekly scheduling. Whether it's turning on the lights at specific times or setting up a routine, the Shelly Plus 1 Relay empowers you to tailor automation to your preferences.
Experience the intelligence of Shelly Relays as they automatically adjust to daylight. With the ability to follow the sunrise and sunset hours, you can enjoy a seamless transition of your devices turning on and off based on natural lighting conditions.
Designed to handle a wide range of devices and appliances, the Shelly Plus 1 Relay supports up to 3500W of power. From lighting fixtures to various electrical appliances, you can confidently control them all.
The Shelly Plus 1 is compatible with a wide range of AC and DC power supplies, including 110–240V AC, 12V DC, and 24–48V DC. This versatility ensures that the Shelly Plus 1 Relay can adapt to your specific power requirements without any hassle.
Upgrade your home with the Shelly Plus 1 Relay and enjoy the perfect blend of intelligence, convenience, and compatibility in one small but powerful device.
Price
Single $39.99
|
Specifications: |
|
|
Physical |
|
|
Size (HxWxD): |
37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in |
|
Weight: |
26 g / 0.92 oz |
|
Environmental |
|
|
Ambient temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
|
Humidity |
30 % to 70 % RH |
|
Electrical |
|
|
Power supply: |
110 - 240 VAC / 24 - 48 VDC / 12 VDC ±10% |
|
Power consumption: |
< 1.2 W |
|
Output circuits ratings |
|
|
Max switching voltage AC: |
240 V |
|
Max switching voltage DC: |
30 V |
|
*Max switching current AC: |
16 A |
|
Max switching current DC: |
10 A |
|
Sensors, meters |
|
|
Internal-temperature sensor: |
Yes |
|
Radio |
|
|
RF band: |
2400 - 2495 MHz |
|
Max. RF power: |
<20 dBm |
|
Wi-Fi protocol: |
802.11 b/g/n |
|
Wi-Fi Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
|
(Depends on local conditions) |
Bluetooth Protocol: |
|
4.2 |
Bluetooth Range: |
|
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
(Depends on local conditions) |
*Resistive loads only, Max Load is the Maximum rated Load and it is not recommended that this device is used for anything more than short duration at or near the Maximum.
Higher loads require sufficient allowance for excess heat.
Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
