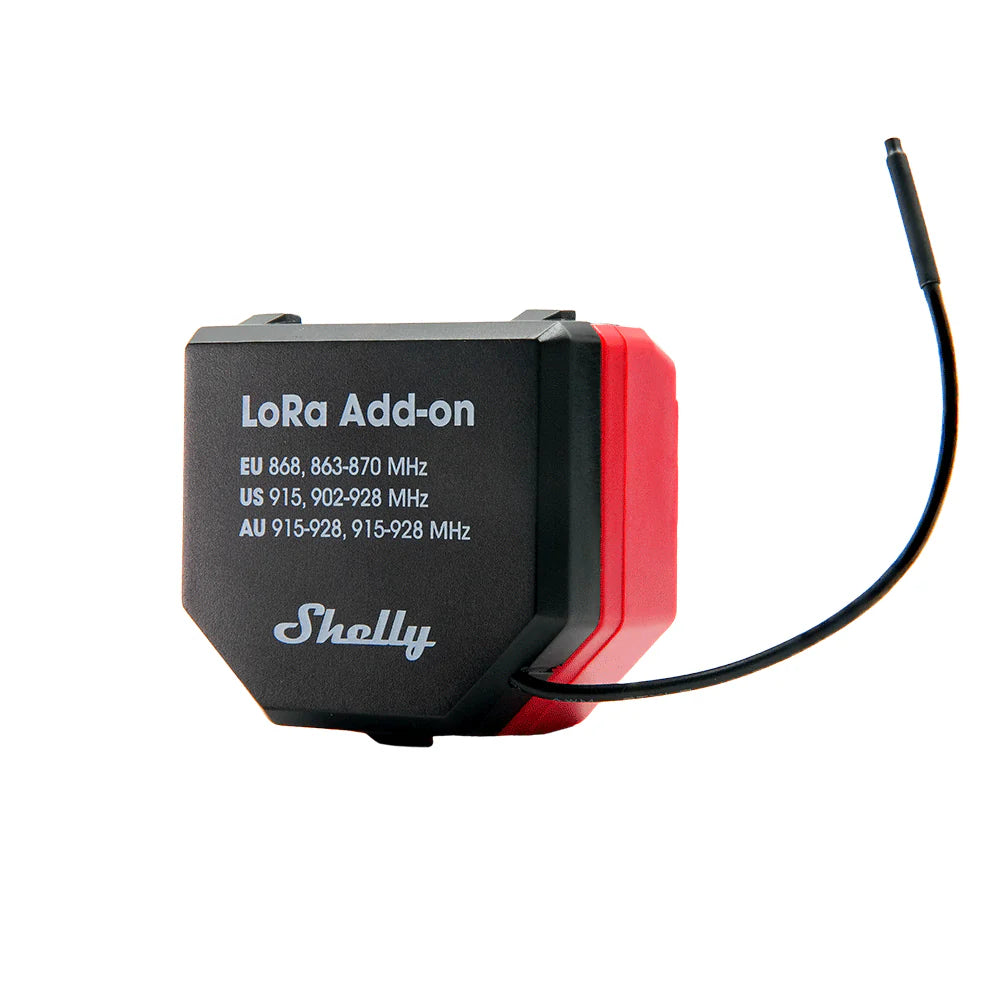

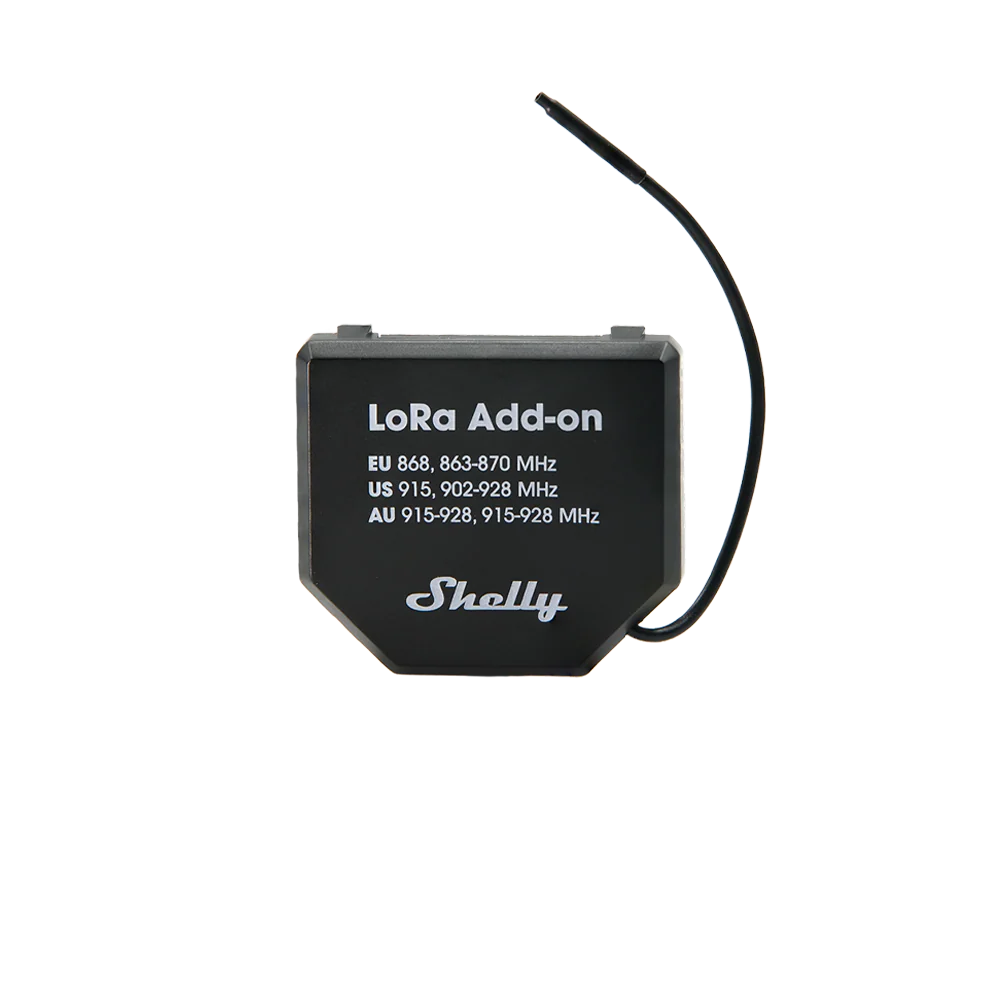

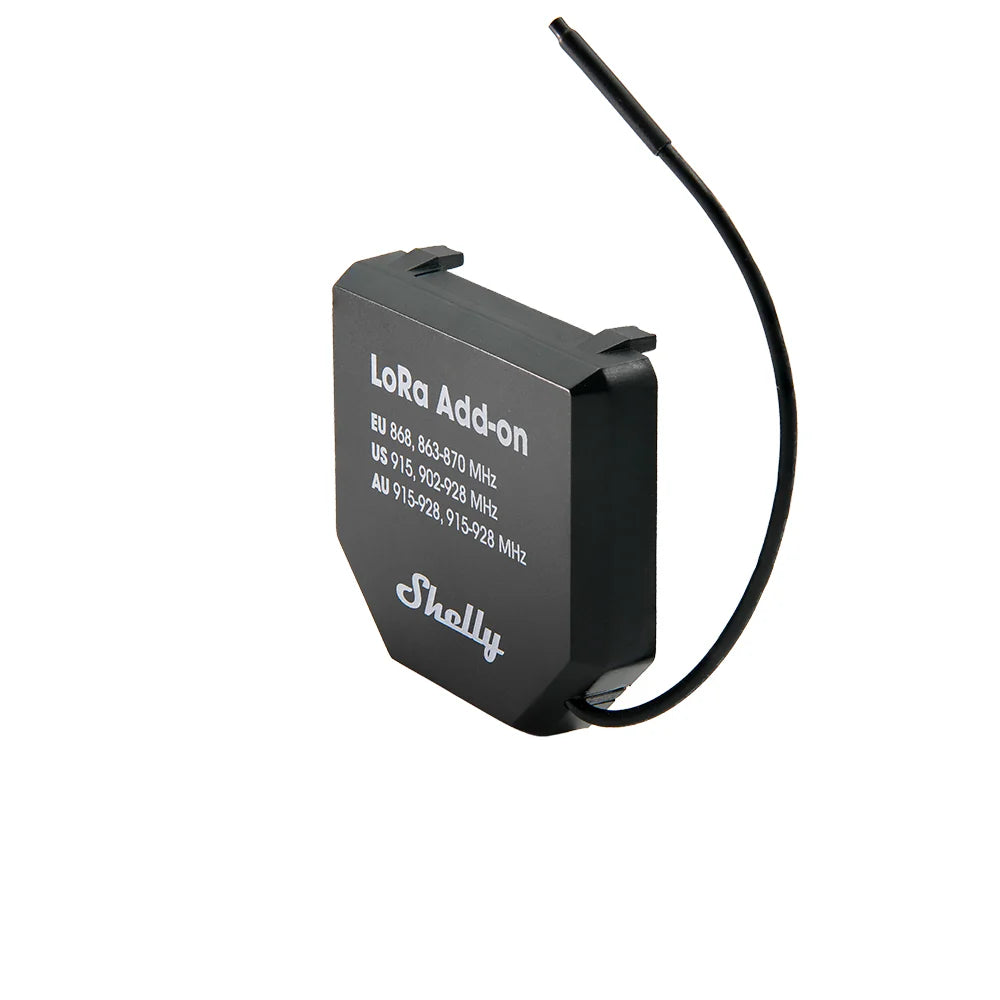

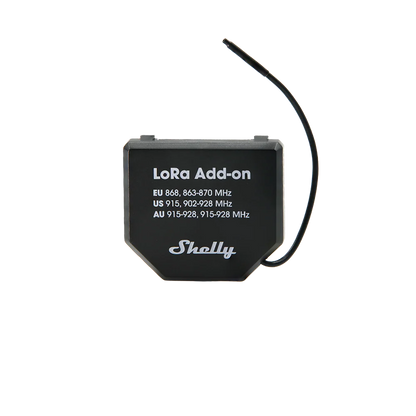

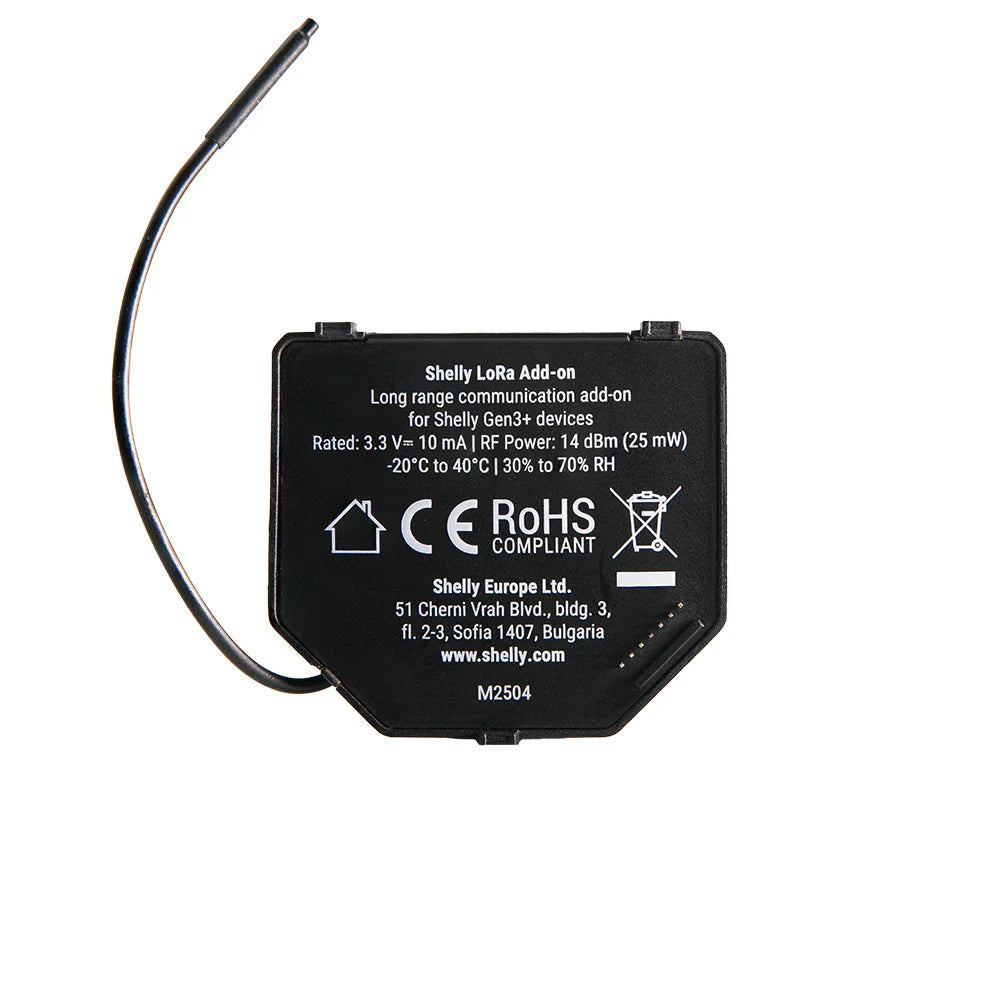

Shelly LoRa AddOn
Shelly LoRa AddOn
Couldn't load pickup availability
Typically used for:
- Smart Agriculture & Remote Irrigation Control
- Municipal Street Lighting & Infrastructure Automation
- Multi-Building & Campus Network Extensions
- Remote Facility Equipment & Pump Management
Break through the spatial limitations of standard Wi-Fi with the Shelly LoRa Add-on. Designed as an expansion module for compatible Shelly Gen3 and Gen4 devices, this compact interface adds long-range, barrier-penetrating LoRa radio connectivity to your relays. It enables ultra-long-distance communication—up to 5 km—in open spaces and guarantees signal penetration through dense obstacles like reinforced concrete walls or underground basements.
Snapping directly into the proprietary header slot of your host module, the add-on operates seamlessly off the host's power and processor. It allows you to build cost-effective, long-distance IoT networks without relying on cellular data plans or expensive wireless repeaters, making it ideal for managing outlying pumps, street lighting, or agricultural fields.
Key Features:
- Ultra Long-Range Wireless: Achieves robust, two-way wireless data links over distances up to 5,000 meters depending on local conditions.
- Direct Host Integration: Connects directly to the proprietary serial interface on compatible Shelly Gen3 and Gen4 devices with zero external power cabling required.
- Multi-Region RF Band Support: Operates across major sub-GHz LoRa frequency bands including EU868, US915, and AU915-928.
- High Obstacle Penetration: Bypasses structural interference from metal, concrete, and earth, delivering dependable transmission where Wi-Fi fails.
- Custom Scripting & Automation: Fully supports local mJS scripting on the host device to automate actions based on incoming LoRa payloads or send alerts automatically.
Specifications
|
Physical |
|
|
Size (HxWxD): |
40x42x11 mm |
|
Weight: |
10 g |
|
Mounting: |
Proprietary serial interface on host Shelly device |
|
Shell material: |
Plastic |
|
Shell color: |
Black |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C |
|
Max. altitude: |
2000 m |
|
Electrical |
|
|
Power supply: |
3.3 V DC (supplied directly via host Shelly device) |
|
Power consumption: |
< 150 mW |
|
Radio & Connectivity |
|
|
Wireless protocol: |
LoRa / LoRaWAN |
|
Supported frequency bands: |
EU868, US915, AU915-928 |
|
Max. RF power: |
< 14 dBm |
|
Operational range: |
Up to 5,000 m outdoors (dependent on local environment and terrain) |
|
Compatibility Requirements |
|
|
Supported host devices: |
Shelly Gen3 & Gen4 Series (e.g., Shelly 1 Gen3, Shelly 1PM Gen3, Shelly 2PM Gen3, Shelly 1 Gen4, Shelly 1PM Gen4) |
|
Required host firmware: |
Version 1.6.0 or newer |
*NOTICE! To establish a wireless LoRa communication path, you will require at least two LoRa-enabled nodes (or a host device with a LoRa Add-on and a compatible gateway/receiver).
Australia and New Zealand Safety Standard (AS/NZS) compliant. SDoCs are available upon request for declared articles sold by Lykalyte. Some components and non-declared products may not require SDoCs under NZ regulations.
