Shelly LAN Switch
Shelly LAN Switch
Couldn't load pickup availability
Shelly LAN Switch

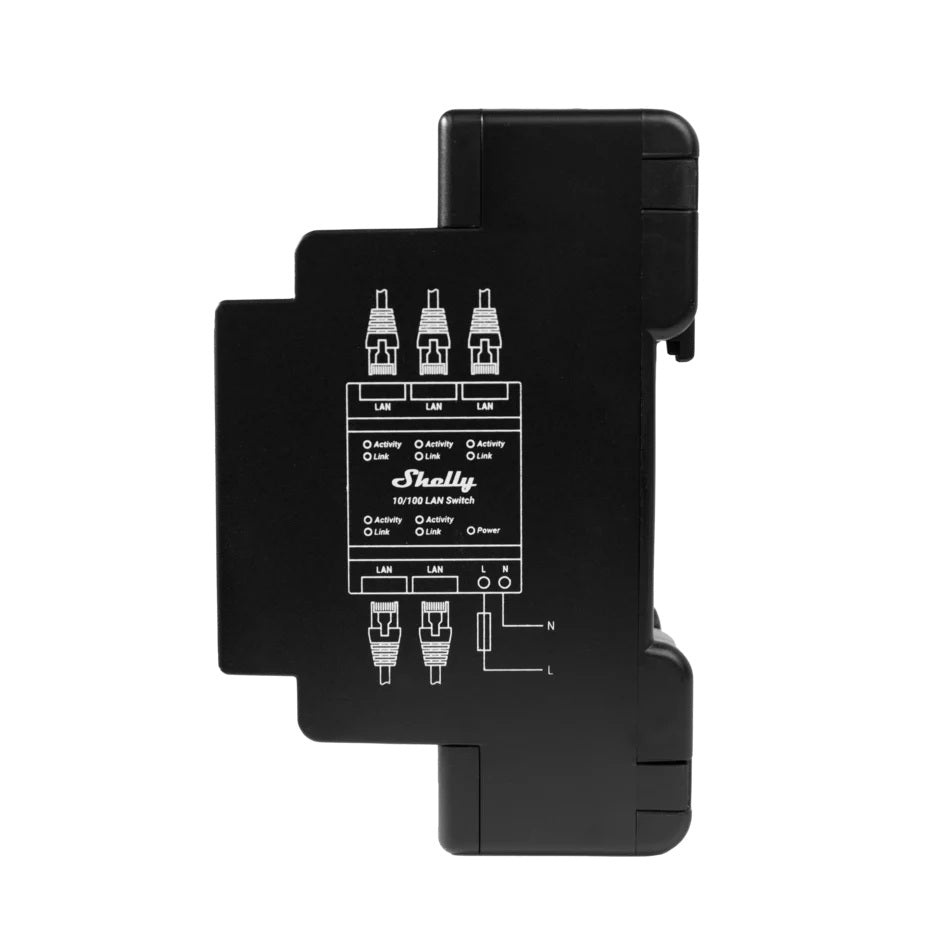

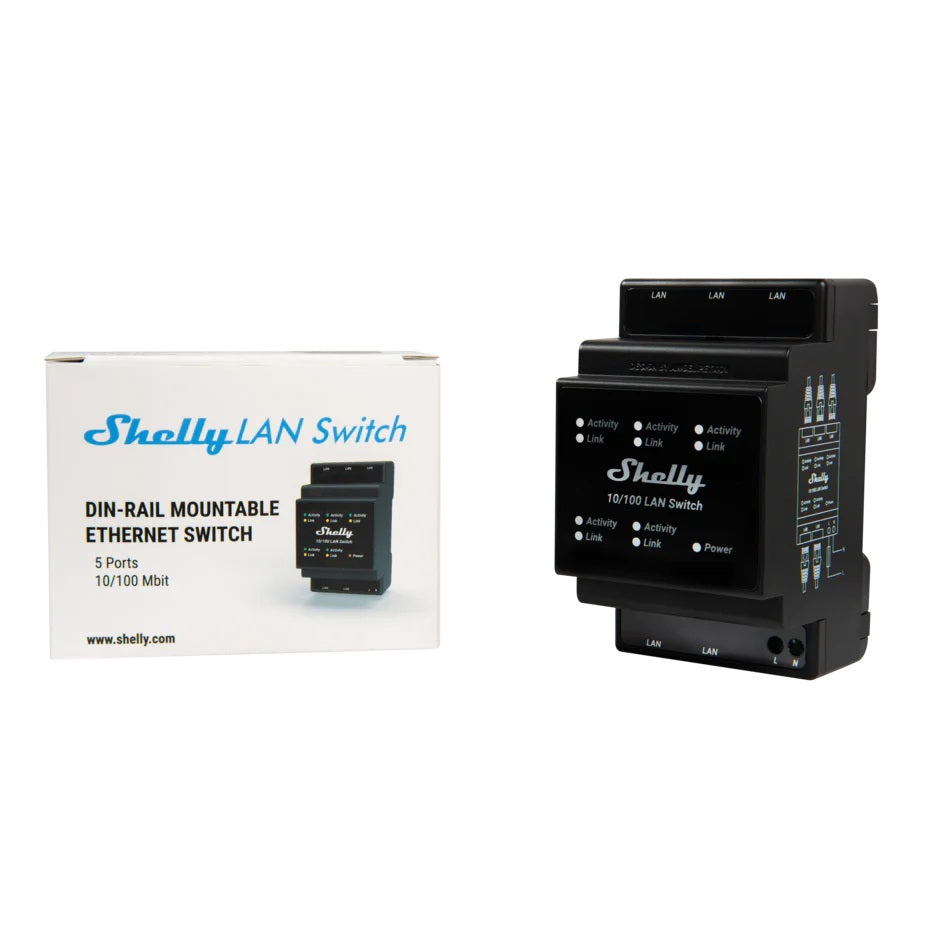

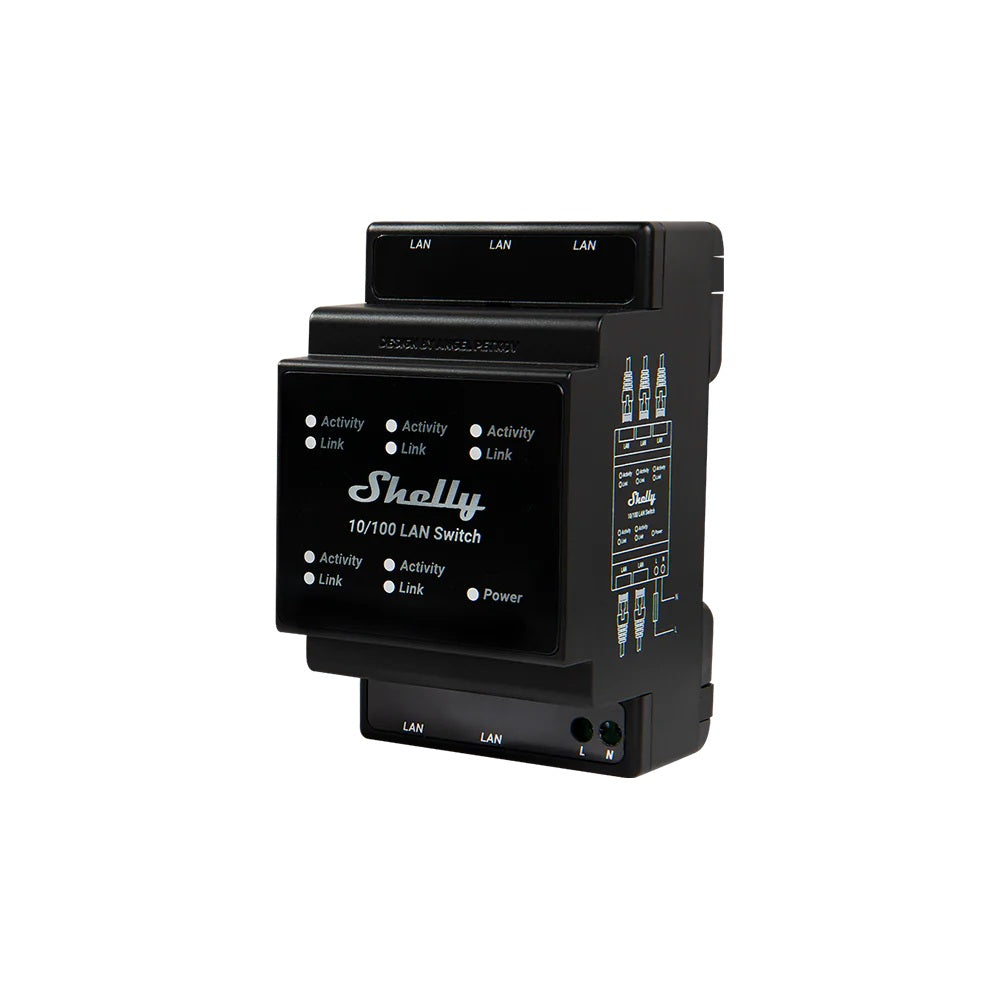

DIN-mountable Ethernet switch with 5 RJ45 ports, engineered for reliability and performance. Ensures a consistent and stable direct network connection to your devices.
Key Features:
- DIN-mountable
- 5 RJ45 ports
- 10/100mbps
- LED indicators
- 110V - 230V power supply; No need for additional adapters
Shelly LAN Switch provides a straightforward solution for reliable connection without the need for extensive electrical modifications. Now, you only need 1 LAN cable inside your breaker box to connect your devices! Its shared form-factor with the Pro line devices ensures it fits perfectly in a Shelly-occupied breaker box, simplifying installation and maintaining an organized setup.
Specifications
|
Physical |
|
|
Size (HxWxD): |
96x53x59 mm / 3.78x2.01x2.32 in |
|
Weight: |
87 g / 3 oz |
|
Screw terminals max torque: |
0.4 Nm / 3.54 lbin |
|
Conductor cross section: |
0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded, and bootlace ferrules) |
|
Conductor stripped length: |
6 to 7 mm / 0.24 to 0.28 in |
|
Mounting: |
DIN rail |
|
Shell material: |
Plastic |
|
Shell color: |
Black |
|
Connectors color: |
Green |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 m / 6562 ft |
|
Electrical |
|
|
Power supply: |
110 - 240 V~ 50/60 Hz |
|
Power consumption: |
< 1 W |
|
External protection: |
Tripping characteristic B or C, |
|
Functionality |
|
|
Communication/negotiation mode |
Тhe switch is fully capable in auto-negotiation mode as per IEEE 802.3(Half duplex (HDX), Full duplex (FDX), Back pressure, pause, Flow control (IEEE 802.3)) |
Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
