Shelly EM Mini Gen4
Typically used for:
- Real-time energy monitoring
- Appliance power tracking
- Energy efficiency optimization
Compact Multi-Protocol Energy Meter (Wi-Fi, Bluetooth, Zigbee, Matter)

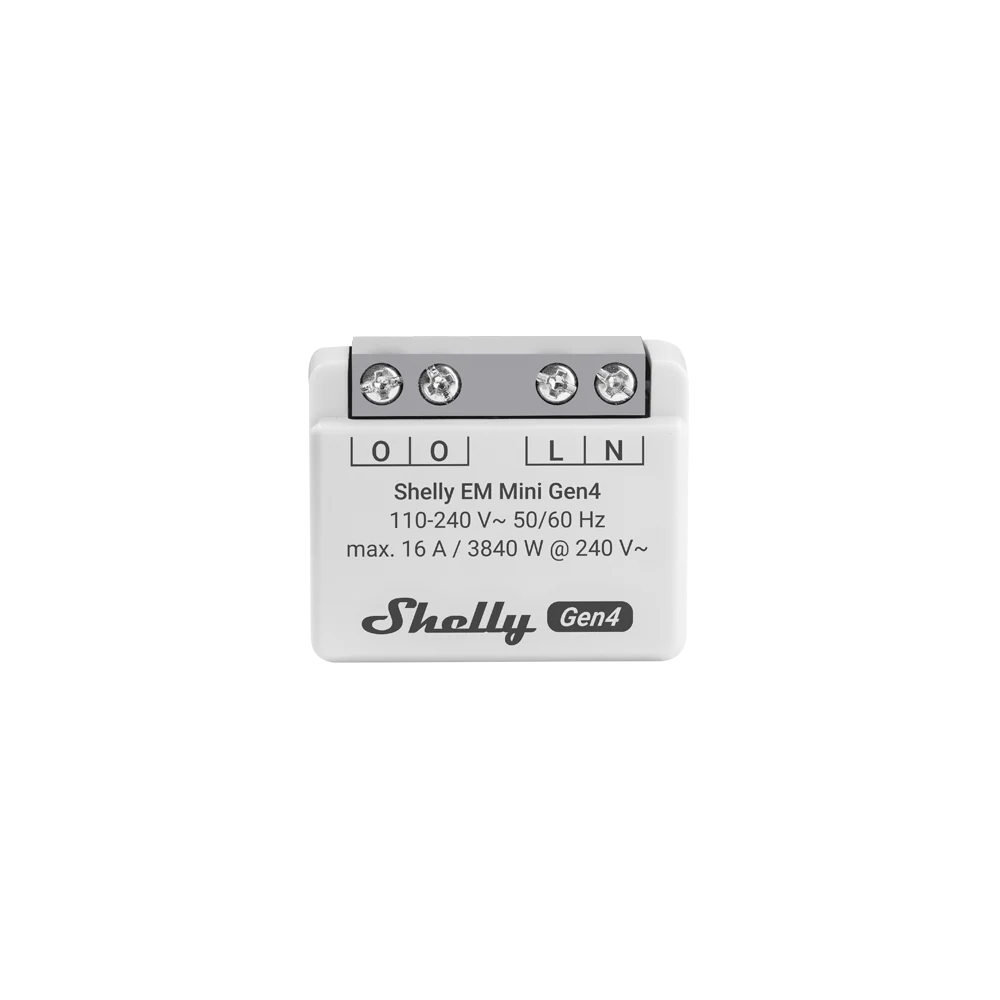

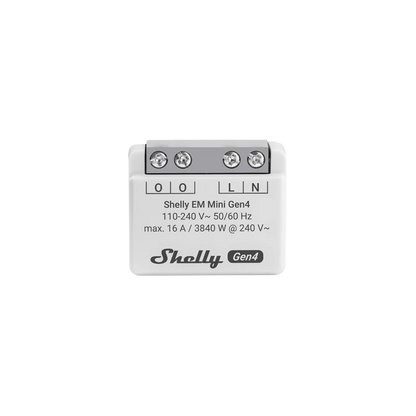

The Shelly EM Mini Gen4 is a professional-grade, small form factor energy meter designed to monitor the consumption of individual appliances or circuits up to 16 A. Upgraded with the new Shelly chip, it features multi-protocol support for Wi-Fi, Bluetooth, Zigbee, and Matter. Please note: This device is for energy metering only and does not contain an internal relay for switching.

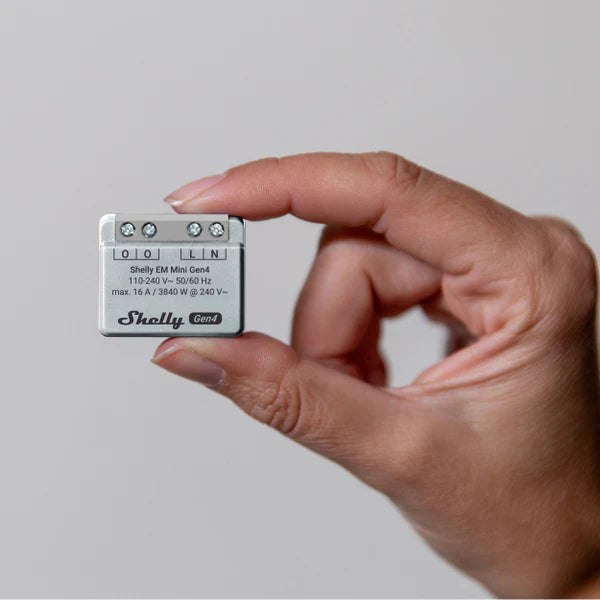

Its ultra-compact size allows it to be retrofitted behind existing wall switches or power sockets in spaces where standard devices won't fit. Perfect for monitoring energy-hungry appliances like ovens, refrigerators, and washing machines to identify savings opportunities.
Key Features:
-
Multi-Protocol Connectivity: Full support for Wi-Fi, Bluetooth 5.0, Zigbee, and Matter-certified for seamless ecosystem integration.
-
Precise Monitoring: Tracks active power and active energy with ±1% accuracy for loads up to 3840 W.
-
Data Storage: Stores at least 10 days of 1-minute resolution measurement data locally with easy CSV or JSON export.
-
Advanced Intelligence: Supports scripting (mjs), webhooks, and complex schedules to automate your home based on energy data.
- Enhanced Hardware: Equipped with the ESP-Shelly-C68F processor and 8 MB of flash memory for faster performance and increased stability.
Specifications
|
Physical |
|
|
Size (HxWxD): |
Length: 29 (mm) Width: 34 (mm) Height: 16 (mm) |
|
Weight: |
Weight: 0.013 (kg) |
|
Screw terminals max torque: |
0.4 Nm |
|
Conductor cross section: |
0.5 to 4 mm² |
|
Conductor stripped length: |
6 to 7 mm |
|
Mounting: |
Wall console / In-wall |
|
Shell material: |
Plastic |
|
Shell color: |
Shell: White |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 (m) |
|
Electrical |
|
|
Power supply: |
110-240 V~ 50/60 Hz |
|
Power consumption: |
< 1 W |
|
Internal protection: |
Temperature sensor |
|
Measurement Ratings |
|
|
Max. measurement voltage: |
240 V~ |
|
Max. measurement current: |
16 A |
|
Max. measurement power: |
3840 W |
|
Accuracy: |
± 1 % |
|
Radio |
|
|
Wi-Fi Protocol: |
802.11 b/g/n/ax |
|
Bluetooth Protocol: |
5.0 |
|
Zigbee Protocol: |
802.15.4 |
|
Range: |
Up to 30 m indoors and 50 m outdoors |
|
Microcontroller unit |
|
|
CPU: |
ESP-Shelly-C68F |
|
Flash: |
8 MB |
Max Load is the Maximum rated Load and it is not recommended that this device is used for anything more than short duration at or near the Maximum.
Higher loads require sufficient allowance for excess heat.
Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
