Shelly EM Gen3
Shelly EM Gen3
Couldn't load pickup availability
Typically used for:
- Energy Monitoring
- Consumption Analysis
- Contactor Control
- Solar Energy Management
- Circuit Monitoring

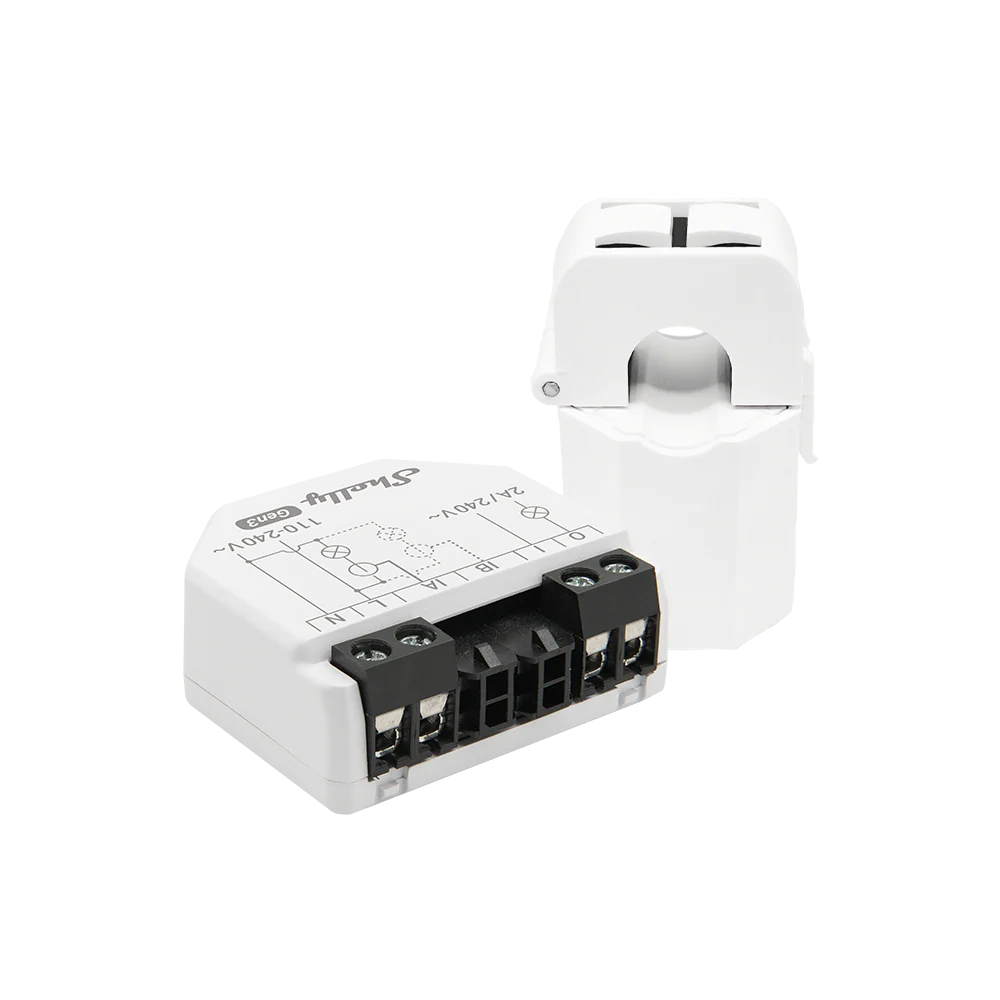

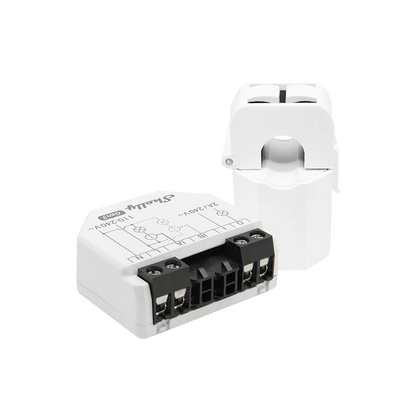

Introducing the Shelly EM Gen3, a compact and smart energy meter that provides real-time, contactless monitoring of electricity consumption. This innovative device is designed to help you track the power usage of your electric appliances, circuits, or even solar energy production and household consumption. It is capable of measuring up to 80A per channel, making it ideal for monitoring heavy loads. With a single dry contact relay, it can also be used for contactor control.
The Shelly EM Gen3 can operate as a standalone device within your local Wi-Fi network or be integrated into a home automation system. It stores data logs on the device for up to 10 days, allowing you to retrieve a detailed history of your energy consumption. It can be easily controlled from the Shelly Smart Control app on your smartphone, tablet, or PC.
Now with the added functionality of Bluetooth to assist with adding devices quickly and easily.
Harness the power of voice control by integrating the Shelly EM Gen3 with popular voice assistants such as Google Home and Amazon Alexa. Just use your voice to command your appliances easily.

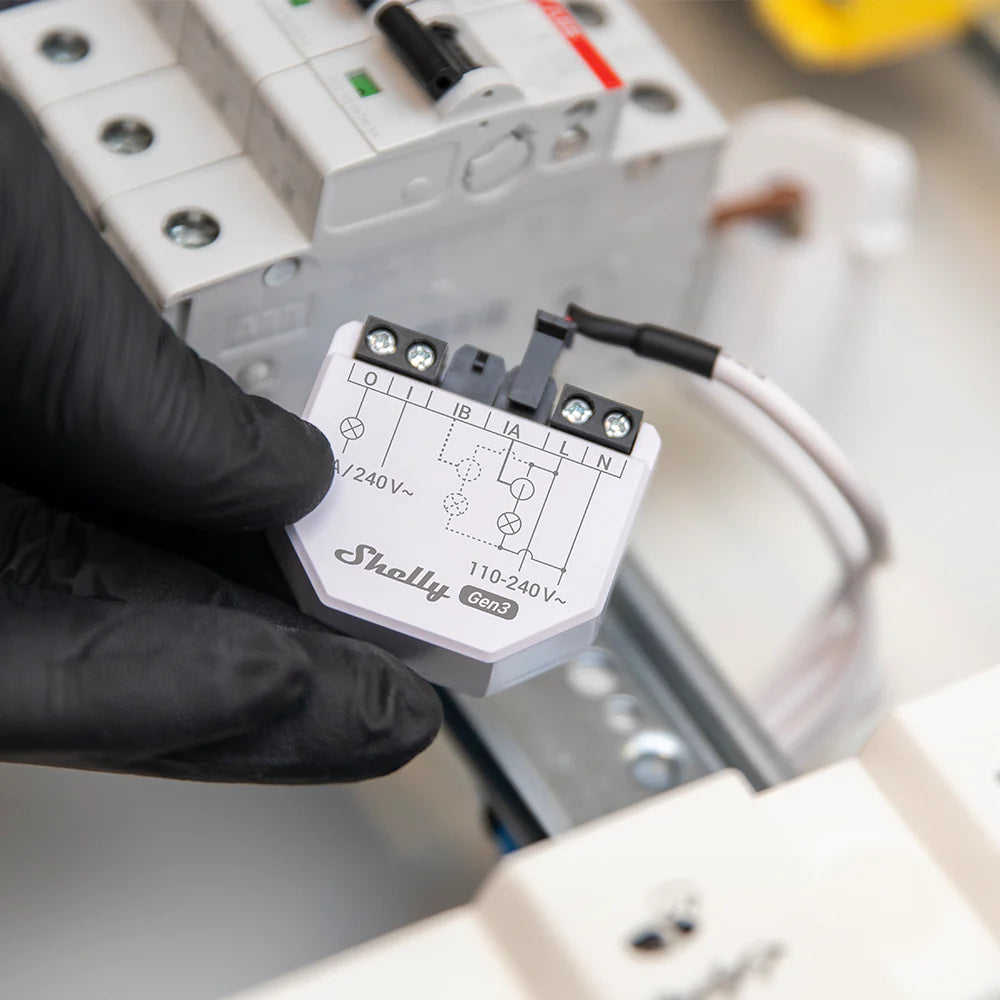

The Shelly EM Gen3 is a versatile device that can be installed in standard electrical wall boxes and other places with limited space, providing a discreet and powerful solution for comprehensive energy management.
- Real-time Energy Monitoring
- Two independent measurement channels
- Dry contact relay for contactor control

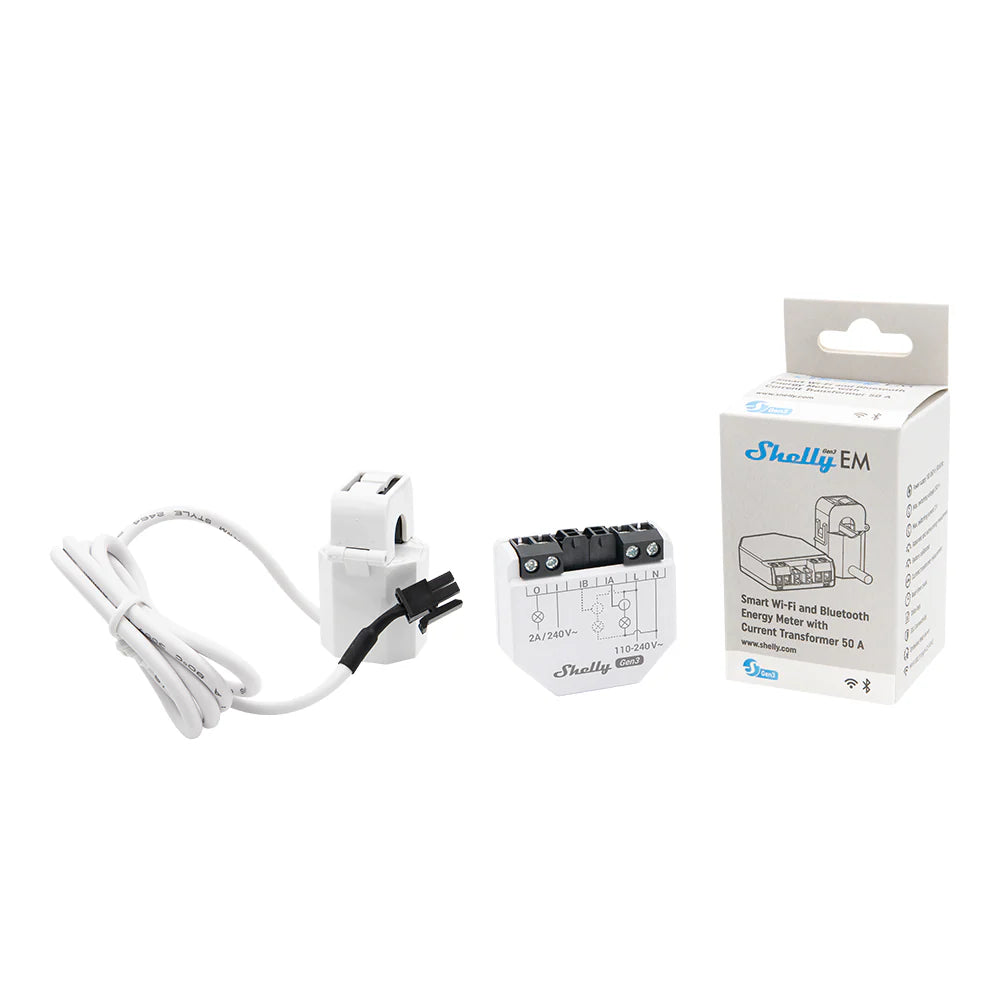

- Comes with 1 x 50A current transformer (CT) in the package
- Data logs stored on device for 10 days of minute data records
- Easy control through the Shelly app and home automation systems
- Wi-Fi range extender & Bluetooth gateway
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
Specifications
|
Physical |
|
|
Size (HxWxD): |
Length: 37 (mm) Width: 42 (mm) Height: 16 (mm) |
|
Weight: |
23 (g) |
|
Electrical |
|
|
Power supply AC: |
110-240V, 50/60Hz |
|
Power consumption: |
< 1.2 W |
|
Output circuits ratings |
|
|
Measurements: |
Single Phase, Two Channels |
|
Channels: |
2 Channel |
|
Current metering: |
up to 80A per channel |
|
Compatible current transformers: |
|
|
Relay: |
Dry contact switch (max 2A) |
|
Radio |
|
|
Wi-Fi Protocol: |
802.11 b/g/n |
|
Bluetooth Protocol: |
4.2 with BLE |
|
Firmware capabilities |
|
|
Data Storage: |
10 days of minute data records |
|
Schedules: |
Yes |
|
Scripting: |
Yes |
|
MQTT: |
Yes |
Australia and New Zealand Safety Standard (AS/NZS) compliant. SDoCs are available upon request for declared articles sold by Lykalyte. Some components and non-declared products may not require SDoCs under NZ regulations.
