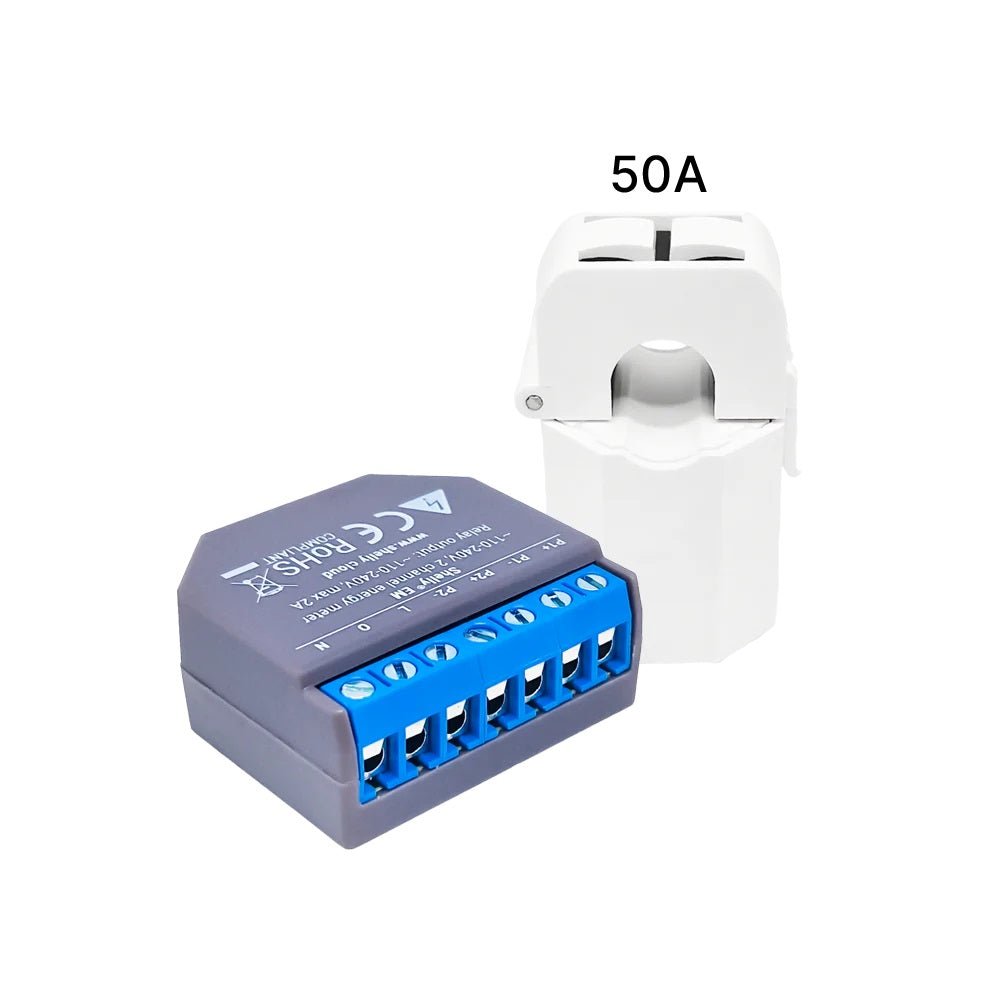

Shelly EM 1 x 50A Clamp
Shelly EM 1 x 50A Clamp
***we can provide different combinations of clamps so just get in touch if the combination you want isn't available.
Wi-Fi-operated Energy Meter and Contactor Control
Introducing the Shelly EM, a Wi-Fi-operated energy meter featuring contactor control for convenient usage. This innovative device provides power metering with two independent measurement channels, allowing you to monitor the energy consumption of your home appliances, electric circuits, and office equipment effortlessly. With a capability of measuring up to 120 A per channel, it can be used to efficiently handle heavy loads and is ideal for measuring solar energy production and/or monitoring household consumption. The Shelly app, along with various protocols, platforms, and voice assistants, ensures easy control and seamless integration into your smart home setup. Whether you want to manage multiple circuits on the same phase or individually, the Shelly EM offers versatility to meet your needs effectively.
Discover the power of Shelly EM! This innovative device allows you to monitor and control your home's energy consumption, helping you save money and reduce your carbon footprint. Say goodbye to wasted energy and hello to a more efficient and eco-friendly lifestyle with Shelly EM.
Power metering - two independent measurement channels
Current metering up to 120 A per channel
One contactor control (or load up to 2A)
Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
Specifications |
|
POWER |
|
Power supply AC |
110-230V ±10%, 50/60Hz |
Power supply DC |
No |
SPECIAL FUNCTIONS |
|
Contactor Control |
Yes – max 2A |
Roller shutter mode |
No |
Device temperature protection |
Yes |
Overload protection |
No |
Power measurement |
Yes |
FEATURES |
|
Channels |
2 Channel |
Operational temperature |
0 to + 40 °C |
Device power consumption |
< 1 W |
Intelligent On/Off |
Yes |
Local and remote control |
Yes |
Sunrise/Sunset |
Yes |
Weekly Schedule |
Yes |
CONNECTIVITY |
|
Wireless/WiFi Protocol |
802.11 b/g/n |
Radiofrequency |
2400 – 2500 MHz |
Range |
up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
DIMENSIONS |
|
Size |
39mm x 36mm x 17 mm |
Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
Shelly Smart Control App Google Play
Shelly Smart Control App Apple
