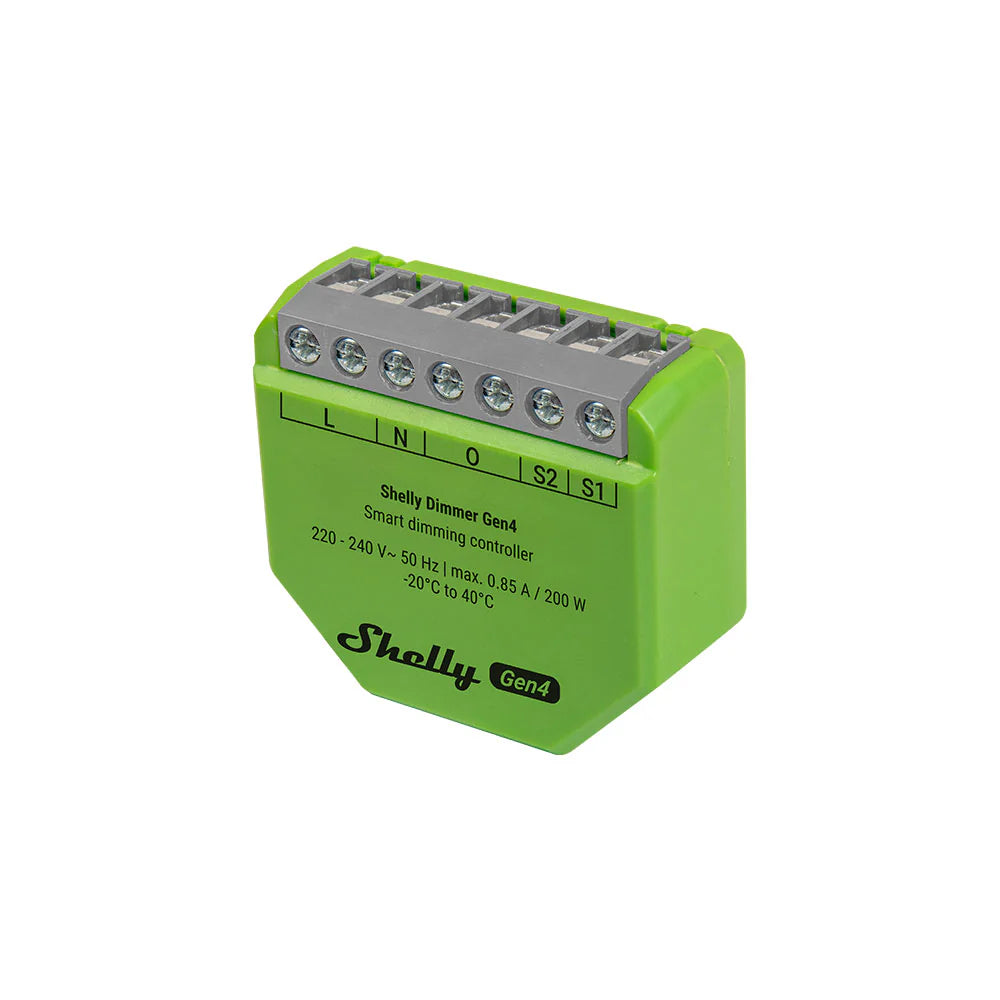

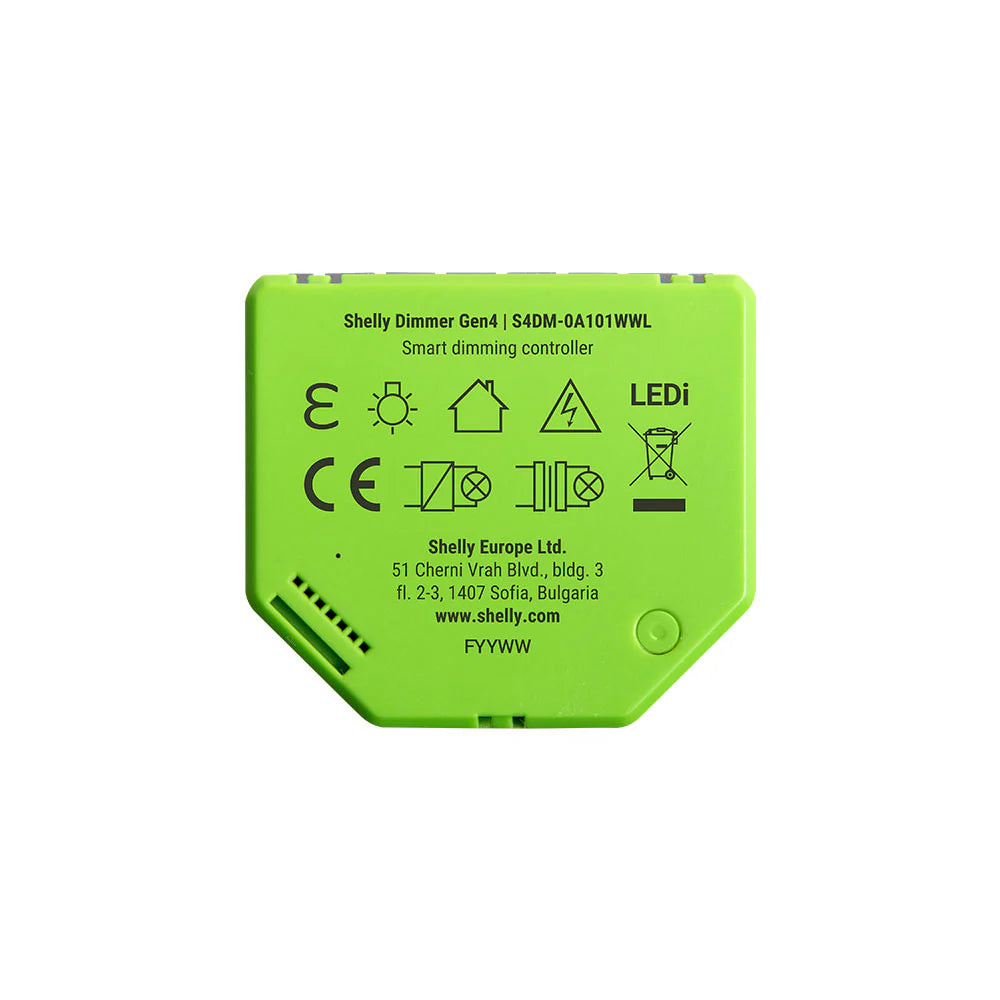

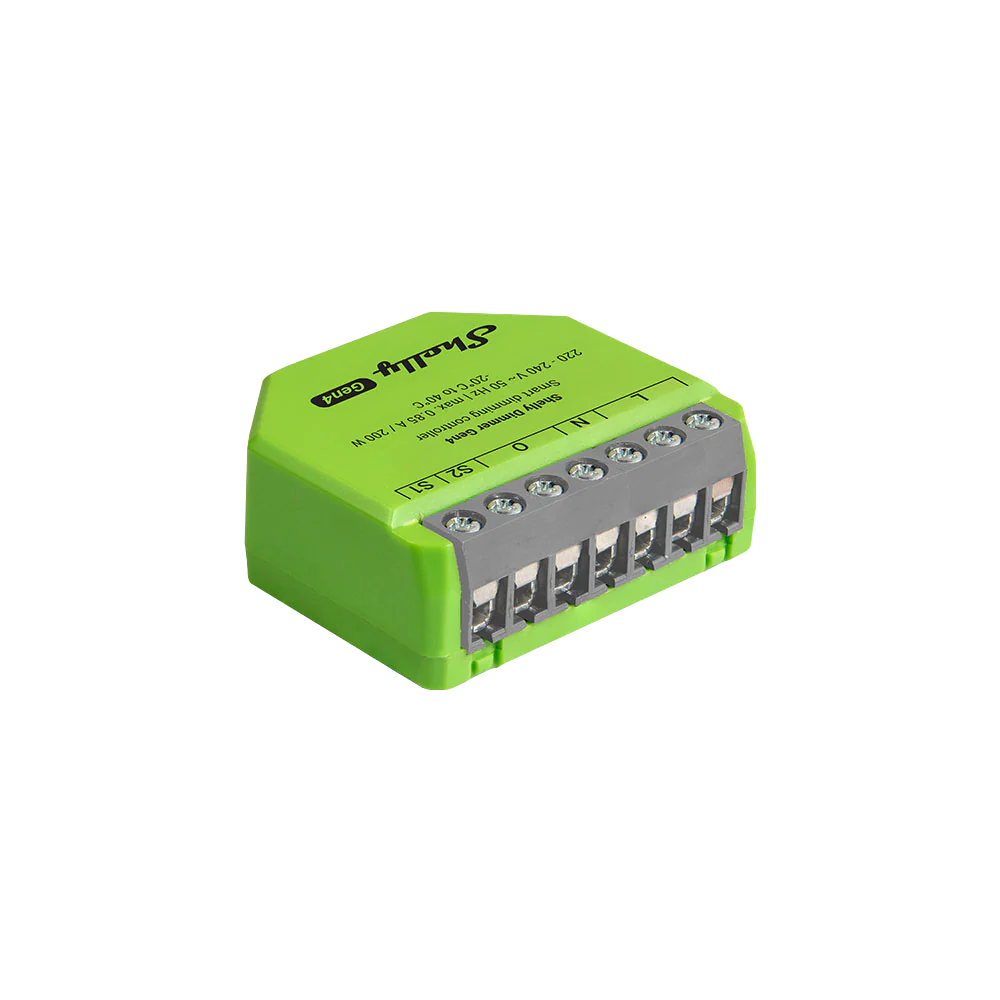

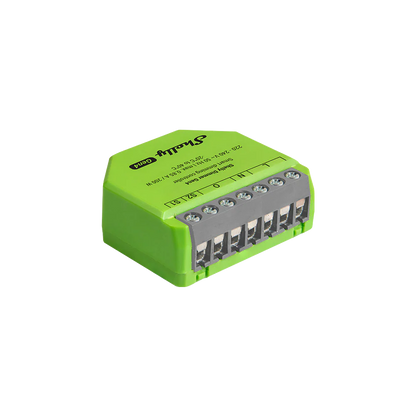

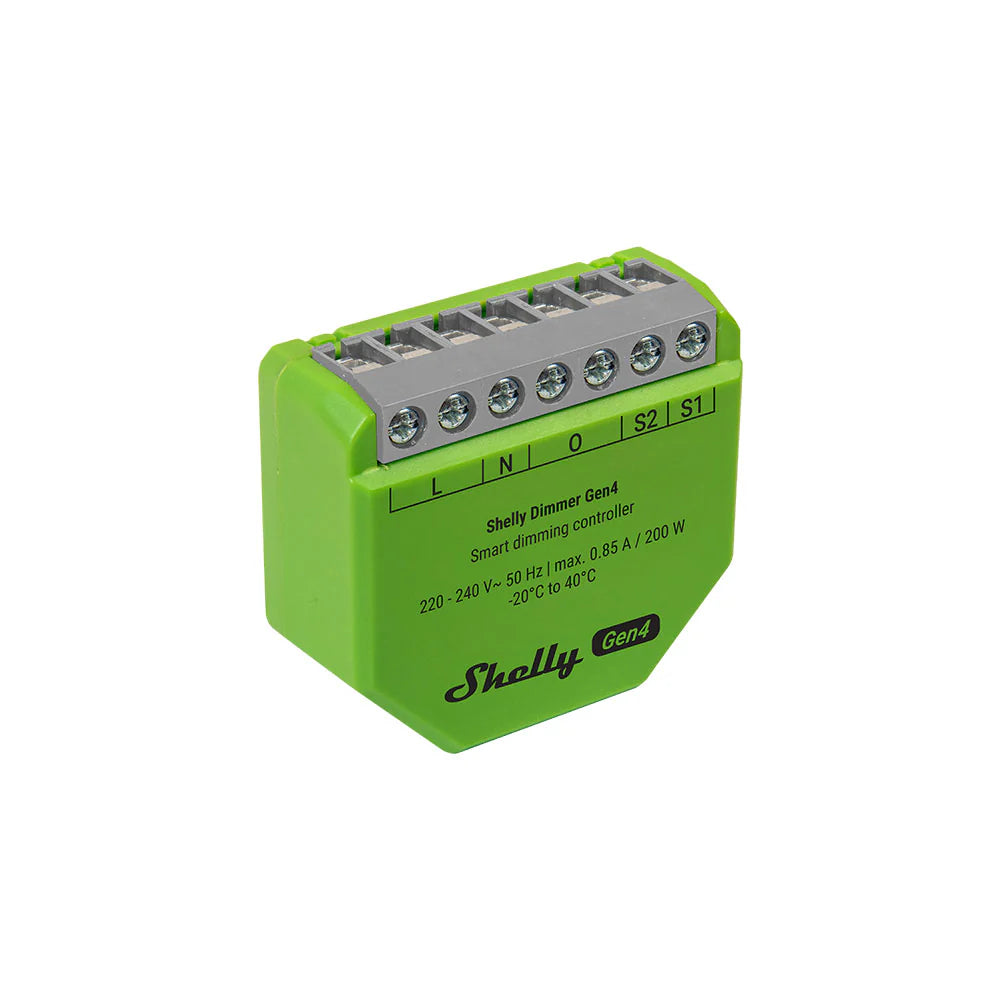

Shelly Dimmer Gen4
Typically used for:
- LED strips
- Dimming
- Lights
Multi-Protocol Dimmer (Wi-Fi, Bluetooth, Zigbee, Matter) – No neutral required!
Control and dim a wide range of halogen lights, dimmable LED bulbs and ferromagnetic transformers from anywhere. This is the world's smallest smart dimmer, now upgraded with multi-protocol support including Wi-Fi, Bluetooth, Zigbee, and Matter certification. No neutral wire is required for operation!
These relays go in behind your existing wall switches to make them 'Smart'. They can also be wired in at the other end with the device to be controlled.
Perfect for those who like the aesthetics of their current switches and don't want to swap them out or maybe the other half isn't so keen on new technology and wants the feel of classic switches.
Key Features:
-
Multi-Protocol Connectivity: Wi‑Fi, Bluetooth 5.0, Zigbee, and Matter-certified for universal compatibility.
- No need for neutral: Can be used without a neutral wire. Bypass is required when the device is used without neutral and the load is under 20 W.
- Supported light types: Dimmable LED lamps: up to 150 W Incandescent bulbs: up to 200 W Halogen lamps: up to 200 W Iron-core transformer with low-voltage incandescent lamps: up to 200 VA Dimmable electronic transformers: up to 200 W
- Overload and temperature protection
- Equipped with a new powerful processor & increased flash memory - ESP-Shelly-C68F / STM32 G051 (8MB Flash)
- Designed for installation in a limited space, such as wall mounts, electrical control panels, etc.
- Easy control through the Shelly app, as well as various protocols, platforms, and voice assistants.
Specifications
|
Physical |
|
|
Size (HxWxD): |
Length: 43.5 (mm) Width: 38.5 (mm) Height: 17 (mm) |
|
Weight: |
Weight: 0.0243 (kg) |
|
Screw terminals max torque: |
0.4 Nm |
|
Conductor cross section: |
0.2 to 2.5 mm² |
|
Conductor stripped length: |
5 to 6 mm |
|
Mounting: |
In-wall |
|
Shell material: |
Plastic |
|
Shell color: |
Shell: Lime Print: Black |
|
Connector color: |
Black |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 (m) |
|
Electrical |
|
|
Power supply: |
220-240 V~ 50 Hz |
|
Power consumption: |
< 1.5 W |
|
Neutral not needed: |
Yes |
|
Min. load without neutral and without a Bypass: |
20 W |
|
Dimming type |
Trailing edge |
|
External protection: |
16 A, tripping characteristic B or C, |
|
Short circuit protection |
Yes |
|
Output circuits ratings |
|
|
Max. output power: |
200 W |
|
Sensors, meters* |
|
|
Voltmeter range (AC): |
180 V - 240 V |
|
Voltmeter accuracy: |
± 5 % (when used with neutral) |
|
Ammeter range (AC) |
0 A - 3 A, |
|
Ammeter accuracy: |
± 5 % (when used with neutral) |
|
Internal-temperature sensor: |
Yes |
|
*Precise measurement is possible only when used with neutral. |
|
|
Radio |
|
|
Wi-Fi |
|
|
Protocol: |
802.11 b/g/n/ax |
|
RF band: |
2412 - 2472 МHz |
|
Max. RF power: |
< 20 dBm |
|
Range: |
Up to 30 m indoors and 50 m outdoors |
|
Bluetooth |
|
|
Protocol: |
5.0 |
|
RF band: |
2402 - 2480 MHz |
|
Max. RF power: |
< 4 dBm |
|
Range: |
Up to 10 m indoors and 30 m outdoors |
|
Microcontroller unit |
|
|
CPU: |
ESP-Shelly-C68F STM32 G051 |
|
Clock frequency: |
ESP32 C3: 40 Mhz |
|
Flash: |
8 MB |
|
Firmware capabilities |
|
|
Schedules: |
20 |
|
Webhooks (URL actions): |
20 with 5 URLs per hook… |
|
Scripting: |
Yes |
|
MQTT: |
Yes |
|
Advanced schedules: |
Yes |
|
KVS (Key-Value Store): |
Yes |
Australia and New Zealand Safety Standard (AS/NZS) compliant. SDoCs are available upon request for declared articles sold by Lykalyte. Some components and non-declared products may not require SDoCs under NZ regulations.
