Shelly DALI Dimmer Gen3
Shelly DALI Dimmer Gen3
Couldn't load pickup availability
Shelly DALI Dimmer Gen3
Typically used for:
- DALI Lighting Control
- Brightness Adjustment
- High-End Luminaires

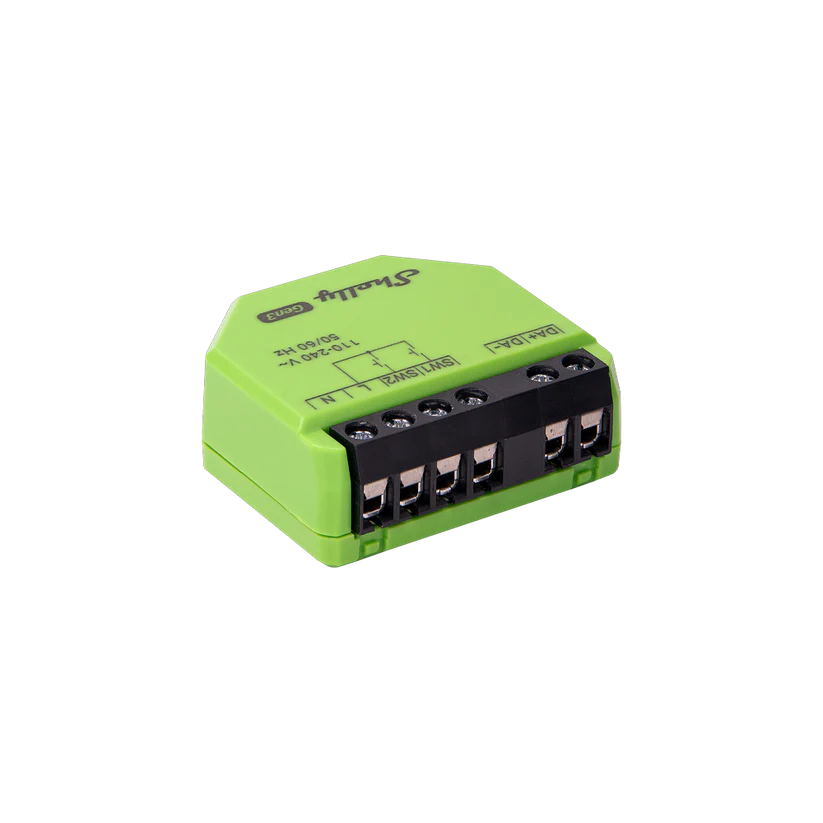

Seamlessly integrate your DALI lighting with your Shelly smart home. The Shelly DALI Dimmer Gen3 is a compact, advanced brightness control device designed to bridge your sophisticated DALI lighting network with your Shelly ecosystem.
Easily manage your DALI lighting from anywhere using the Shelly Smart Control app via Wi-Fi and Bluetooth. This powerful dimmer acts as a DALI single-master application controller, providing a guaranteed 10mA bus power supply for up to 5 DALI control gear units directly.

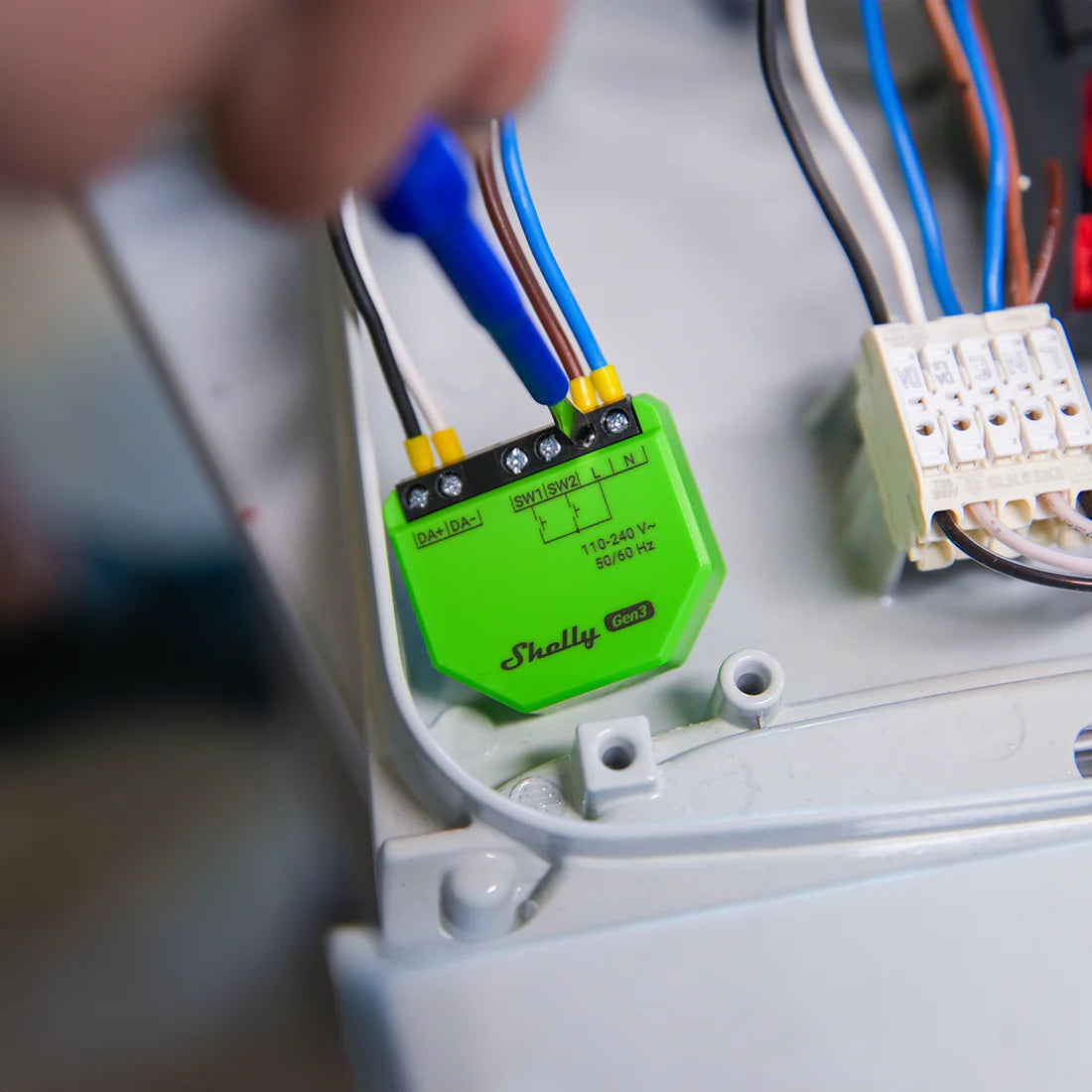

These relays go in behind your existing wall switches to make them 'Smart'. They can also be wired in at the other end with the device to be controlled. Perfect for those who like the aesthetics of their current switches and don't want to swap them out or maybe the other half isn't so keen on new technology and wants the feel of classic switches.
Key Features:
- Wi-Fi and Bluetooth operated (BLE gateway & Wi-Fi range extender included).
- DALI Single-Master Application Controller: Directly powers up to 5 DALI control gear units with a guaranteed 10mA bus supply.
- Smart Schedules & Night Mode: Create custom schedules and set preferred brightness for night hours.
- Min/Max Brightness Settings: Fine-tune your lighting with precise control.
- Customizable Dimming: Adjust button fade rate and transition duration for smooth lighting effects.
- New Processor & Increased Memory: Equipped with an ESP-Shelly-C38F chip and 8MB flash memory.
- Extensive Compatibility: Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS, custom certificates, Google Home, Amazon Alexa, and KNXnet/IP.
- No HUB required! Easy control through Shelly Smart Control app.
Specifications
|
Physical |
|
|
Size (HxWxD): |

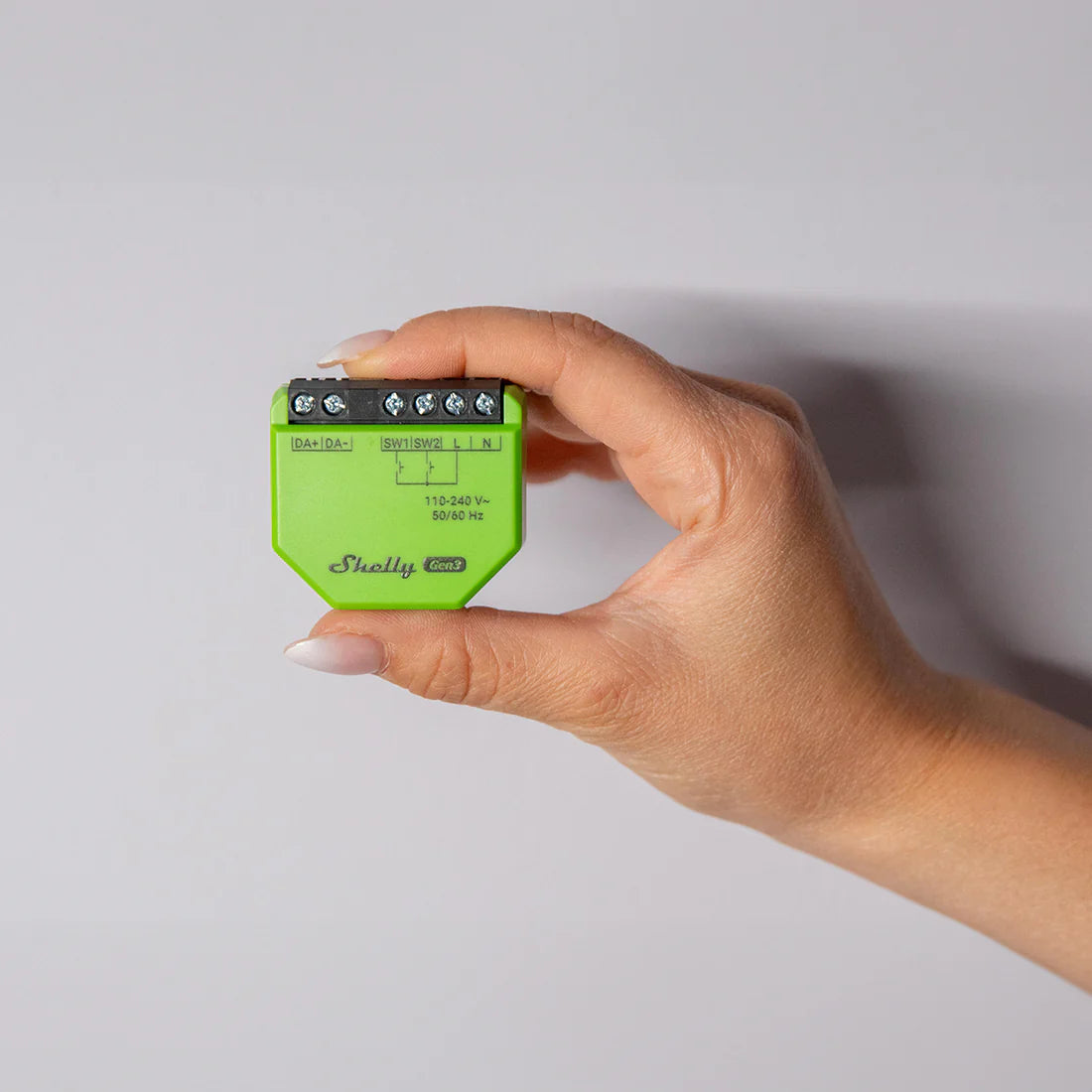

Length: 1.65 (Inches) 42 (mm) Width: 1.46 (Inches) 37 (mm) Height: 0.67 (Inches) 17 (mm) |
|
Weight: |
0.63 (oz) 18 (g) |
|
Screw terminals max torque: |
0.4 (Nm) 3.5 (lbin) |
|
Conductor cross section: |
0.2 to 2.5 (mm²) 24 to 14 (AWG) (solid, stranded, and bootlace ferrules) |
|
Conductor stripped length: |
6 to 7 (mm) 0.24 to 0.28 (in) |
|
Mounting: |
In-wall, suspended ceilings |
|
Shell material: |
Plastic |
|
Shell color: |
Green |
|
Terminals color: |
Black |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 (m) 6562 (ft) |
|
Electrical |
|
|
Power supply: |
110-240 V~ ±10% 50/60Hz |
|
Power consumption: |
< 2 W |
|
Bus power supply: |
Guaranteed 10mA (up to 5 DALI control gear units) |
|
Bus voltage: |
16V nominal |
|
Neutral not needed: |
No |
|
Sensors, meters |
|
|
Internal-temperature sensor: |
Yes |
|
Radio |
|
|
Wi-Fi |
|
|
Protocol: |
802.11 b/g/n |
|
RF band: |
2401 - 2495 MHz |
|
Max. RF power: |
< 20 dBm |
|
Range: |
Up to 30 (m) 98 (ft) indoors and 50 (m) 164 (ft) outdoors |
|
Bluetooth |
|
|
Protocol: |
4.2 |
|
RF band: |
2400 - 2483.5 MHz |
|
Max. RF power: |
< 4 dBm |
|
Range: |
Up to 10 (m) 33 (ft) indoors and 30 (m) 98 (ft) outdoors |
|
Microcontroller unit |
|
|
CPU: |
ESP-Shelly-C38F |
|
Flash: |
8MB |
|
Firmware capabilities |
|
|
Schedules: |
20 |
|
Webhooks (URL actions): |
20 with 5 URLs per hook |
|
Scripting: |
Yes |
|
MQTT: |
Yes |
|
Advanced schedules: |
Yes |
|
KVS (Key-Value Store): |
Yes |
Australia and New Zealand Safety Standard (AS/NZS) compliant. SDoCs are available upon request for declared articles sold by Lykalyte. Some components and non-declared products may not require SDoCs under NZ regulations.
