Shelly BLU Door/Window ZB
Shelly BLU Door/Window ZB
Couldn't load pickup availability
Typically used for:
- Instant Open/Close Detection for Doors, Windows & Gates
- Automated HVAC & Heating Cut-off When Windows Open
- Light Intensity (LUX) Sensor Integration for Room Lighting
- Subtle Intrusion Detection & Entryway Security Automations

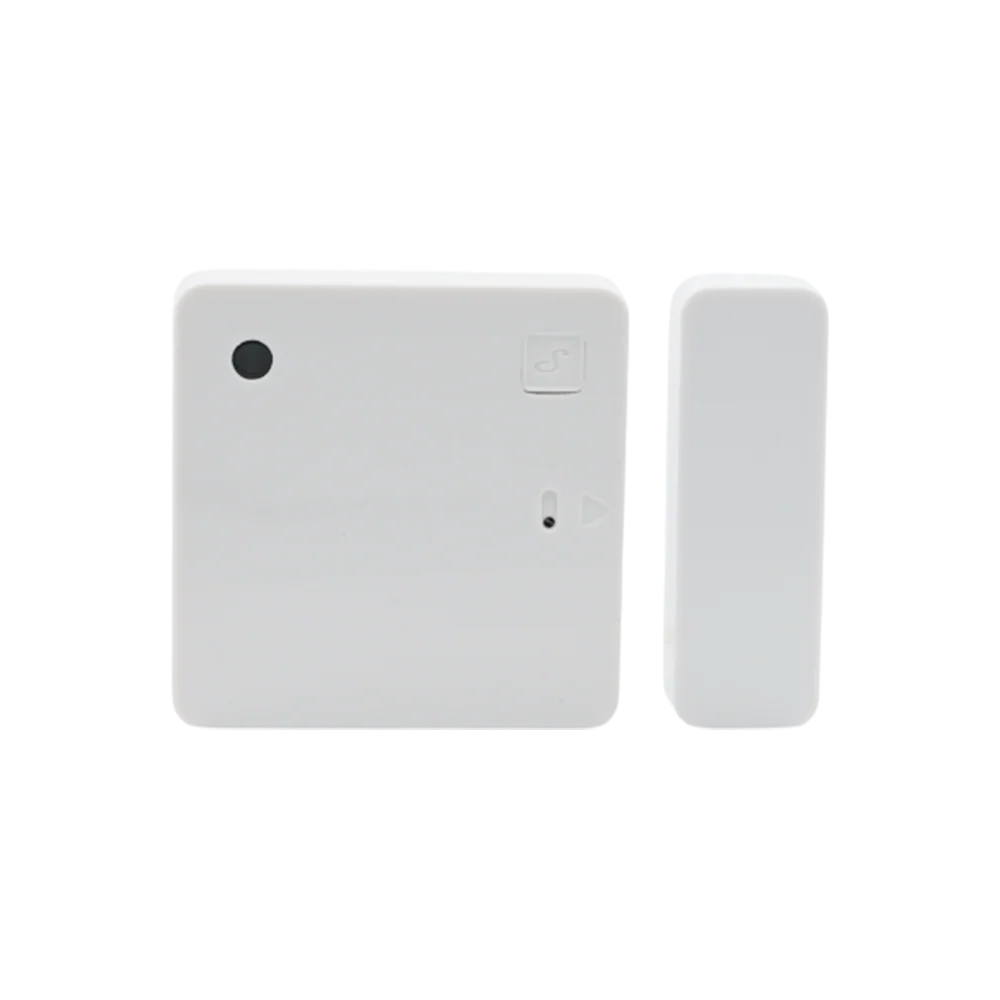

Keep track of your home's entry points with the Shelly BLU Door/Window ZB (White). Engineered with Zigbee 3.0 technology and Bluetooth 5 LE capabilities, this compact, battery-powered sensor detects the opening and closing of doors or windows near-instantaneously while measuring tilt angle and ambient illumination levels.
Equipped with an integrated light sensor (LUX) and inclination tracking, it enables advanced home automation—such as automatically switching off heating or air conditioning when a window is opened, or turning on lights when a door opens in low light conditions. Featuring ultra-low energy consumption, it operates seamlessly for years on a single coin cell battery.
Key Features:
- Dual Wireless Connectivity: Combines low-latency Zigbee 3.0 mesh networking with Bluetooth 5 LE (BTHome protocol) for maximum system interoperability.
- Multi-Sensor Detection: Measures open/close state, inclination/tilt angle, and ambient light intensity (LUX) within a single compact device.
- Energy Efficiency Automation: Easily trigger scenes to pause heating or cooling systems when windows remain open to prevent energy waste.
- Multi-Year Battery Operation: Powered by a standard CR2032 battery, delivering up to 5 years of maintenance-friendly daily operation.

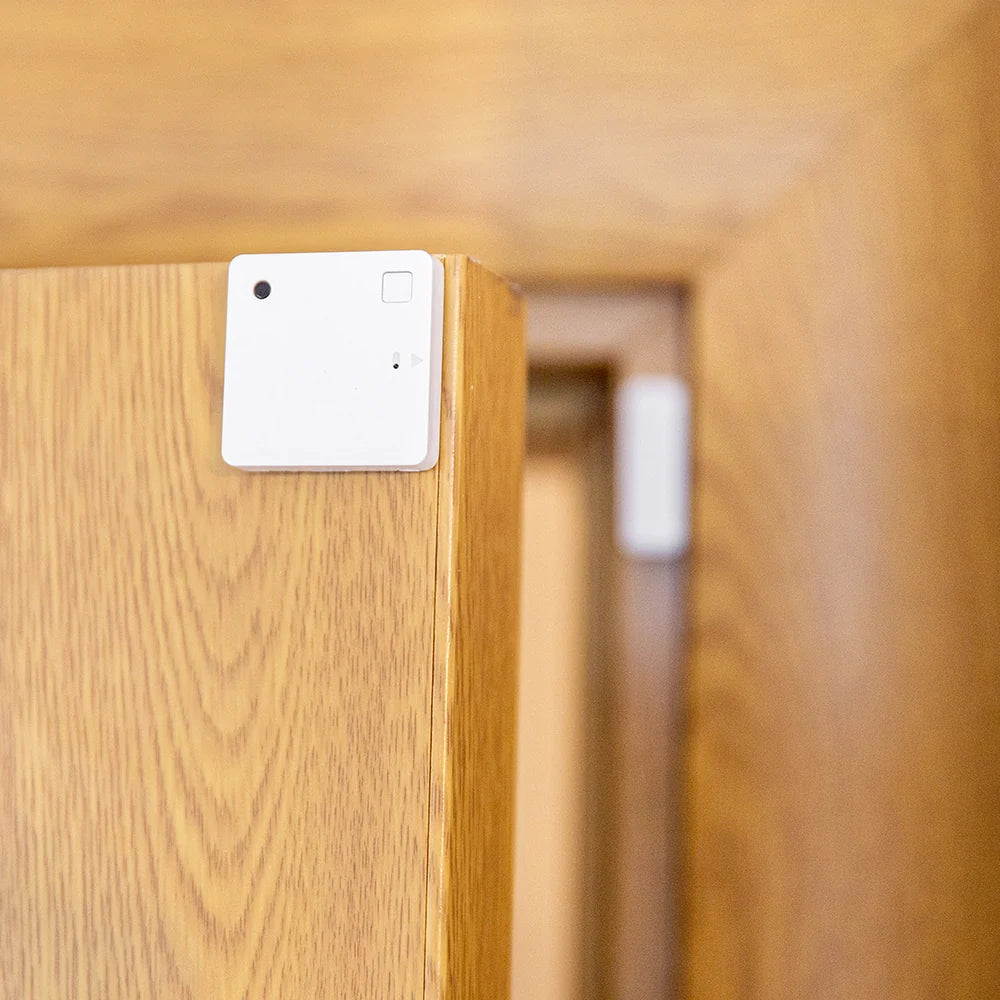

- Subtle, Cable-Free Installation: Compact design with included double-sided adhesive allows discreet mounting on frames and doors without drilling.
Specifications
|
Physical |
|
|
Size (HxWxD): |
Sensor unit: 35x35x7 mm | Magnet unit: 35x12x7 mm |
|
Weight: |
10 g (sensor unit with battery) | 8 g (magnet unit) |
|
Mounting: |
Double-sided adhesive tape (included) |
|
Shell material: |
Plastic |
|
Shell color: |
White |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C |
|
Working humidity: |
30 % to 70 % RH |
|
Electrical & Power |
|
|
Power supply: |
1 x 3 V CR2032 battery (included) |
|
Battery life: |
Up to 5 years (dependent on daily activations) |
|
Sensors & Capabilities |
|
|
Reed sensor: |
Yes (Open / Close state detection) |
|
Tilt sensor: |
Yes (Inclination angle tracking) |
|
Light sensor (LUX): |
Yes |
|
Radio & Connectivity |
|
|
Zigbee protocol: |
Zigbee 3.0 (IEEE 802.15.4) |
|
Bluetooth protocol: |
Bluetooth 5.0 LE (BTHome support) |
|
Operational frequency: |
2400 - 2483.5 MHz |
|
Max. RF power: |
< 10 dBm |
|
Wireless range: |
Up to 10 m indoors | Up to 30 m outdoors (depending on local conditions) |
|
Gateway / Platform compatibility: |
Shelly Plus, Pro, Gen3, Gen4 series; standard Zigbee 3.0 hubs; Home Assistant (BTHome / Zigbee) |
*NOTICE! This device supports both Zigbee 3.0 and Bluetooth LE. For full Zigbee integration, a compatible Zigbee 3.0 hub or coordinator is required. Bluetooth features can function via Shelly Plus/Pro/Gen3/Gen4 gateways or BTHome receivers.
Australia and New Zealand Safety Standard (AS/NZS) compliant. SDoCs are available upon request for declared articles sold by Lykalyte. Some components and non-declared products may not require SDoCs under NZ regulations.
