Shelly 80A Current Transformer Clamp Gen3
Shelly 80A Current Transformer Clamp Gen3
Couldn't load pickup availability
Typically used for:
- Residential Energy Monitoring
- Commercial Sub-Circuit Tracking
- Solar Export & Generation Auditing
- Smart Automation Load Shedding

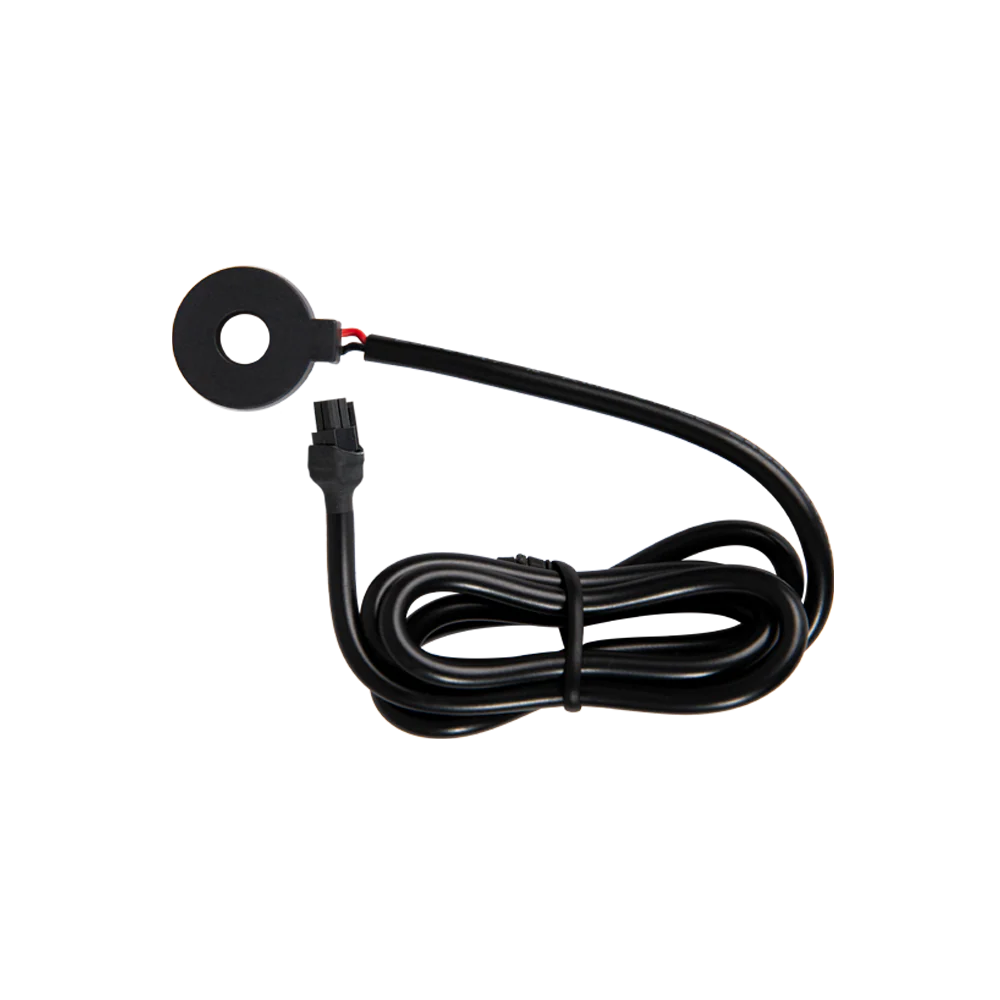

Scale down and capture precise electricity metrics with the Shelly 80A Current Transformer (CT) with Connector. Designed specifically to seamlessly interface with modern energy monitors, this contact-free solid-core transformer reads high current lines up to 80 Amps and converts them safely into precise, low-voltage secondary signals for real-time calculation.
Equipped with a pre-terminated Molex-style plug and a 60 cm trailing cable, it allows you to easily connect secondary monitoring lines directly into your device without manual slicing or wiring modifications. Perfect for splitting paths inside switchboards or targeting individual sub-circuits, it gives you deep insights into power consumption and load patterns across your installation.
Key Features:
- High-Capacity Measurement: Accurately tracks current on active or neutral AC mains up to 80A.
- Pre-Terminated Connection: Features an integrated hardware plug for secure, snap-in connection directly into your compatible energy meter.
- Zero-Disruption Monitoring: Fits around the outside of existing insulated conductors without needing to cut or open the copper path.
- Minimal Circuit Burden: Imposes negligible load impedance on your primary lines to guarantee measurement integrity and system efficiency.
- High-Strength Electrical Isolation: Rated for up to 3000VAC protection to isolate delicate low-voltage smart components from main power fluctuations.
Specifications
|
Physical & Installation |
|
|
Cable length: |
600 mm |
|
Internal diameter (Aperture): |
7 mm |
|
Maximum wire size: |
4 mm (Up to 6-10 mm² total cross-section physical wire fitment) |
|
Connector type: |
Pre-terminated inline plug |
|
Core material: |
Solid Ferrite core |
|
Performance & Electrical Specs |
|
|
Rated primary current: |
80 A |
|
Measurement accuracy: |
1% |
|
Load resistance: |
20 Ω |
|
Electrical strength: |
3000 VAC 1 mA / 60s |
|
Device Compatibility |
|
|
Supported hardware: |
Shelly EM Gen3, Shelly EM Gen4 |
Installation Note: Always update your connected device's configuration settings to reflect an 80A CT transformer profile. Leaving the hardware profile on a default value may cause current telemetry calculations to display higher values than actual usage.
Australia and New Zealand Safety Standard (AS/NZS) compliant. SDoCs are available upon request for declared articles sold by Lykalyte. Some components and non-declared products may not require SDoCs under NZ regulations.
