Lykalyte

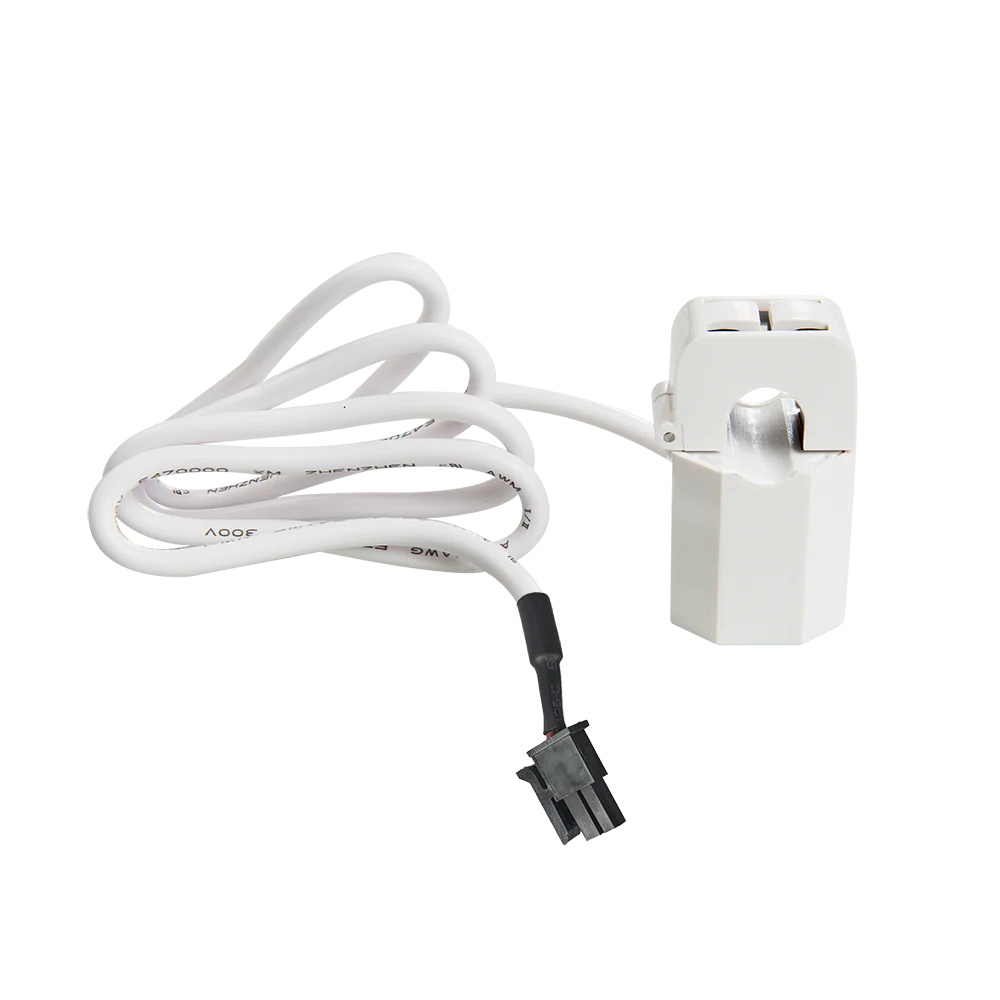

Shelly 50A Current Transformer Clamp Gen3
Shelly 50A Current Transformer Clamp Gen3
Regular price
$40.99
Regular price
Sale price
$40.99
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Shelly current transformers (CTs) convert large currents into small, standardized values for precise measurement. They deliver a secondary current that is accurately proportional to the primary current, ensuring reliable data. These transformers impose a minimal load on the primary circuit, optimizing efficiency and performance. Perfect for accurate monitoring and control in various applications.
The length of the CT clamp's cables is 60 cm.
*Compatible with Shelly Pro EM and Shelly EM Gen3
Specifications
| CURRENT TRANSFORMER 50A | |
|---|---|
| Accuracy | 1% |
| Core | Ferrite core |
| Electrical Strength | 3000VAC 1mA60s |
| Internal diameter | 11mm |
| Cable length | 60cm |
| Load Resistance | 20Ω |
| Rated Primary Current | 50A |
| Rated Secondary Current | 16.67mA |
| Saturation current | ≥85A |
| Size | 23,5mm x 41,5mm x 26mm |
| CURRENT TRANSFORMER 120A | |
| Accuracy | 1% |
| Core | Ferrite core |
| Electrical Strength | 3000VAC 1mA60s |
| Internal diameter | 17mm |
| Load Resistance | 20Ω |
| Rated Primary Current | 120A |
| Rated Secondary Current | 40mA |
| Saturation current | ≥120A |
| Size | 31mm x 45mm x 30mm |
| FEATURES | |
| Compatible 50A | Shelly Pro EM and Shelly EM Gen3 |
