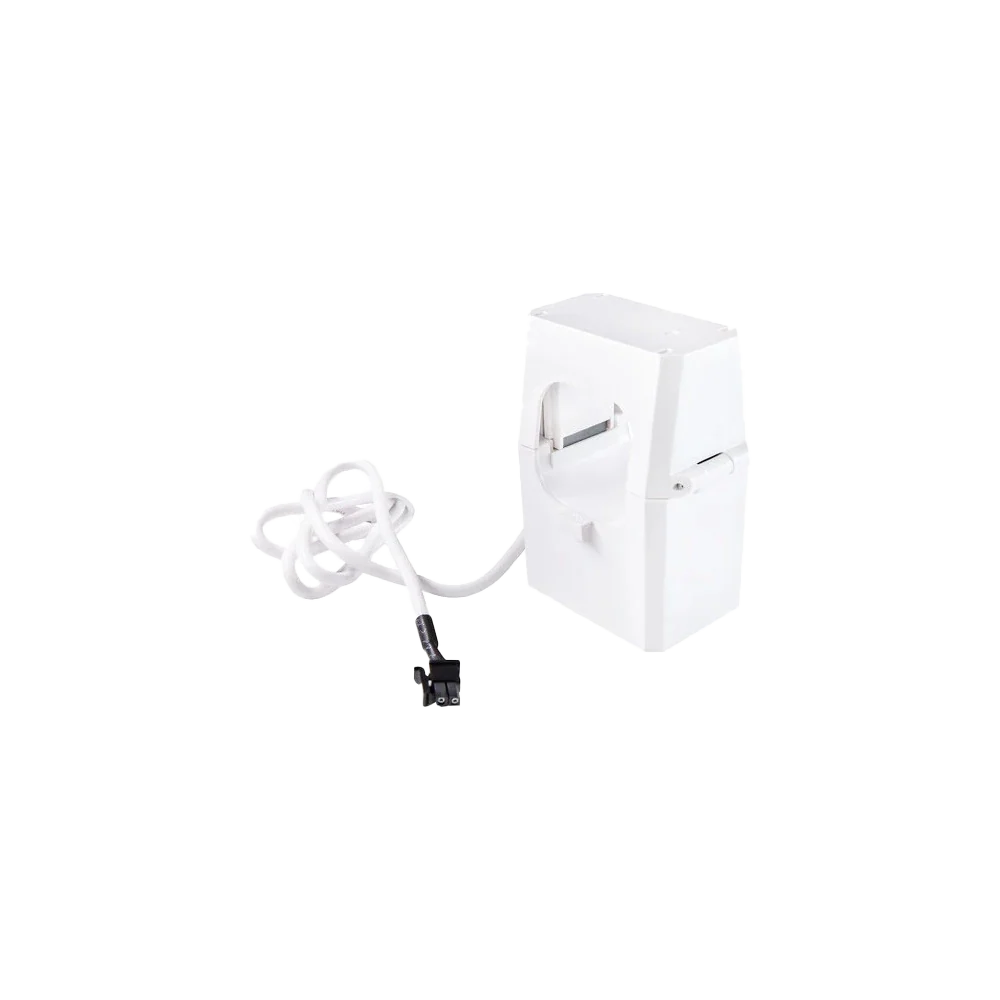

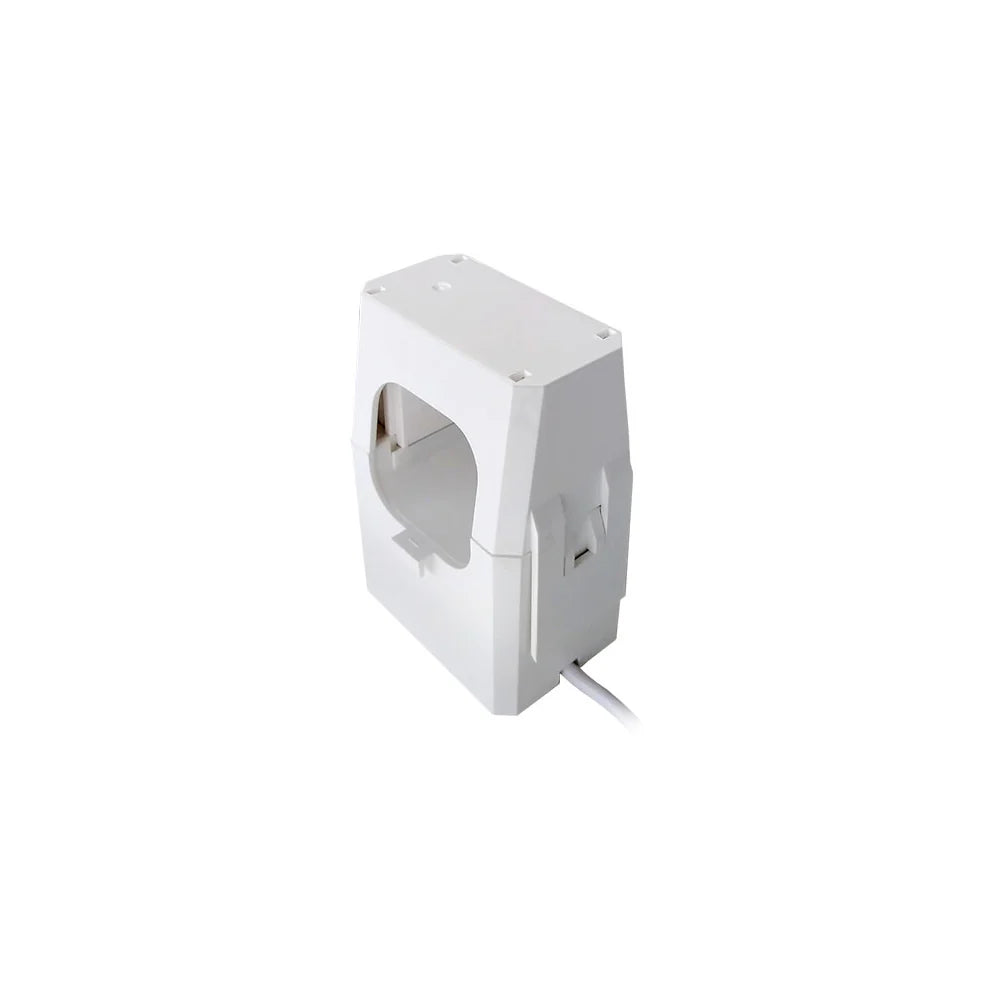

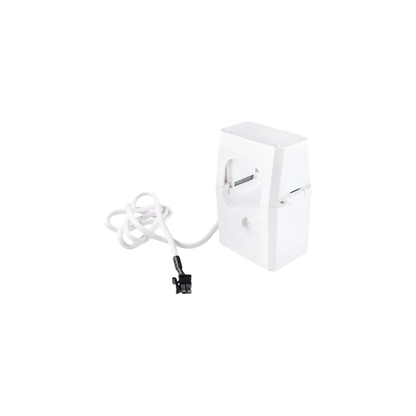

Shelly 400A Current Transformer Clamp

Shelly 400A Current Transformer Clamp

$189.99
$189.99
Sale Sold out
Taxes included. Shipping calculated at checkout.

Shelly current transformers (CTs) convert large values of current to small, standardized values for precise energy measurement. They provide a secondary current that is accurately proportional to the current flowing in its primary circuit. The current transformer presents a negligible load to the primary circuit.

The length of the CT clamp's cable is 60 cm.

*Compatible only with Shelly Pro 3EM-400A

CURRENT TRANSFORMER 400A SPECIFICATIONS
PHYSICAL
Size (HxWxD) (Without Cable) 84 x 54 x 48 ±0.5 mm
Weight (With Cable) 290 ±1 g
Conductor Aperture (Internal Ø) 35 mm
Core Material Ferrite
Shell Material / Color Plastic / White
ENVIRONMENTAL
Ambient Temperature -10 °C to 50 °C
Humidity 0% to 80% RH
Max. Altitude 2000 m
ELECTRICAL
Rated Primary Current (Max) 400 A
Primary/Secondary Current Ratio 3000/1
Electrical Strength 3000 VAC, 60 sec
COMPATIBILITY
Compatible With Shelly Pro 3EM-400A only
