Shelly 3EM
Shelly 3EM
Couldn't load pickup availability

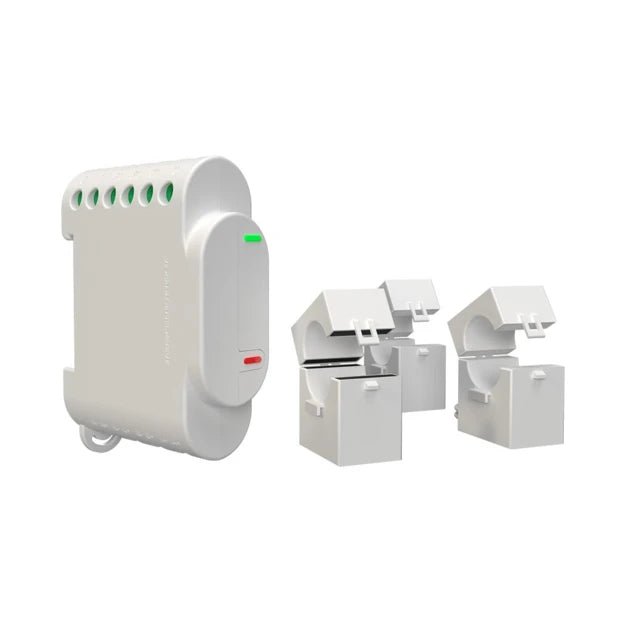

DIN mounted Energy Meter and Contactor Control with Wi-Fi
Introducing Shelly 3EM - the ultimate home energy management solution! Stay in control of your energy usage with the powerful features of Shelly 3EM. Save money, reduce your carbon footprint, and be more environmentally conscious - all with Shelly 3EM.
- Three independent measurement channels up to 120 A each
- Contactor control (any size load it is rated for)
- Reports power, voltage, current, overall energy, and power factor
- 365 days of internal memory in case Wi-Fi is not available
- Included 3x Current Transformers 120 A
- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
Power metering - 3 independent measurement channels (can be combined for 3 phase monitoring)
Current metering up to 120 A per channel (3 x 120A Current Transformers Included)
One contactor control (or load up to 10A)
Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
|
Specifications |
|
|
POWER |
|
|
Power supply AC |
110-230V ±10%, 50/60Hz |
|
Power supply DC |
No |
|
SPECIAL FUNCTIONS |
|
|
Contactor Control |
Yes – max 10A |
|
Roller shutter mode |
No |
|
Device temperature protection |
Yes |
|
Overload protection |
No |
|
Power measurement |
Yes |
|
FEATURES |
|
|
In Box |
Included 3x 120A Current Transformers |
|
Channels |
3 Channel |
|
Operational temperature |
0 to + 40 °C |
|
Device power consumption |
< 1 W |
|
Intelligent On/Off |
Yes |
|
Local and remote control |
Yes |
|
Sunrise/Sunset |
Yes |
|
Weekly Schedule |
Yes |
|
CONNECTIVITY |
|
|
Wireless/WiFi Protocol |
802.11 b/g/n |
|
Radiofrequency |
2400 – 2500 MHz |
|
Range |
up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
|
DIMENSIONS |
|
|
Size |
73 mm x 57 mm x 22 mm |
Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
