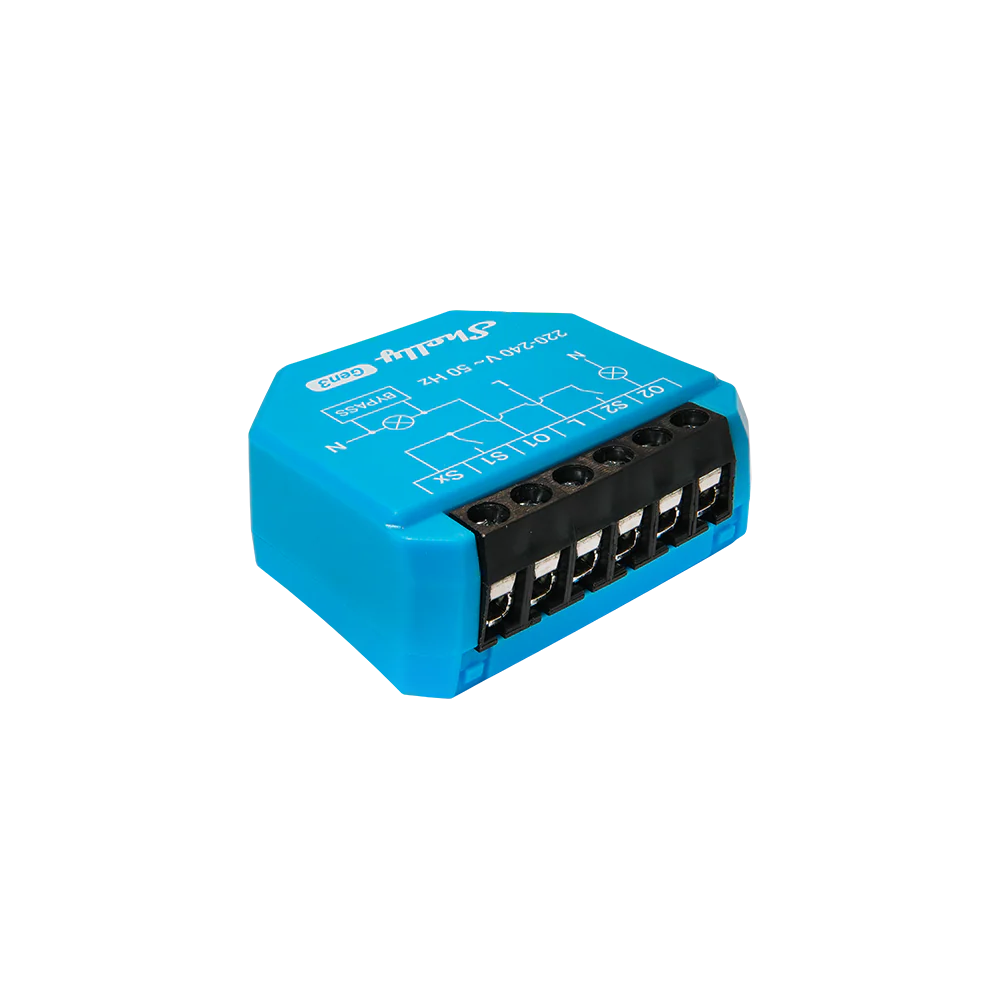

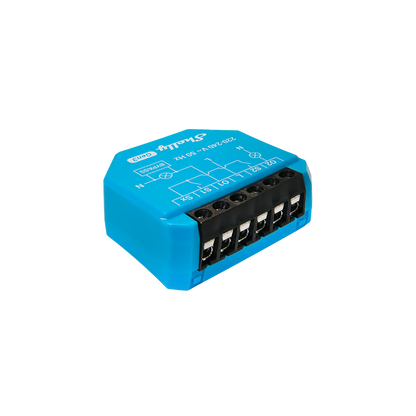

Shelly 2L Gen3 2 Channel Smart Relay
Typically used for:
- Lighting Control
- Appliances
Introducing the Shelly 2L Gen3, a compact two-channel smart switch designed for precise lighting control in installations that do not have a neutral wire. This versatile device can be operated as a standalone unit on a local Wi-Fi network or integrated with cloud home automation services. It is compatible with a wide range of lights and features an internal temperature sensor for overheating protection.
No Neutral Wire Required

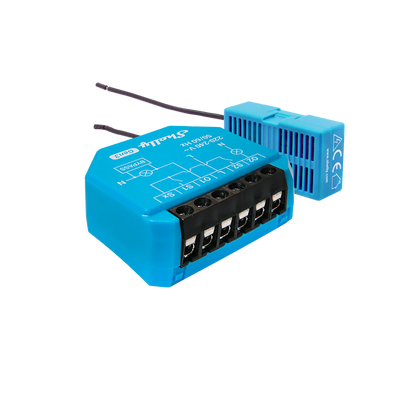

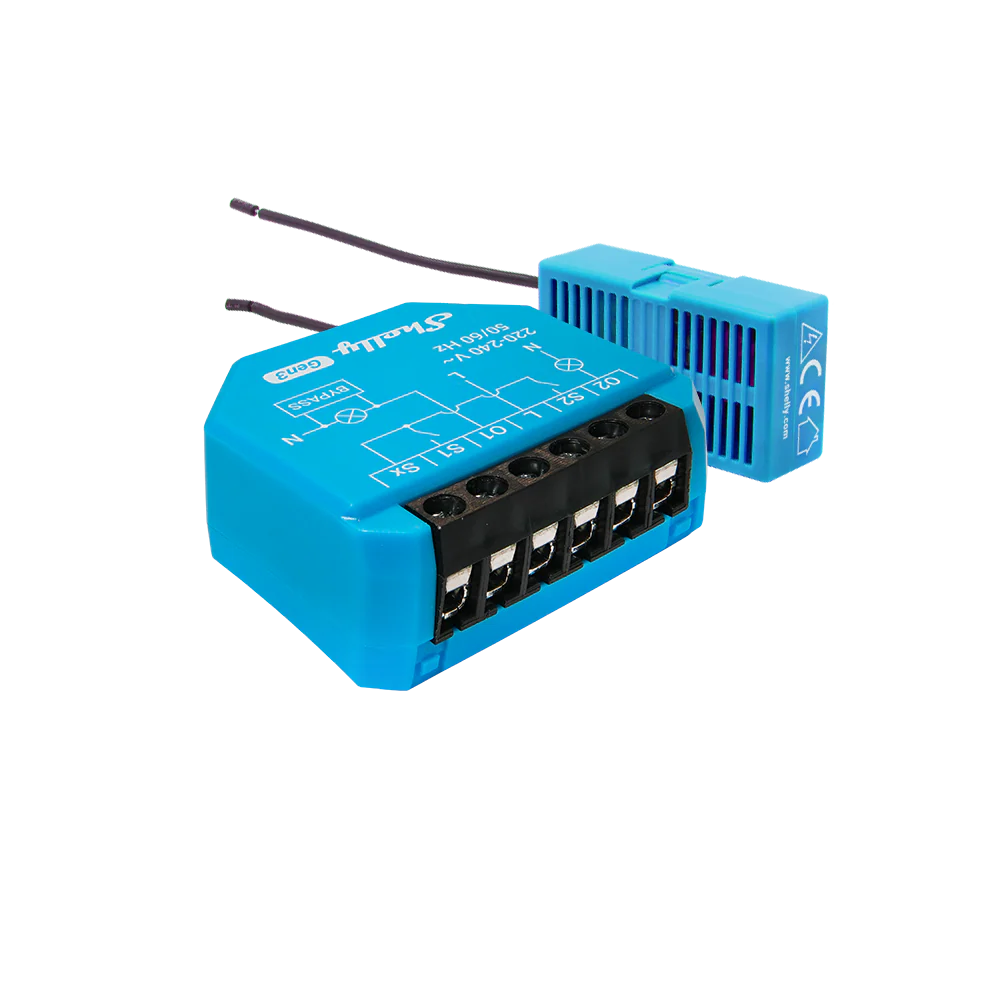

The Shelly 2L Gen3 works without a neutral wire, making it perfect for older homes or rooms where a neutral wire is not available. It includes a Shelly Bypass 1L/2L to operate without a neutral. The device supports various loads on its two output terminals: up to 200W on output 1 and up to 700W on output 2.
Matter Ready
With a future firmware update, the Shelly 2L Gen3 will be Matter ready, allowing for even wider compatibility with other smart home devices and platforms.
Mobile App Control
Turn devices on/off directly from your smartphone or tablet.
Wi-Fi Connected
Just connect Shelly to your Wi-Fi network and begin the ultimate experience of controlling your home with your phone.
Voice assistant compatible
Control your appliance with your voice. Shelly OS is Google Home and Amazon Echo Compatible.
Weekly Scheduling
Create custom daily schedules for your devices.
Free Cloud
All you need to manage your Shelly 2L Gen3 is a smartphone and the Shelly Cloud free mobile application.
Countdown timer
No more forgotten appliances left on. The integrated countdown timer can automatically switch off your oven after an hour.
Key Features:
- No neutral wire required
- Matter compatible (via firmware update)
- New processor - ESP-Shelly-C68F chip with an increased memory of 8 MB
- Improved durability of terminals
- Wi-Fi range extender & Bluetooth gateway
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
- No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants.
Specifications
|
Physical |
|
|
Size (HxWxD): |
37 x 42 x 16 mm |
|
Weight: |
25 g |
|
Environmental |
|
|
Ambient working temperature: |
-20°C to 40°C |
|
Electrical |
|
|
Power supply AC: |
220 - 240 V~ |
|
Power consumption: |
< 1.2 W |
|
Output circuits ratings |
|
|
Max. switching voltage AC: |
240 V~ |
|
Max. switching current AC: |
4.1A |
|
Max. load (Output 1): |
200 W |
|
Max. load (Output 2): |
700 W |
|
Radio |
|
|
Wi-Fi |
|
|
Protocol: |
802.11 b/g/n |
|
RF band: |
2412 - 2472 MHz |
|
Max. RF power: |
< 20 dBm |
|
Range: |
Up to 30 m indoors and 50 m outdoors |
|
Bluetooth |
|
|
Protocol: |
4.2 |
|
RF band: |
2402 - 2480 MHz |
|
Max. RF power: |
< 4 dBm |
|
Range: |
Up to 10 m indoors and 30 m outdoors |
|
Microcontroller unit |
|
|
CPU: |
ESP-Shelly-C68F |
|
Flash: |
8MB |
|
Firmware capabilities |
|
|
Schedules: |
20 |
|
Webhooks (URL actions): |
20 with 5 URLs per hook |
|
Scripting: |
Yes |
|
MQTT: |
Yes |
Australia and New Zealand Safety Standard (AS/NZS) compliant. SDoCs are available upon request for declared articles sold by Lykalyte. Some components and non-declared products may not require SDoCs under NZ regulations.
