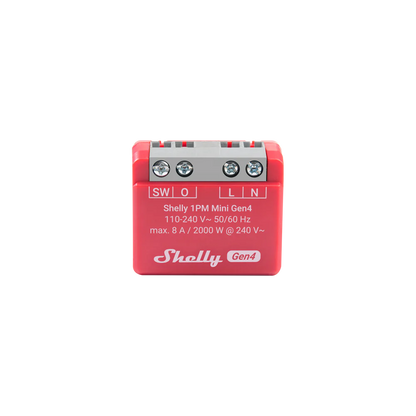

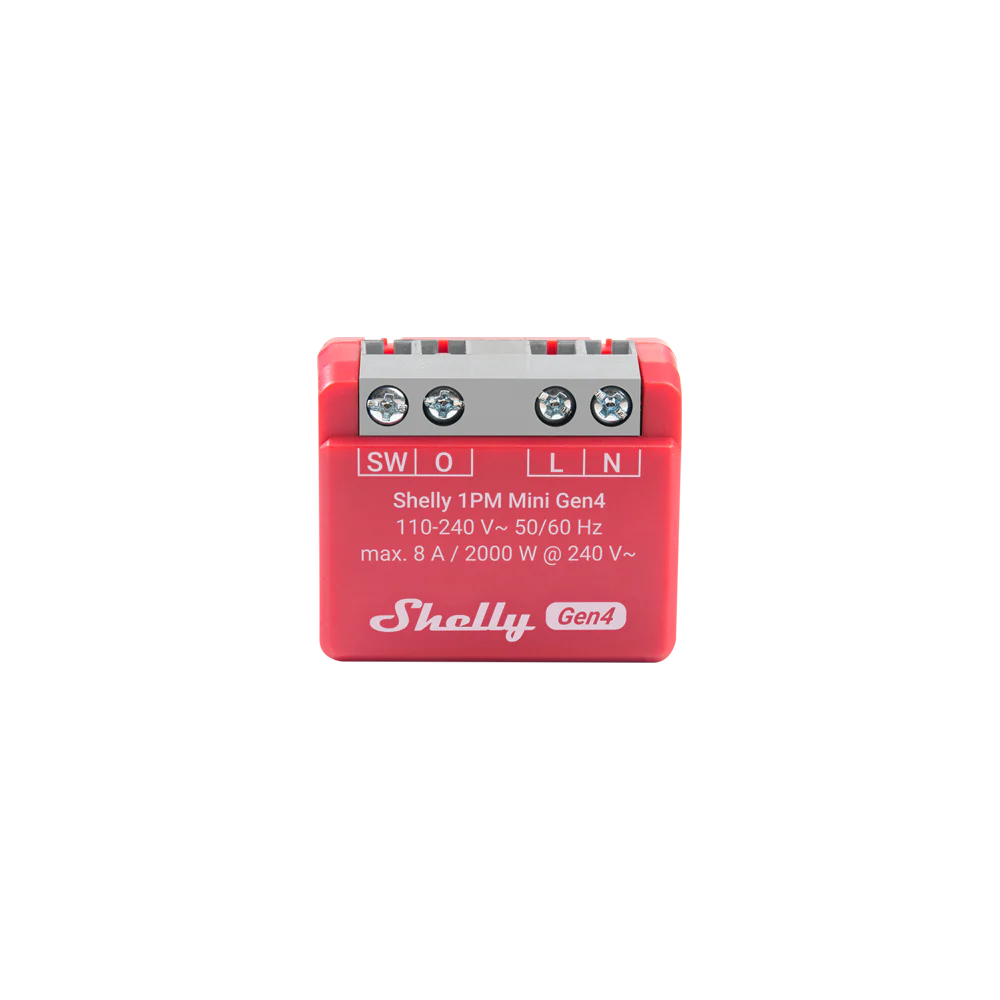

Shelly 1PM Mini Gen4
Shelly 1PM Mini Gen4
Couldn't load pickup availability
Typically used for:
- Lights
- Small office/home appliances
The Shelly 1PM Mini Gen4 is a compact smart switch with power measurement capabilities. It allows for remote control of electrical appliances through a mobile phone, tablet, PC, or home automation system. It can function in a local Wi-Fi network or through cloud home automation services. This device is an improved version of the Shelly 1PM Mini Gen3, featuring a more advanced processor and Zigbee connectivity. It can be installed in standard electrical wall boxes, behind power sockets, light switches, or other areas with limited space.
Control your devices directly from your smartphone or tablet using the intuitive mobile app. Connect Shelly 1PM Mini Gen4 to your Wi-Fi network for easy home management and energy monitoring.
Key Features:
- Power Measurement: Track energy consumption.

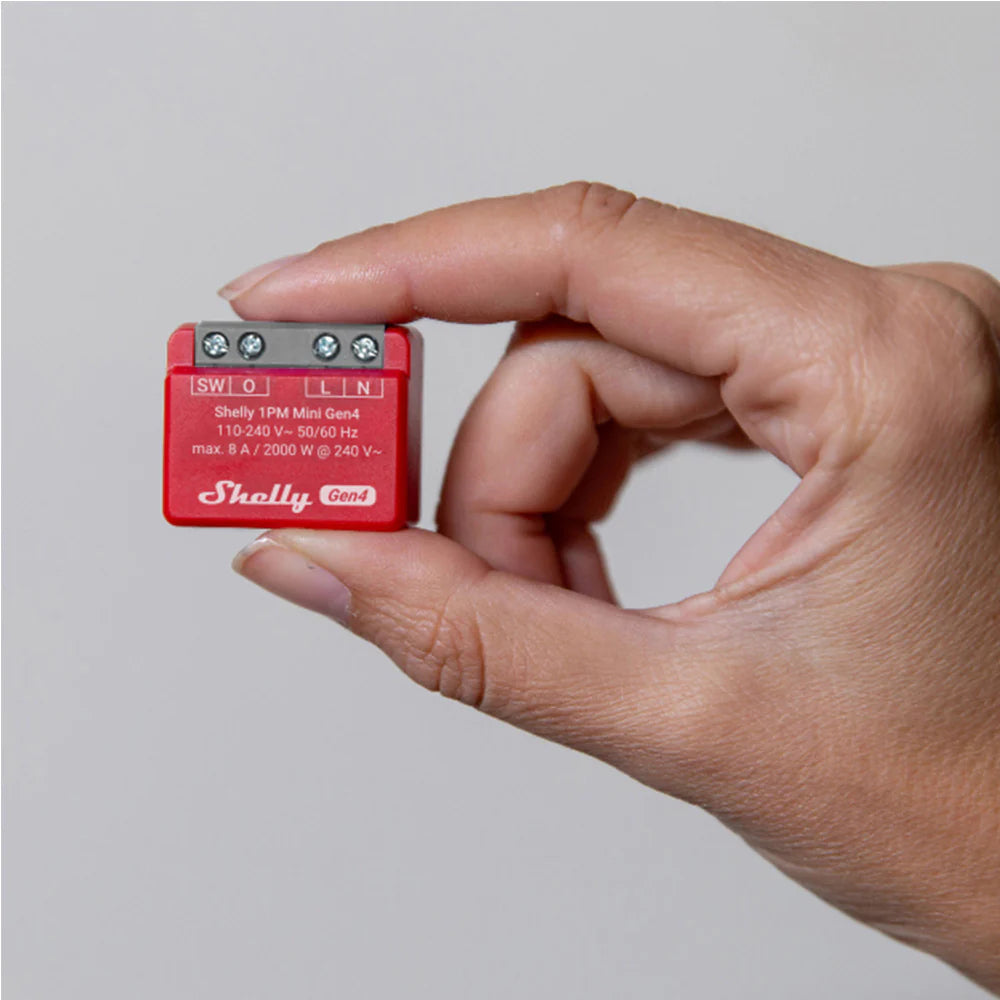

- Compact Design: Small form factor for easy installation in tight spaces.
- Multi-protocol connectivity: Wi-Fi, Bluetooth, Zigbee, and Matter
- Matter certified: Integrates into any Matter ecosystem
- Works with Apple HomeKit: Control connected devices using Apple Home app or Siri
Specifications
|
Physical |
|
|
Size (HxWxD): |
29x34x16 ±0.5 mm |
|
Weight: |
18 ±1 g |
|
Mounting: |
Wall box |
|
Shell material: |
Plastic |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 m |
|
Electrical |
|
|
Power supply: |
110 - 240 VAC |
|
Relay: |
Dry, NO contact, 1-pole, µ contact |
|
Power consumption: |
< 1.2 W |
|
External protection: |
Tripping characteristic B or C, max. 10A max. rated current, min. 6 kA interrupting rating, energy limiting class 3 |
|
Output circuits ratings |
|
|
Max. switching voltage: |
240 VAC. 30 VDC |
|
Max. switching current: |
8 A/240 VAC. 5 A/30 VDC |
|
Max. output power: |
2000 W/240 VAC. 150 W/30 VDC |
|
Sensors, meters |
|
|
Voltmeter (AC): |
Yes |
|
Internal-temperature sensor: |
Yes |
|
Radio |
|
|
Wi-Fi |
|
|
Protocol: |
802.11 b/g/n/ax |
|
RF band: |
2412 - 2472 МHz |
|
Max. RF power: |
< 20 dBm |
|
Range: |
Up to 30 m indoors and 50 m outdoors (Depends on local conditions) |
|
Bluetooth |
|
|
Protocol: |
5.0 |
|
RF band: |
2402 - 2480 MHz |
|
Max. RF power: |
< 4 dBm |
|
Range: |
Up to 10 m indoors and 30 m outdoors (Depends on local conditions) |
|
Zigbee |
|
|
Protocol: |
802.15.4 |
|
Max. RF power: |
< 20 dBm |
|
Range: |
Up to 100 m indoors and 300 meters outdoors (Depends on local conditions) |
|
Microcontroller unit |
|
|
CPU: |
ESP-Shelly-C68F |
|
Flash: |
8 MB |
|
Firmware capabilities |
|
|
MQTT: |
Yes |
Max Load is the Maximum rated Load and it is not recommended that this device is used for anything more than short duration at or near the Maximum.
Higher loads require sufficient allowance for excess heat.
Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
