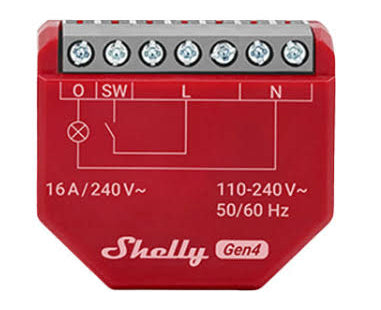

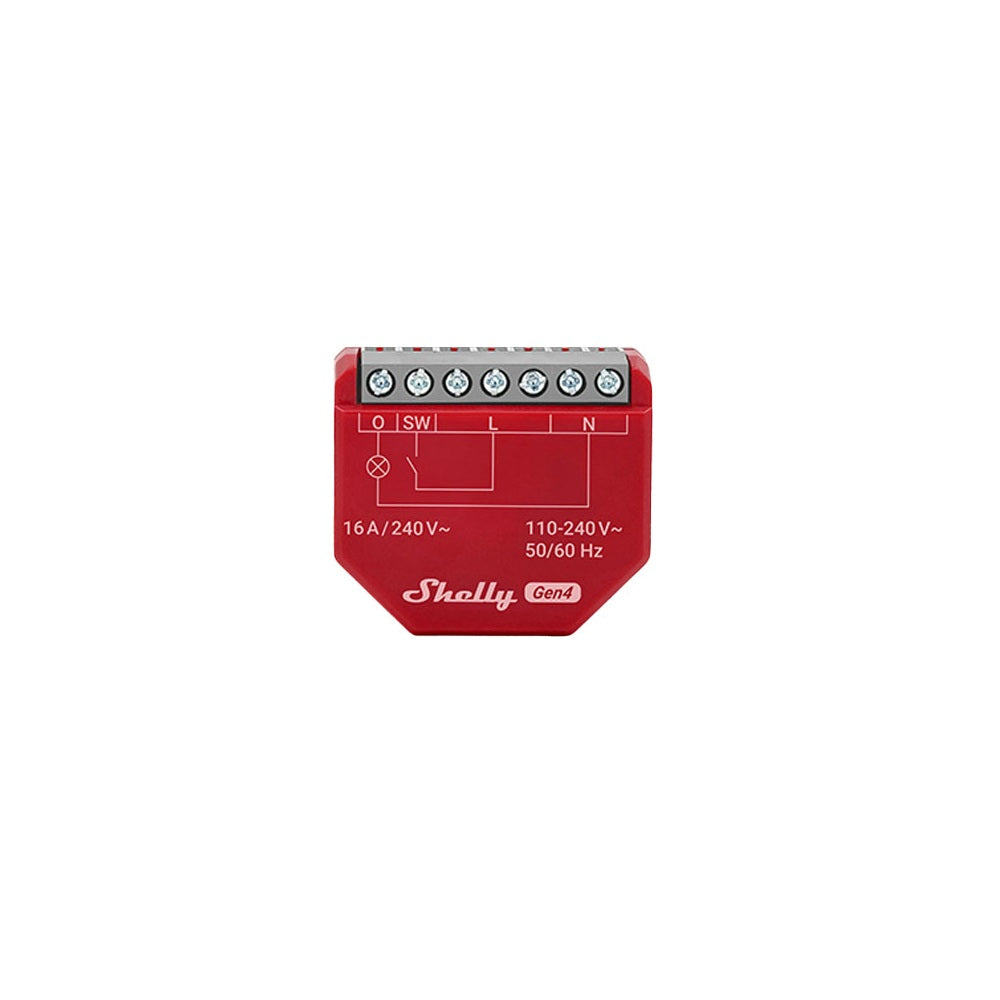

Shelly 1PM Gen4
Shelly 1PM Gen4
Couldn't load pickup availability
Typically used for:
- Lights
- Heating & Cooling
- Appliances
- Any Electrical Appliances
Upgrade your home and office with the Shelly 1PM Gen4, a small form factor smart switch with power measurement. Control electric appliances remotely using your mobile phone, tablet, PC, or home automation system. Shelly 1PM Gen4 offers Wi-Fi, Bluetooth, Zigbee, and Matter connectivity. Monitor energy consumption and automate your space for greater efficiency.
Control your devices directly from your smartphone or tablet using the intuitive mobile app. Connect Shelly 1PM Gen4 to your Wi-Fi network for easy home management and energy monitoring.
Shelly 1PM Gen4 can be retrofitted into standard electrical wall boxes, behind power sockets and light switches, or other places with limited space.
Key Features:
- Power Measurement: Track energy consumption of connected devices.
- Multi-protocol connectivity: Wi-Fi, Bluetooth, Zigbee, and Matter
- Matter certified: Integrates into any Matter ecosystem
- Works with Apple HomeKit: Control connected devices using Apple Home app or Siri
- Wi-Fi/Zigbee extender & Bluetooth gateway
Price
Single $XX.XX
Specifications
|
Physical |
|
|
Size (HxWxD): |
37x42x16 mm / 1.46x1.65x0.63 inch |
|
Weight: |
27 g / 0.95 oz |
|
Mounting: |
Wall console |
|
Shell material: |
Plastic |
|
Shell color: |
Red |
|
Terminals color: |
Grey (Mouse Grey) |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
|
Electrical |
|
|
Power supply: |
110-240 V~. 24-30 V⎓ |
|
Power consumption: |
< 1 W |
|
Neutral not needed: |
No |
|
External protection: |
Cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3) |
|
Output circuits ratings |
|
|
Max. switching voltage: |
240 V~. 30 V⎓ |
|
Max. switching current: |
16A (240 V~). 10A (30 V⎓) |
|
Sensors, meters |
|
|
Voltmeter (AC): |
Yes |
|
Radio |
|
|
Wi-Fi |
|
|
Protocol: |
802.11 b/g/n |
|
RF band: |
2412 - 2472 МHz |
|
Max. RF power: |
< 20 dBm |
|
Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
|
Bluetooth |
|
|
Protocol: |
5.0 |
|
RF band: |
2402 - 2480 MHz |
|
Max. RF power: |
< 4 dBm |
|
Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
|
Zigbee |
|
|
Protocol: |
802.15.4 |
|
Zigbee repeater: |
Yes |
|
RF bands: |
2400 to 2483.5 MHz |
|
Max. RF power: |
< 20 dBm |
|
Range: |
Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions) |
|
Microcontroller unit |
|
|
CPU: |
ESP-Shelly-C68F |
Max Load is the Maximum rated Load and it is not recommended that this device is used for anything more than short duration at or near the Maximum.
Higher loads require sufficient allowance for excess heat.
Australia and New Zealand Safety Standard (AS/NZS) compliant. SDoCs are available upon request for declared articles sold by Lykalyte. Some components and non-declared products may not require SDoCs under NZ regulations.
