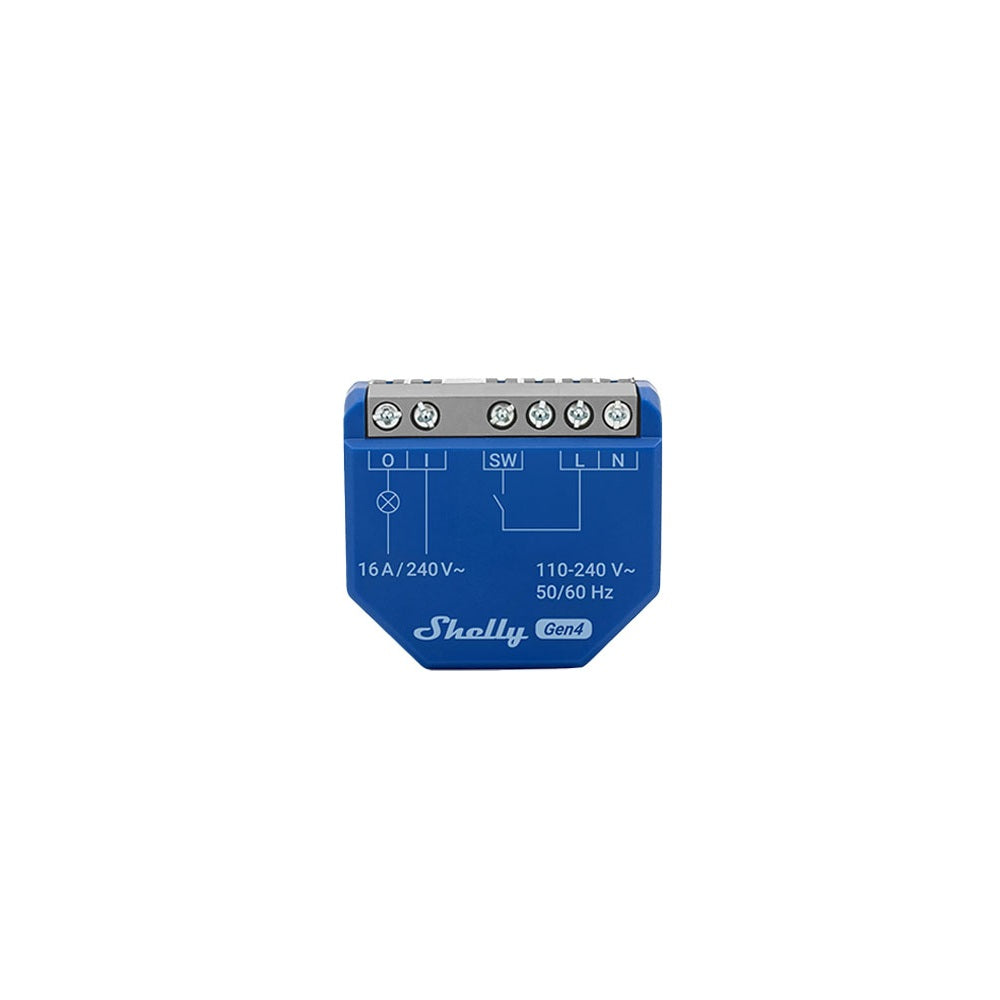

Shelly 1 Gen4
Shelly 1 Gen4
Couldn't load pickup availability
Typically used for:
- Lights
- Heating & Cooling
- Appliances
- Doorbell
- Irrigation
- Garage Doors / Security Gates
Upgrade your home and office with the Shelly 1 Gen4, a multi-protocol smart switch. Control electric appliances remotely using your mobile phone, tablet, PC, or home automation system. Shelly 1 Gen4 offers Wi-Fi, Bluetooth, Zigbee, and Matter connectivity for a smarter, more efficient space. Its versatility makes it perfect for a variety of automation projects.
Control your devices directly from your smartphone or tablet using the intuitive mobile app. Simply connect the Shelly 1 Gen4 to your Wi-Fi network for easy home management from your phone.
Shelly 1 Gen4 can be retrofitted into standard electrical wall boxes, behind power sockets and light switches, or other places with limited space.
Key Features:
- Multi-protocol connectivity: Wi-Fi, Bluetooth, Zigbee, and Matter
- Matter certified: Integrates into any Matter ecosystem
- Works with Apple HomeKit: Control connected devices using Apple Home app or Siri
- Wi-Fi/Zigbee extender & Bluetooth gateway
- Dry contacts: Use it to control a wide range of devices and appliances
Price
Single $58.99
Specifications
|
Physical |
|
|
Size (HxWxD): |
37x42x16 mm / 1.46x1.65x0.63 in |
|
Weight: |
26 g / 0.92 oz |
|
Mounting: |
In-wall console |
|
Screw terminals max torque: |
0.4 Nm |
|
Conductor cross section: |
0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
|
Conductor stripped length: |
6 to 7 mm / 0.24 to 0.28 in |
|
Shell material: |
Plastic |
|
Shell color: |
Blue |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 m / 6562 ft |
|
Electrical |
|
|
Power supply AC: |
110 - 240 V, 50/60 Hz |
|
Power supply DC: |
12 V ⎓, 24-48 V ⎓ |
|
Power consumption: |
< 1 W |
|
Output circuits ratings |
|
|
Max. switching voltage AC: |
240 V |
|
Max. switching voltage DC: |
30 V |
|
Max. switching current AC: |
16 A |
|
Max. switching current DC: |
10 A |
|
Radio |
|
|
Wi-Fi |
|
|
Protocol: |
802.11 b/g/n |
|
RF band: |
2412 - 2472 MHz |
|
Max. RF power: |
< 20 dBm |
|
Range: |
Up to 50 m / 160 ft outdoors and 30 m / 100 ft indoors (depending on local conditions) |
|
Bluetooth |
|
|
Protocol: |
4.2 |
|
RF band: |
2402 - 2480 MHz |
|
Max. RF power: |
< 10 dBm |
|
Range: |
Up to 30 m / 100 ft outdoors and 10 m / 33 ft indoors (depending on local conditions) |
|
Zigbee |
|
|
Protocol: |
802.15.4 |
|
Zigbee Repeater: |
Yes |
|
RF band: |
2400 - 2483.5 MHz |
|
Max. RF power: |
< 20 dBm |
|
Range: |
Up to 100 m / 328 ft outdoors and 30 m / 100 ft indoors (depending on local conditions) |
|
Microcontroller unit |
|
|
CPU: |
ESP-Shelly-C68F |
|
Flash: |
8 MB |
|
Firmware capabilities |
|
|
Webhooks (URL actions): |
Up to 20 |
|
Scripting: |
mJS |
|
MQTT: |
Yes |
Max Load is the Maximum rated Load and it is not recommended that this device is used for anything more than short duration at or near the Maximum.
Higher loads require sufficient allowance for excess heat.
Australia and New Zealand Safety Standard (AS/NZS) compliant. SDoCs are available upon request for declared articles sold by Lykalyte. Some components and non-declared products may not require SDoCs under NZ regulations.
