RC Snubber - Inductive Loads

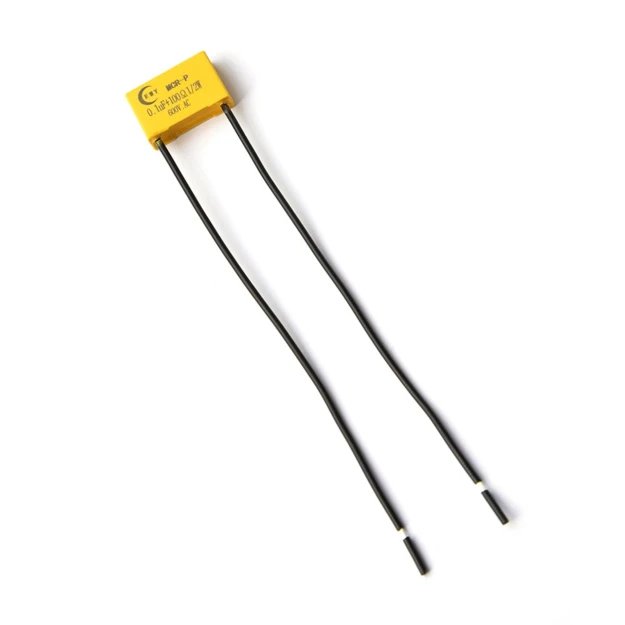

An RC Snubber is a Resistor Capacitor device used to suppress voltage spikes when a switch, electrical or mechanical, opens or closes. These voltage spikes can affect electronic components and reduce the lifespan of electrical devices. RC snubbers are ideal for including with inductive loads such as fans, motors, and rollers. These inductive loads often cause voltage spikes during power on, making the RC snubber an essential component for protecting your devices.

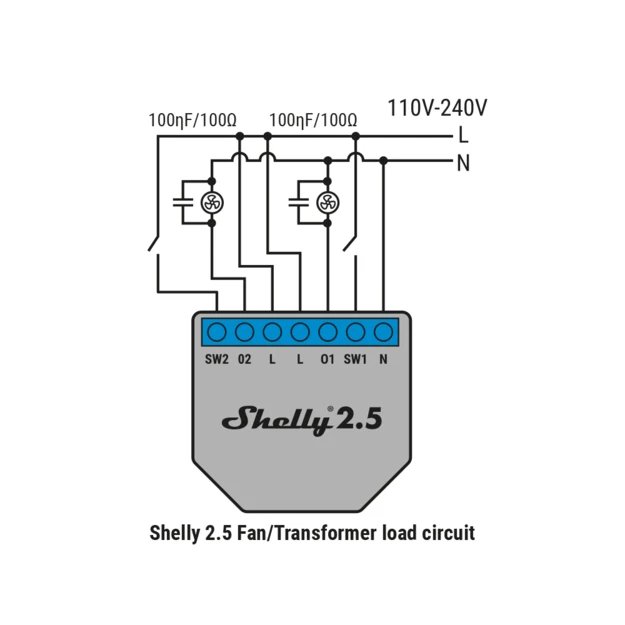

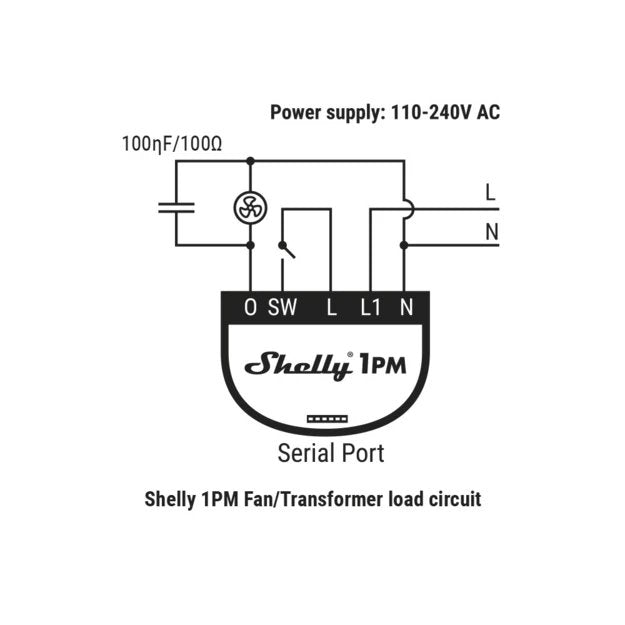

The RC snubber should be wired between the Output and Neutral of the circuit. Ideally, it should be placed at the load or device to be most effective, but it can also be installed at the relay. By doing so, the RC snubber helps to ensure the smooth operation of your electrical system, preventing unwanted interruptions and potential damage.

Using an RC snubber enhances the reliability of your electrical setup and extends the life of your devices. This small investment can save you from costly repairs and replacements in the long run. Whether you’re dealing with household appliances or industrial equipment, incorporating an RC snubber into your circuit design is a smart move for maintaining optimal performance and safety.

By understanding the importance of RC snubbers and how to properly install them, you can protect your electrical devices from voltage spikes and ensure a longer, more reliable service life. RC snubbers offer a robust solution for managing inductive loads efficiently and effectively.
