Ogemray 25A Smart Switch
Ogemray 25A Smart Switch
Couldn't load pickup availability
Shelly OGEMRAY 25A Smart Switch
Typically used for:
- Controlling high-load appliances (water heaters, boilers, heavy HVAC, ovens)
- Smart automation and monitoring of industrial machinery and equipment
- Optimizing energy consumption on dedicated circuits
The Shelly OGEMRAY 25A Smart Switch is a high-power switch with integrated power measurement, designed to safely control large electrical loads up to **25A / 6000W**. Powered by Shelly technology, this relay offers full smart home capabilities, including real-time energy monitoring, overvoltage protection with auto-recovery, and overpower protection.
It's ideal for both residential and light industrial applications where reliable switching of heavy-duty circuits is required. With Wi-Fi and Bluetooth connectivity, it integrates seamlessly into the Shelly ecosystem and supports a vast array of open protocols, eliminating the need for a separate smart home hub.
Key Features:
-
High Current Capacity: Supports 1 output up to 25A / 6000W, perfect for heavy-duty appliances and circuits.
-
Integrated Power Metering: Monitors energy consumption in real-time, helping to optimize usage and reduce costs.
-
Advanced Protection: Includes overvoltage (with auto-recovery) and overpower protection for safety.
-
Wireless Connectivity: Operates via Wi-Fi and Bluetooth, requiring no separate hub.
-
Full Shelly Functionality: Equipped with a Shelly chip, supporting scripting, smart schedules, webhooks, MQTT, and KNXnet/IP.

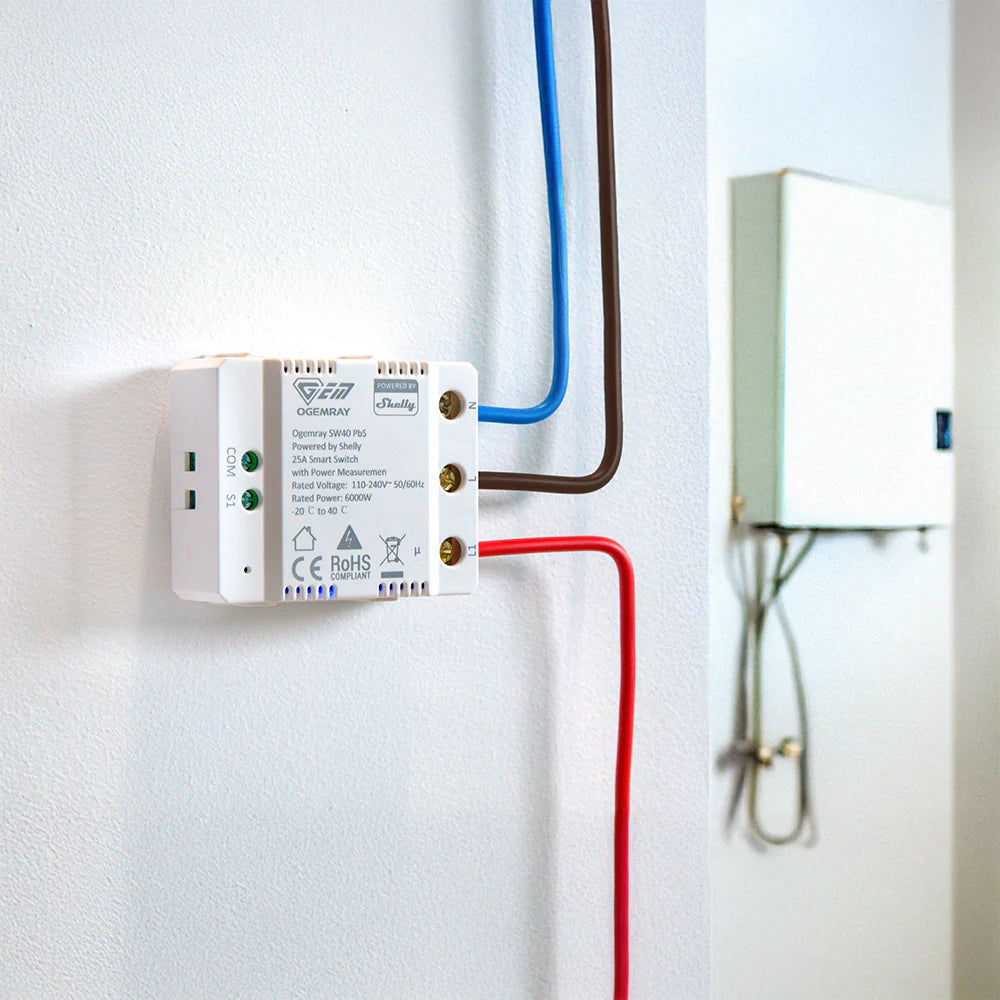

- Easy Installation: Features large terminals for robust wiring and a compact form factor for mounting in control panels or wall boxes.
Specifications
|
Physical |
|
|
Size (H x W x D): |
Height: 6.0 (cm) Width: 5.24 (cm) Depth: 2.4 (cm) |
|
Weight: |
0.052 (kg) |
|
Mounting: |
Wall box, control panel, or appliance installation |
|
Electrical |
|
|
Power supply: |
110-240 V~ 50/60Hz AC |
|
Power consumption: |
< 1.2 W |
|
Max. switching current: |
25 A |
|
Max. load power: |
6000 W |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C |
|
Radio & Connectivity |
|
|
Wi-Fi |
|
|
Protocol: |
802.11 b/g/n |
|
Range: |
Up to 30 m indoors and 50 m outdoors |
|
Bluetooth |
|
|
Protocol: |
v4.0 / v5.0 (BLE) |
|
Range: |
Up to 10 m indoors and 30 m outdoors |
Higher loads require sufficient allowance for excess heat.
Australia and New Zealand Safety Standard (AS/NZS) compliant. SDoCs are available upon request for declared articles sold by Lykalyte. Some components and non-declared products may not require SDoCs under NZ regulations.
