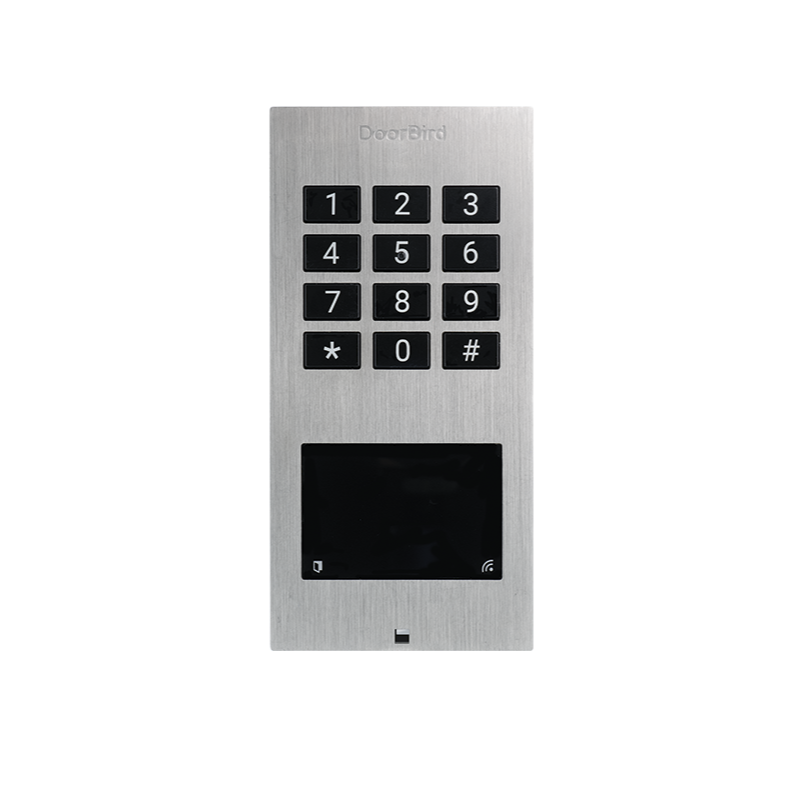

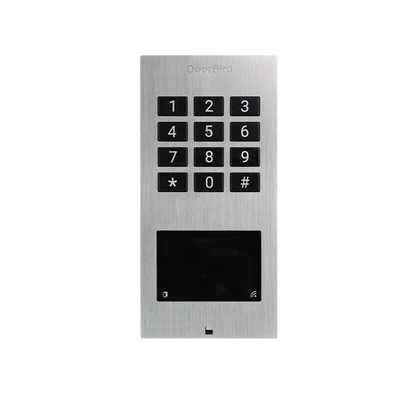

A1121 Surface-Mount IP Access Control Device (V2A Stainless Steel)

DoorBird A1121 Surface-Mount IP Access Control Device (V2A Stainless Steel)

Compact Multi-Technology Access Control for Any Entry Point.

The DoorBird A1121 Surface-Mount IP Access Control Device, featuring a sleek V2A brushed stainless steel front panel, is a compact yet powerful solution for managing access to various areas. Designed and Made in Germany, this multi-technology device combines a keypad, RFID reader (125 KHz & 13.56 MHz), and Bluetooth Low Energy (BLE) functionality, making it ideal for back and side doors, garages, storage rooms, bicycle rooms, machine rooms, or even elevator control where a video door station isn't required.

Flexible Access Options and Seamless Integration.

With the A1121, you can grant access using individual PIN codes (up to 500), RFID transponders (key fobs/cards), or potentially Bluetooth (with future updates). The illuminated 12-key keypad ensures visibility in unlit environments. Manage all permissions, schedules, and actions remotely via the intuitive DoorBird App or web-based administration tool. Equipped with two freely configurable bistable switching relays and a configurable Wiegand interface, the A1121 integrates effortlessly into existing access control, alarm, and smart home systems (Open API). Its integrated tamper sensor adds an extra layer of security, sending real-time alarms if the device is tampered with.

Key Advantages:

• Multi-Technology Access: Combines illuminated Keypad, 125 KHz & 13.56 MHz RFID reader, and Bluetooth Low Energy (BLE) for versatile entry.
• Standalone or Integrated: Functions as a robust standalone solution or integrates with existing access control and smart home systems via Open API and Wiegand.
• Secure & Configurable: Manage up to 500 individual PIN codes and RFID transponders with custom events and schedules via the DoorBird App.
• EU-Based Company & Data Protection: As a company based in Germany, DoorBird adheres to strict European Union data protection regulations, ensuring your privacy and data security are prioritized.
• Durable & Weatherproof: Made from 3mm solid V2A brushed stainless steel with an IP65 rating for outdoor and indoor installation (-25 to +55°C).
• Flexible Connectivity: Supports WiFi (2.4 GHz) and LAN connection with Power over Ethernet (PoE 802.3af Mode-A).
• Tamper Sensor: Integrated sensor detects unauthorized removal, enhancing security.
• Two Freely Configurable Relays: Control electric door/gate openers, lights, or other devices remotely.
• Easy Management: Conveniently configure all settings via the free DoorBird App or web interface.

Technical Highlights:

• Front Panel: 3 mm thick, Stainless steel V2A, brushed.
• Mounting: Surface-mounted (surface-mount housing included).
• Power Supply: 15 - 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A).
• Protection Class: IP65 (water and dust resistant), IK08 (impact resistant).
• Dimensions: Height: 128 (mm) Width: 62 (mm) Depth: 28 (mm)
• Weight: 250 (g)
• Operating Conditions: -25 to +55°C, 10 to 85% RH (non-condensing).

What's in the Box:

• 1x Main Electrical Unit with Front Panel

• 1x Wall Mounting Bracket

• 1x Power Supply Unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC)

• 1x RJ45 Adapter

• 1x Screwdriver

• 1x Quickstart Guide with Digital Passport

• 1x Installation Manual

• 1x Small Parts

Enhance your property's security and convenience with the DoorBird A1121 Surface-Mount IP Access Control Device.

*Custom Materials and Colours available on request at extra cost (usually allow an extra 7-10 days for delivery, but can be up to 30 days for powder coatings)
