A1061W Door Chime

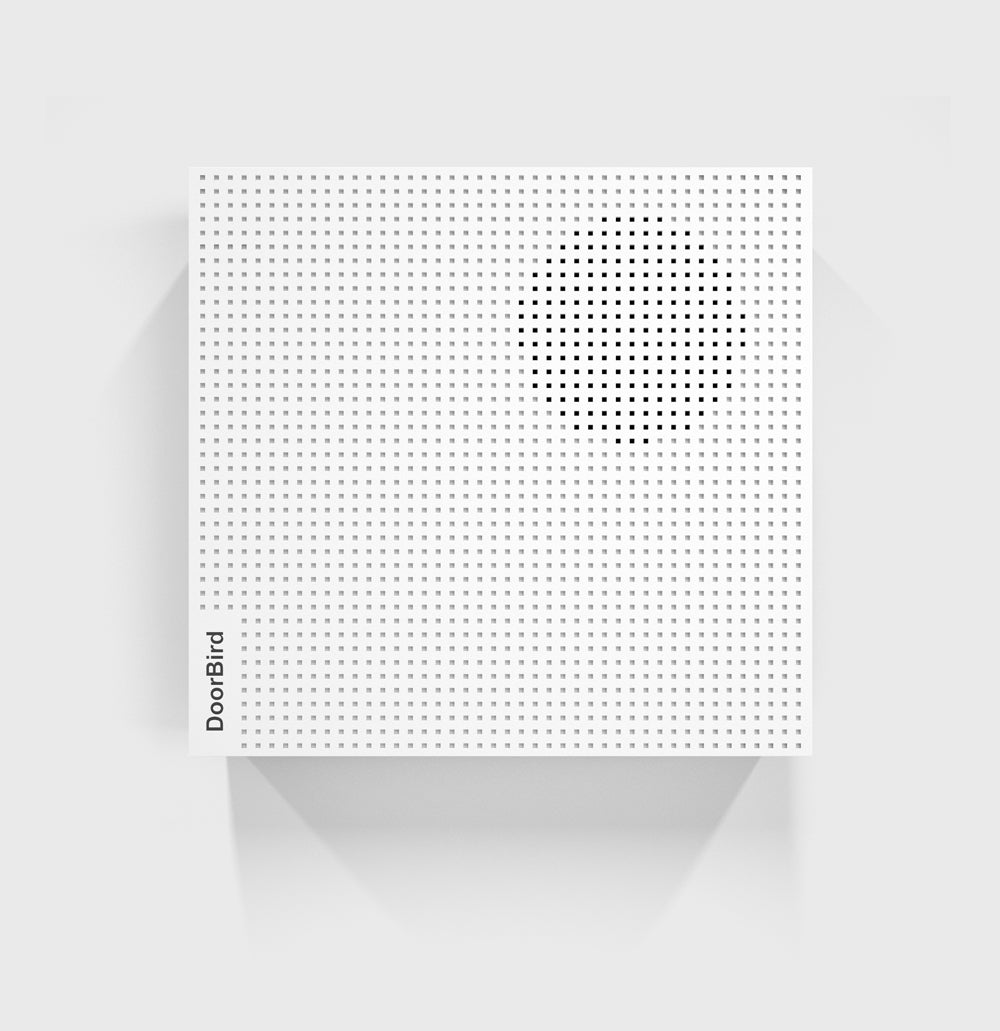

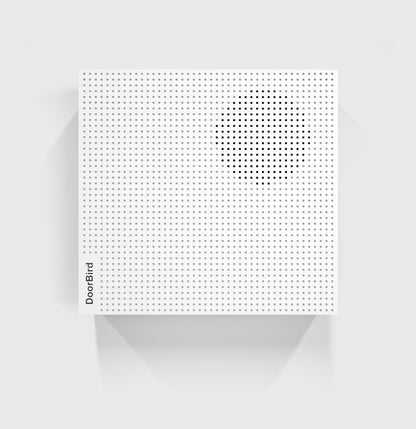

DoorBird IP Door Chime A1061W (White Edition)

The Smart Chime for Your DoorBird Intercom System.

The DoorBird IP Door Chime A1061W in White Edition is an essential and aesthetically pleasing addition to any DoorBird IP video door station. Designed and Made in Germany, this versatile chime seamlessly integrates into your home, offering a discrete yet powerful audio alert for visitors. Its modern design allows for flexible installation on walls or ceilings, blending effortlessly with your interior.

Hear Your Doorbell Anywhere, Anytime.

Connect the A1061W to your local network via WiFi or Ethernet (PoE capable) for reliable performance both online and offline. With over 50 selectable ringtones, you can customize your alerts and even assign different tones for the front door and a storey-call option, ensuring you always know where a visitor is calling from. Set time slots or activate a "Do Not Disturb" mode for quiet periods. The chime boasts an impressive 102 dB loudspeaker, ensuring it's easy to hear throughout your home with an unlimited range.

Key Advantages:

• Wireless & Wired Connectivity: Connects via WiFi (2.4 GHz) or LAN (PoE capable) for flexible installation.
• 50+ Ringtones: Choose from a wide variety of melodies to personalize your chime.
• Front Door & Storey-Call Option: Supports distinct ringtones for main entrance and apartment/storey calls with optional wired connection.
• Online & Offline Operation: Functions reliably even if your internet connection is temporarily down.
• Unlimited Range: Hear your doorbell from anywhere in your home or property.
• App Configurable: Adjust volume, set time slots, and manage "Do Not Disturb" mode directly via the DoorBird App.
• Discrete Design: Easy to hear with a powerful 102 dB loudspeaker, yet designed to blend aesthetically into your interior.
• EU-Based Company & Data Protection: As a company based in Germany, DoorBird adheres to strict European Union data protection regulations, ensuring your privacy and data security are prioritized.
• Compatibility: Ideal complement to all DoorBird IP Video Door Stations, supporting an unlimited number of chimes per door station and vice-versa.

Technical Highlights:

• Housing: Polycarbonate, UV-resistant.
• Loudspeaker: 102 dB.
• Power Supply: 15 V DC or Power over Ethernet (PoE 802.3af Mode-A).
• Operating Conditions: 0 to +55°C, 10 to 85% RH (non-condensing).
• Connectors: 1x RJ45 jack, 4 screw terminals.
• Approvals: CE, FCC, IC, RoHS, IP50.
• Dimensions: Height: 125 (mm) Width: 119 (mm)Depth: 26 (mm)
• Weight: 200 (g)

What's in the Box:

• 1x IP Door Chime
• 1x Network Cable
• 1x Power Supply Unit (mains adaptor) with up to four country-specific adaptors (100 - 240 V AC to 15 V DC)
• 1x Small Parts
• 1x Installation Manual
