5-Terminal Add-on (Accessory for The Pill by Shelly)

Typically used for:

• Connecting Temperature & Humidity Sensors
• Dry Contact & Pulse Counting Inputs
• Analog Voltage Monitoring
• Low-Voltage Actuator & Signal Bridging

Unlock the full hardware potential of The Pill by Shelly with this plug-and-play expansion interface. By converting the Micro USB accessory port on The Pill into a versatile 5-terminal pluggable terminal block, this add-on gives you direct access to logic-level I/Os, analog inputs, and peripheral power lines. Perfect for custom DIY integrations, it provides a clean, secure wiring point for specialized low-voltage sensors and custom electronics.

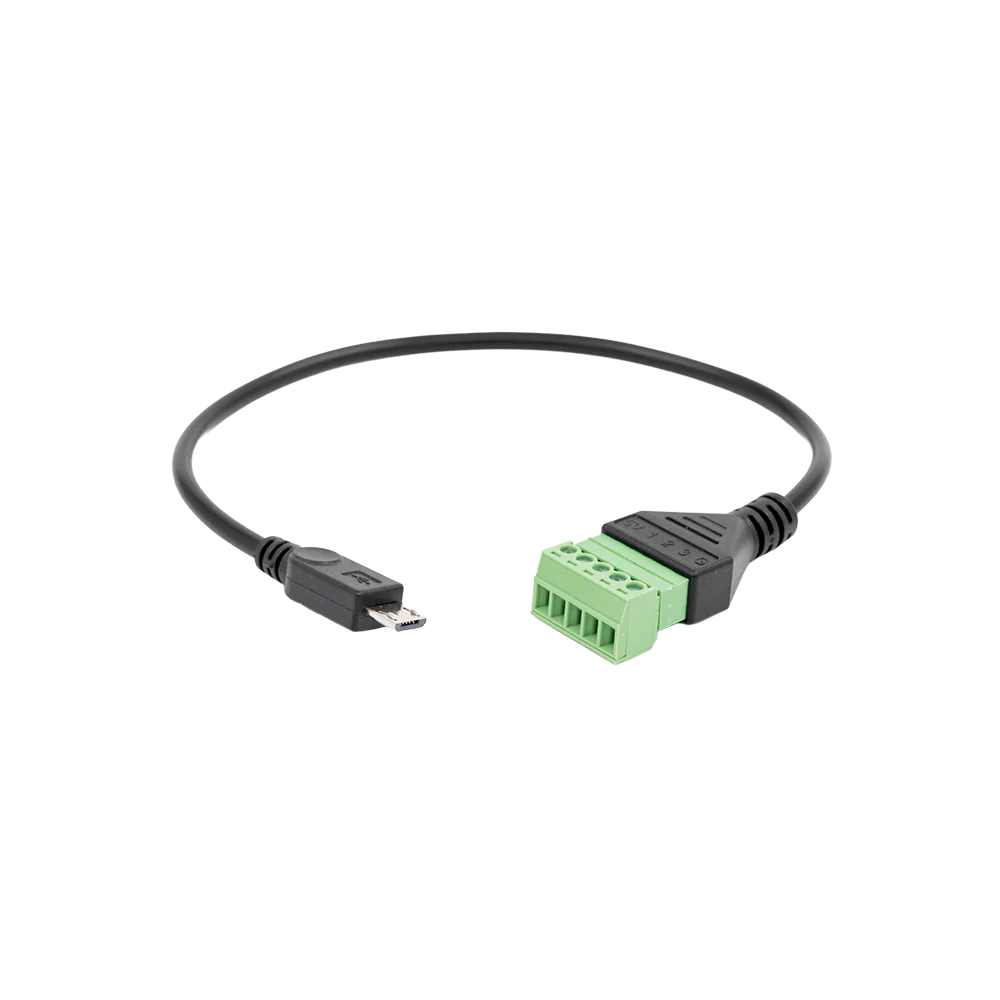

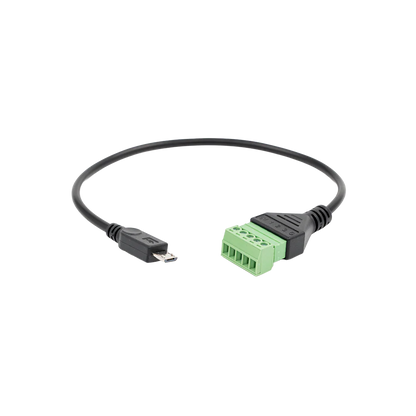

Simply plug the micro USB connector into your device to expand your monitoring capabilities without complex breadboarding or soldering. The generous 240 mm trailing cable ensures easy and clean routing inside custom enclosures, server racks, or compact project boxes.

Key Features:

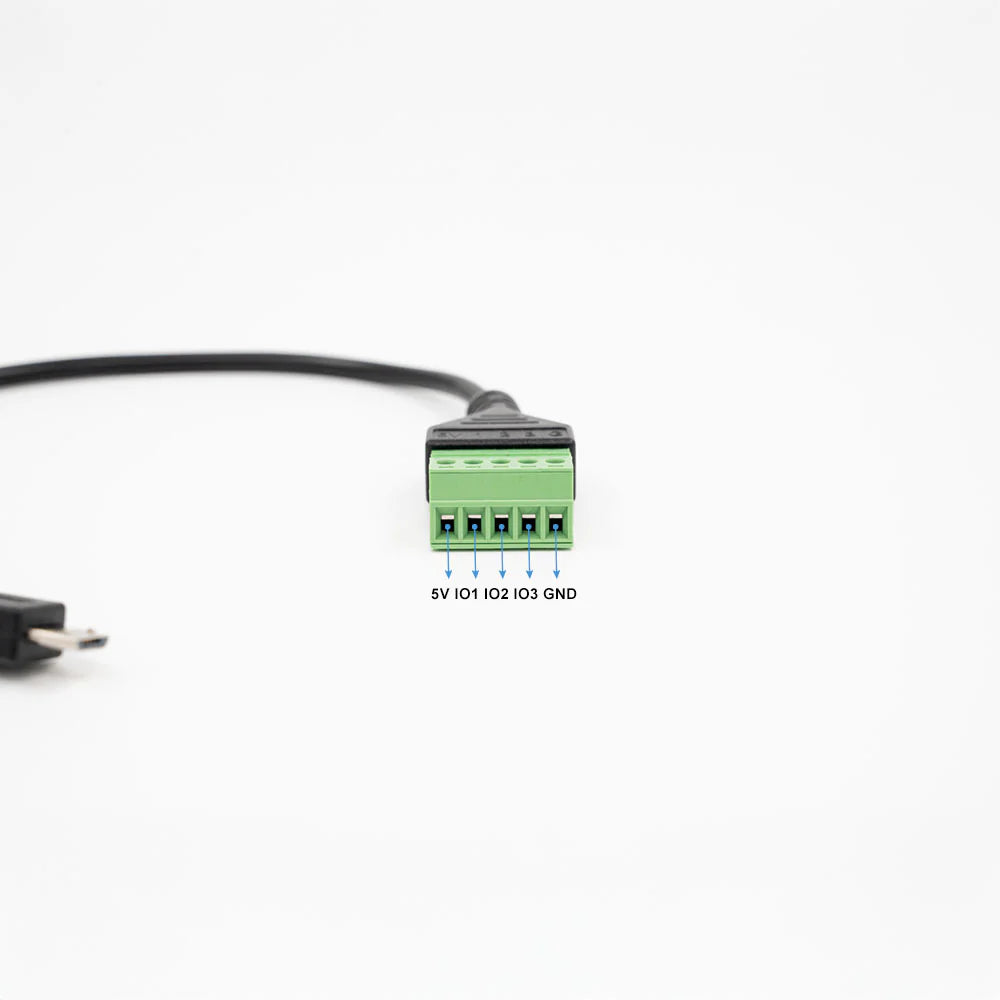

• Pluggable Breakout Design: Exposes power, ground, and three flexible signal pins via a secure screw-terminal header.
• Multi-Sensor Support: Wire digital DS18B20 multi-probe sensors or a DHT22 climate sensor directly to your ecosystem.
• Configurable I/O Interface: Access up to three independent 3.3 V logic-level pins tailored to your automation rules.
• Integrated Power Output: Provides dedicated 5 V and GND terminals directly from the base module to power external peripherals.
• High-Precision Analog Access: Accesses the built-in 0 to 2.5 V DC analog input line (via IO1) for voltage-based sensors.

Specifications

Designed strictly for low-voltage sensor monitoring interfaces. Never connect high-voltage AC mains wiring to this accessory block or its terminals.

Australia and New Zealand Safety Standard (AS/NZS) compliant. SDoCs are available upon request for declared articles sold by Lykalyte. Some components and non-declared products may not require SDoCs under NZ regulations.
