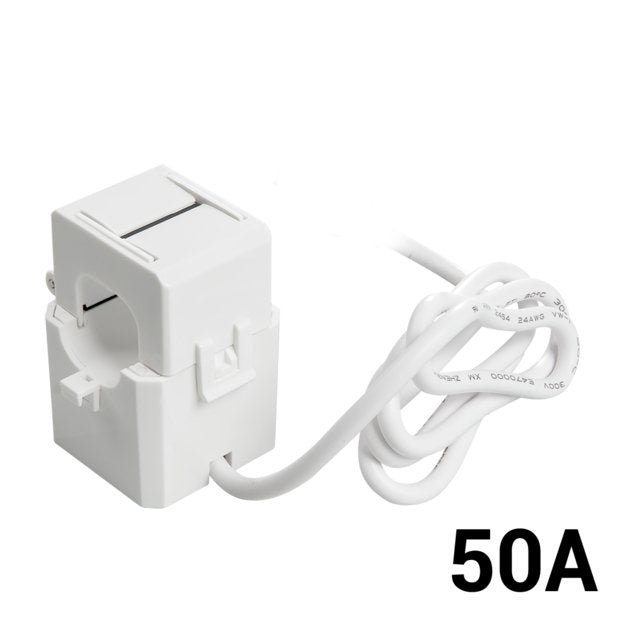

Shelly 50A current transformer clamp

Shelly 50A current transformer clamp

$38.99
$38.99
Sale Sold out
Taxes included. Shipping calculated at checkout.

Shelly current transformers (CTs) convert large currents into small, standardized values for precise measurement. They deliver a secondary current that is accurately proportional to the primary current, ensuring reliable data. These transformers impose a minimal load on the primary circuit, optimizing efficiency and performance. Perfect for accurate monitoring and control in various applications.

The length of the CT clamp's cables is 60 cm.

*NOT compatible with Shelly Pro 3EM

Specifications
CURRENT TRANSFORMER 50A
Accuracy 1%
Core Ferrite core
Electrical Strength 3000VAC 1mA60s
Internal diameter 11mm
Cable length 60cm
Load Resistance 20Ω
Rated Primary Current 50A
Rated Secondary Current 16.67mA
Saturation current ≥85A
Size 23,5mm x 41,5mm x 26mm
CURRENT TRANSFORMER 120A
Accuracy 1%
Core Ferrite core
Electrical Strength 3000VAC 1mA60s
Internal diameter 17mm
Load Resistance 20Ω
Rated Primary Current 120A
Rated Secondary Current 40mA
Saturation current ≥120A
Size 31mm x 45mm x 30mm
FEATURES
Compatible 50A Shelly EM
Compatible 120A Shelly EM, Shelly 3EM
